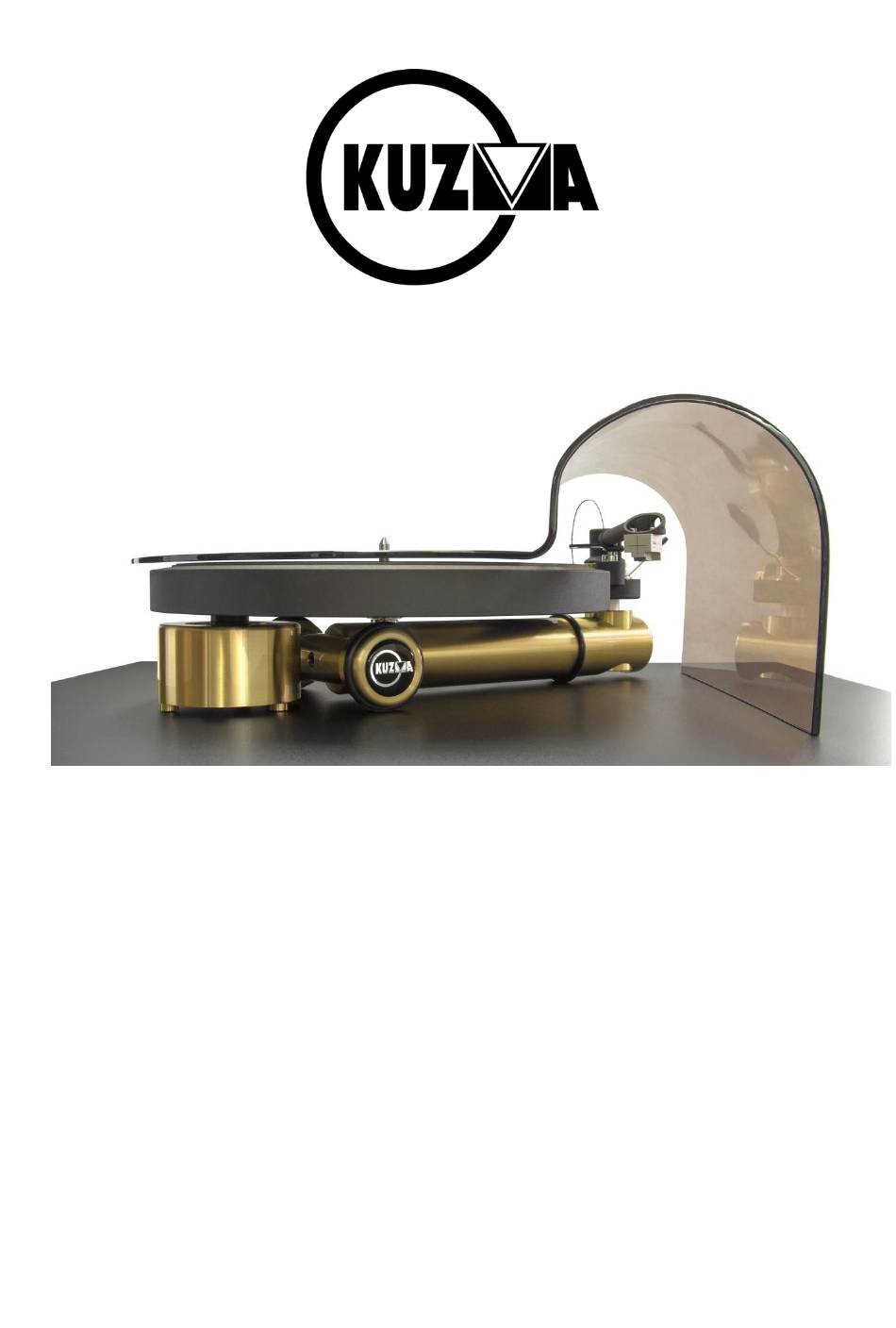

KUZMA STABI S PS AC TURNTABLE
(on photo with Stogi S tonearm and CAR)........
Instruction manual
2021-04
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STABI S PS AC and is the answer not in the manual?

Questions and answers

Related Manuals for Kuzma STABI S PS AC

Summary of Contents for Kuzma STABI S PS AC

  • Page 1 KUZMA STABI S PS AC TURNTABLE (on photo with Stogi S tonearm and CAR)…….. Instruction manual 2021-04...

  • Page 2: Table Of Contents

    KUZMA LTD INSTRUCTION MANUAL FOR STABI S PS AC turntable The Stabi S PS AC turntable is a very precisely engineered piece of equipment. The construction, however, is robust and requires little maintenance for optimal performance. Fig.1. Stabi S with Stogi S tonearm and CAR cartridge...
  • Page 3 Product registration and warranty extension: Kuzma products has a non transferable 2 year limited warranty on parts and labour varied by dealer/distributor in specific country. To achieve 5 years* limited warranty from us, you need to register product on our web site within 30 days of purchase.

  • Page 4: Unpacking

    Unpacking: The whole turntable with tonearm (if supplied) is packed in one box. Before unpacking the individual parts of the turntable, prepare the area where the unit will be situated. The best position is on a solid shelf which is strong and rigid enough to support the turntable. For best performance this should be completely horizontal.

  • Page 5: Basic Setup

    Basic setup: Note: Carefully unpack parts which are in protective plastic bags. Note: When assembling the motor tower and platter, ensure that the platter will not touch or damage the motor pulley! Check the distance of the motor tower from the T base. Note: While the parts are packed in plastic bags for protection, these are not intended to be strong enough to lift or carry the parts.

  • Page 6: Turntable Setup

    Belt: Place the belt over the subplatter and over the motor pulley. Check by manual rotation that the belt runs smoothly in the middle of the motor pulley groove. Platter: Remove the platter ( Fig. 4 ) from its protective bag. Place the platter carefully on top of the subplatter.

  • Page 7: Use And Adjustment

    Remove the brass pillar and find underneath two threaded holes. Find the circular brass armbase (optional) with appropriate cutout. Using Allen key ( 3 mm) and two screws fit this onto the pillar. Insert back into T base and, with tonearm protractor, position the brass plate correctly by rotating the brass pillar while releasing the VTA screw with Allen key (3mm).

  • Page 8: Maintenance

    PS AC factory reset: If you find out that your speed selection is out of range for some reason or on display are unusual signs you should reset PS to factory set outputs. Turn the power off, wait 10 sec, press and hold the speed button and then press the power on. When the display shows CU, release the speed button.

  • Page 9: Transportation

    Platter not rotating: Power supply - check if the red LED is on - green displays shows 33 or 45, if not re-plug PS - check connection cables from PS to motor - belt position Consult dealer or qualified electrician if problem persist. Very slow start: -Check motor position- belt tension.
  • Page 10 Adding second tonearm adaptor or 12 inch version tonearm adaptors are available. Fug. 8 Second tonearm SD kit Kuzma Ltd Hotemaze 17A SI-4205 PREDDVOR SLOVENIJA P: + 386 4 25 35 450 F: +386 4 25 35 454 E mail: kuzmaltd@siol.net...
