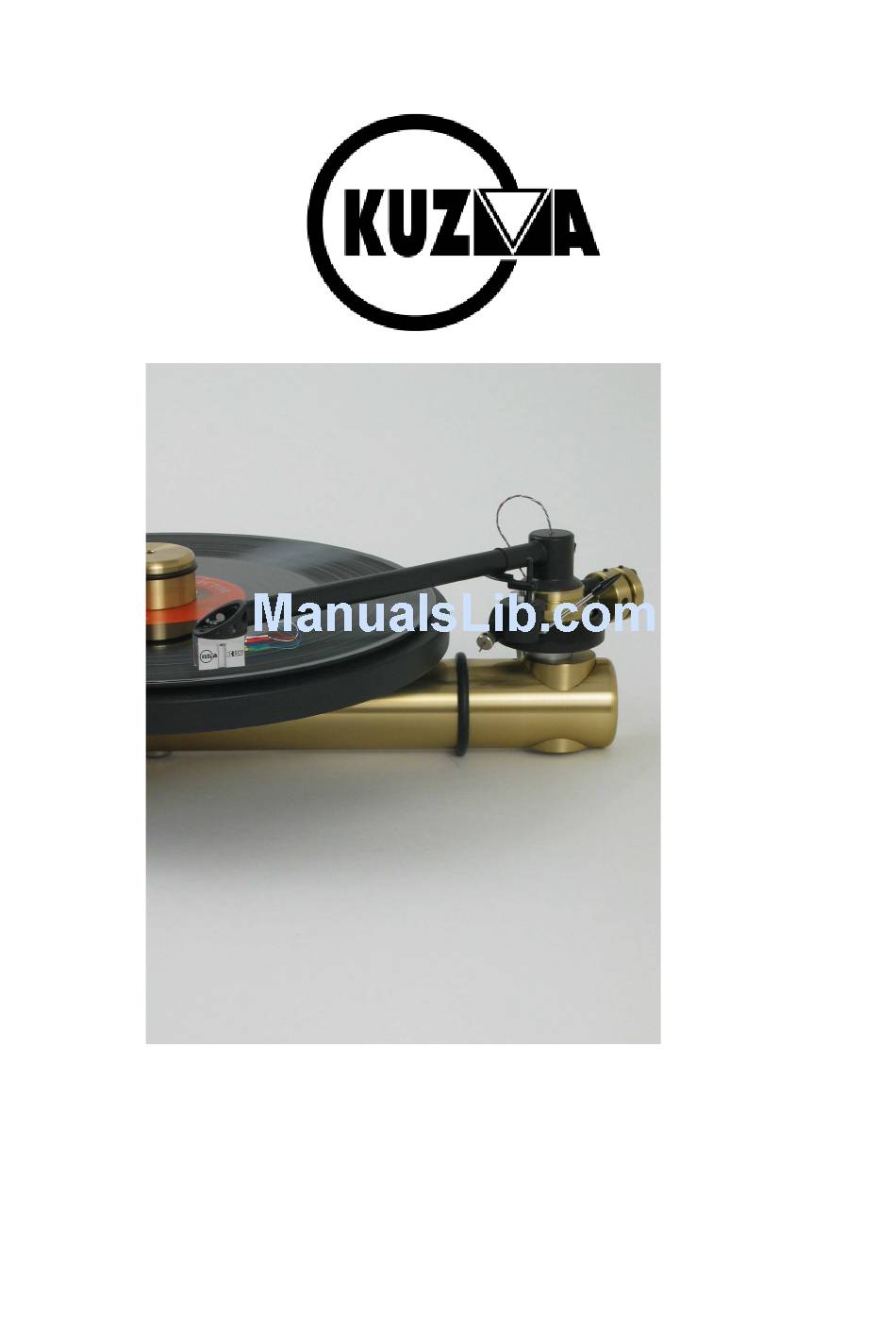

- Page 1 KUZMA STOGI S TONEARM ( with turntable and cartridge) S/N…….. Instruction manual 2010-9...
-
Page 2: Table Of Contents
KUZMA LTD INSTRUCTION MANUAL FOR STOGI S tonearm The Stogi S tonearm is a very precisely engineered piece of equipment. The construction, however, is robust and requires the minimum of maintenance for optimal performance. Azimuth screw Arm pillar CONTENTS: Page... -
Page 3: General
General Description: the tonearm is packed in one box with serial number and type of wiring marked on the outside The tonearm is of a unipivot design with a unique, rigid headshell made from a solid aluminium block and a base of solid brass which, together, control all vibration as well as facilitating the stability of the tonearm as a whole. -
Page 4: Unpacking
Unpacking: The tonearm with accessories is packed in one box. Before unpacking the individual parts of the tonearm, make some space and check that your turntable has the right tonearm cutout. Content: Bearing base,tube base, PVC bottle with silicone oil, Allen keys: 1.5, 2, and 3 mm, cartridge mounting hex screws M2.5 mm non magnetic, geometry protractor. -
Page 5: Basic Setup
Basic setup: Note: When mounting the tonearm on Stabi S turntable no armbase is required. Check the turntable instruction manual to see how to mount the tonearm and then skip to 'Bearing base' section of these instructions. Note: When mounting Stogi S on other turntables, an armbase with an appropriate cutout is required. - Page 6 Bearing cup Oil level-groove Cable holder Turntable Stabi S fixing screws Stabi S VTA adjustment screw The bearing base with cable holder in its brass pillar on Stabi S. Fig. 2 Tube base: Carefully lift the tube base with counterweights and cable which, (for transport only) is fixed at the end of the tube.
-
Page 7: Cartridge Set Up
Cartridge mounting: Locate the hex screws for fixing the cartridge, or use screws supplied with the cartridge. Fix the cartridge under the headshell in such a position that the tip of the diamond is at the furthest point of the headshell. With tweezers or other appropriate tool, (if using pliers be aware that strong force can break the wires under the insulation material) connect pins according colours: right +... - Page 8 In addition put 1-2 drops of fluid into the cup on top of the bearing shaft. The level of damping is chosen to suit the best cartridges available but you should experiment, especially with cheaper MM cartridges. Bias adjustment: Catch the string loop onto the hook which is at the back of the tube base. Be sure that the string runs in the groove.
-
Page 9: Mainentance 10
If necessary obtain a new bottle of silicone oil from your dealer. Kuzma Ltd Hotemaze 17A SI-4205 PREDDVOR...
