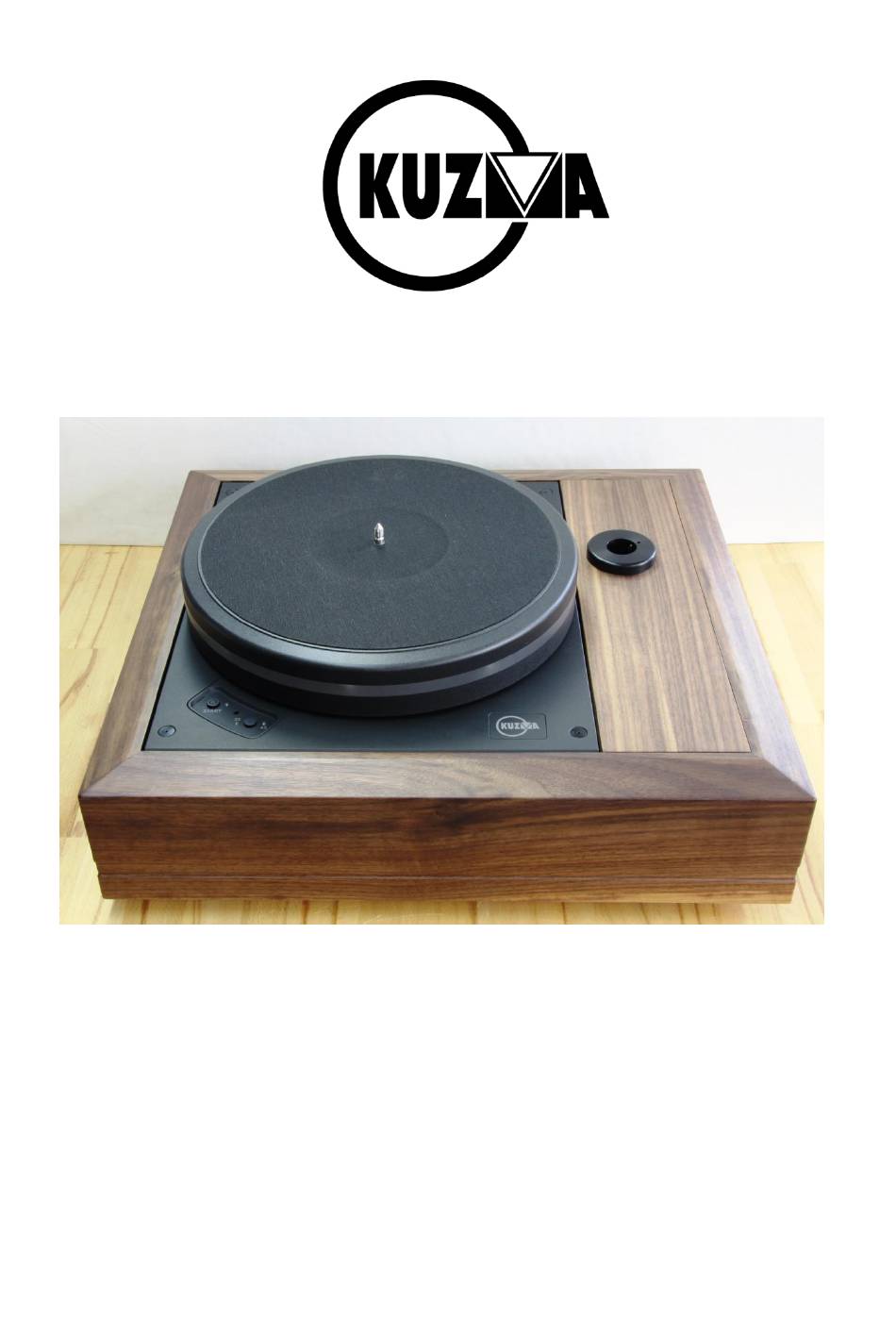

- Page 1 KUZMA STABI R WOOD FRAME ASSEMBLY- in the photo, a wooden frame fitted with Stabi R base turntable Instruction manual 2022-07...
- Page 2 Stabi R wooden frame-plinth is made from solid walnut and plywooda into which you can fit the Stabi R base turntable. The armboard block is supplied with the Kuzma 9 inch arm cut. The Stabi R plinth is supported on three fully adjustable metal feet.
- Page 3 Place Stabi R base with the top down. See Fig. 2. Over Stabi R base put plinth face down over the base. See Fig. 3. Check alignement of holes and manually fit three fixing screws M 6x40 and secure them by using Allen key 5mm.
- Page 4 Mount the arm as instructed in the tonearm instruction manual. The armboard block is fixed in the plinth. Under the arm cutout is hole with access underneath to fix the armbase. If required route the tonearm cable underneath. Fig. 5. Stabi R with plinth Maintenance Wood: Wipe with damp cloth or special tissues for oiled wood.
