Summary of Contents for Kuzma Kuzma Stabi Reference Turntable

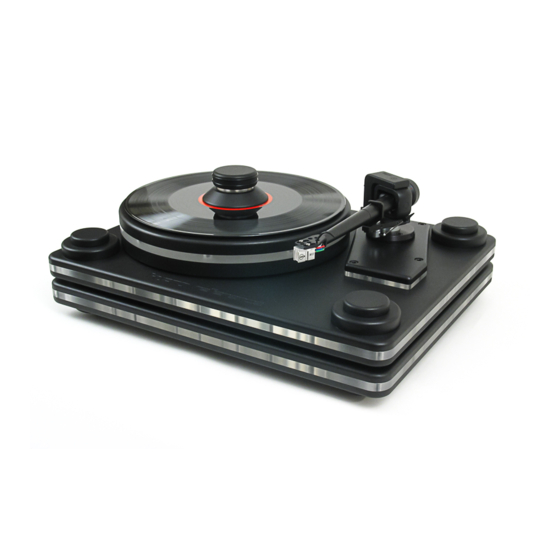

- Page 1 S T A B I R E F E R E N C E T U R N T A B L E instruction manual KAT d. o. o. Kuzma Audio Trade Hotemaže 17 a 4205 PREDDVOR SLOVENIA tel. 386 4 2535450 fax 386 4 2535454...
-
Page 2: Table Of Contents
ACCESSORIES II. UNPACKING III. ASSEMBLY Testing for correct assembly Mounting tonearm IV. ADJUSTMENT 1. Positioning turntable and power supply 2. Levelling of turntable 3. Fine speed adjustment V. USE OF CLAMP VI. GENERAL MAINTAINANCE VII. MINOR PROBLEMS 1. Immobile subchassis 2. -
Page 3: General Descrition
These both have their own oil bath. Two motors drive the platter via a flat belt. The turntable has its own power supply which enables motors to rotate with the minimum of vibration and constant torque. It is quartz controlled, split phase with internal 0.4 % speed adjustment. -
Page 4: Specifications
(non selectable) The following are supplied with the turntable and will be found in the accessories box: 1. Clamp with washer (plate) 2. Alan key 4 mm for tonearm board 3. Small plastic bottle with oil for bearing 4. -
Page 5: Unpacking
1. Open outer carton at the top (see vertical arrows) 2. Open inner carton (this has specifications on top). You may receive turntable in this box only. 3. Remove boxes: Box A - containing power supply, subplatter & accessories. Box B - containing subchassis (with bearing shaft) -
Page 6: Assembly
4 adjustment knobs so thar lowr edge of subchassis is level with markings on all towers. 9. The cable for connecting power supply and turntable has five pin plugs which should be inserted and locked into connectors at rear of power supply and turntable. -
Page 7: Testing For Correct Assembly
Testing for correct assembly 1. The subchassis should move a few mm in all directions if gently bounced. 2. Switch on to 33 rpm position at front panel. The red light will change to green and the platter should slowly start to rotate, obtaining full speed in 8 to 10 seconds. Initially some cracling noises may be heard. -
Page 8: Adjustment
When carrying turntables tilt of up to 15° should not cause any oil spillage. But due to the weight of turntable we suggest platter and belt be removed. If you lift up and remove subchassis as well then the silicon oil will be sealed, but not oil in bearings. -
Page 9: Use Of Clamp
The function of the clamp is to press the record close to the platter mat, thus minimising vibration between record and platter and decreasing warps of record itself. 1. position metal disc over spindle on top of mat. 2. place record on spindle. 3. -
Page 10: General Maintainance
3. Cleaning of mat: a. remove platter from turntable b. squeeze alcohol onto mat until whole surface is wet. c. with a toothbrush brush out from centre until alcohol evaporates. 4. Check oil in bearing: The level of oil is not so critical due the use of metal versus non metal sliding materials. -
Page 11: Minor Problems
VII. MINOR PROBLEMS If any problem occur with your turntable do not hesitate to contact your dealer. It may, however, he convenient to be able to make a few checks and adjustments yourself. 1. Immobile subchassis - check turntable has been unpacked correclty,... -
Page 12: Transport And Packing
VIII. TRANSPORT AND PACKING Preparing a functioning turntable for short transport. You may wish to transport your turntable for short distances in a car (preferably on a seat). In which case the following precautions should be taken: 1. remove platter and place it its box. Remove belt.
