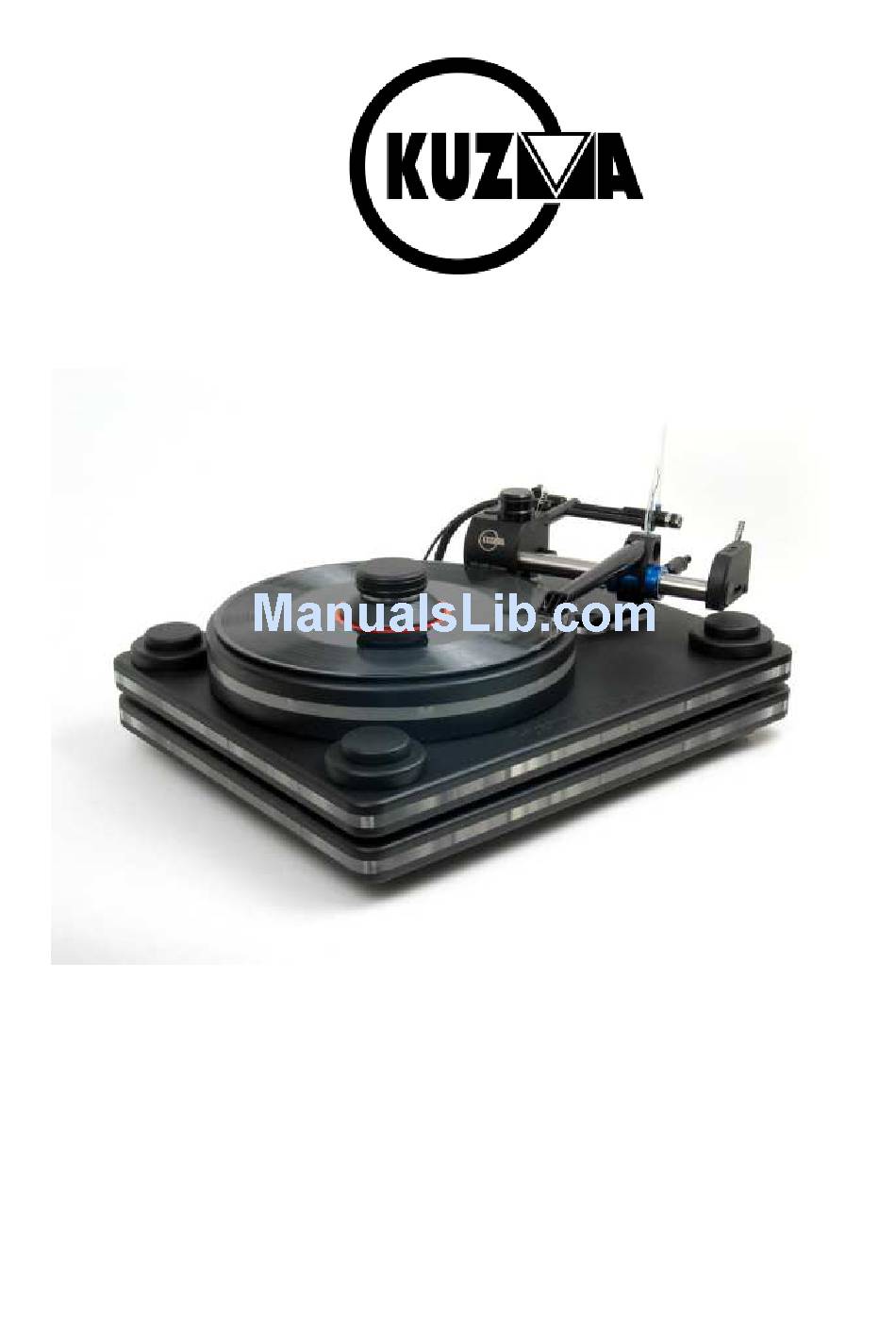

- Page 1 KUZMA STABI REF PS 2 TURNTABLE ( without arm ) S/N…….. Instruction manual 2010-10...
-
Page 2: Table Of Contents
KUZMA LTD INSTRUCTION MANUAL FOR STABI Ref 2 turntable The Stabi Reference 2 turntable is a very precisely engineered piece of equipment. However the construction is robust and requires minimal maintenance for optimal performance. It differes from Stabi Ref only in the use of different power supply called PS REF 2. -
Page 3: General
Each turntable is individually built and tested and made of the best available materials to ensure the highest possible standard of musical performance. The turntable is supplied with one predrilled armboard. Kuzma Stabi Reference turntable: Mass 40 kg External dimensions... -
Page 4: Unpacking
Unpackaging Contents: Stabi Ref is packed in a single main box. Inner box: platter, subplatter, PVC bottle with bearing oil, belt, armboard, motor controller, power cord and motor cable, Allen key 4 mm with 4 pcs screws for armboard, instruction manual, clamp with 2 washers. - Page 5 Base chassis Top subchassis: There are suspension adjustment knobs on four corners of the subchassis and in the middle is the shaft with a fixed ruby ball. Check the Note on page 4 regarding settling time for damping oil in the base chassis. Carefully position the subchassis above the base chassis and gently lower it onto the base chassis, ensuring that the motor pulleys fit into the holes in the subchassis.
-
Page 6: Setting Up Turntable
Platter: Position the platter on the subplatter, holding the platter with both hands at the sides. Due to the small gap between the lower edge of the platter and the top of the subchassis, do not hold the platter underneath. Hold it firmly, so it will not slip. Setting up the turntable Suspension adjustment: Adding or subtracting mass from the subchassis will affect its height above the base chassis. - Page 7 PS REF 2: Front panel General description: The AC motor controller unit generates a dual sine wave output to control rotation and speed of two AC synchronous motors. The signal is generated by a sophisticated computer based program. This allows for smooth generation of the sine wave with very fine choice of speed. Each speed can be selected, finely adjusted independently and then stored in the memory.
-
Page 8: Use And Adjustment
Mounting armboard and tonearm: Be sure that you have an armboard with the correct pre-cut. Mount armbase on the armboard and then mount armboard on the turntable with four Allen keys. Fix firmly. The armboard can be fixed in both directions, so be sure you mount it correctly orientated. If necessary a second cut can be made on the armboard, but this is made of aluminium. -
Page 9: Maintenance
It is advisable to put a washer under the LP (thin for thick records and thick for thin records) before screwing the clamp down. Observe the outer edge of the LP. To start with this edge will be above the mat but will slowly lower too touch the mat. Hold the LP so that it does not rotate. -
Page 10: Problems
Problems Platter not rotating: Motor controller unit- check if the red LED is on -green displays shows 33 or 45, if not re-plug MCU - check connection cables from MCU to motor Consult dealer or qualified electrician. Very slow start: Only one motor receives output from PS: MCU. -
Page 11: Transportation
3-4 hours in a horizontal position before use. All parts are heavy and can be easily damaged by sliding around a transport vehicle. Repacking in the original boxes is, therefore, recommended. Kuzma Ltd Hotemaze 17A SI-4205 PREDDVOR SLOVENIJA...
