Code number entry
Remove portable panel
Inserting portable panel
Switch on / off
Adjust volume
Mute function
Activate tone menu
Adjust bass
Adjust treble
Adjust balance
Fader
Loudness on /off
Linear adjustment
Adjust mono / stereo
Select operating mode
Select waveband
Switch on radio menu mode
Setting procedures for transmitter selection
NBC (Next Best Chain) function
FM transmitter search
AM, LW transmitter search mode
Scan search
Direct frequency entry
Programme type display/search (PTY)
FM 1/FM 2 transmitter - request/store
AM, LW transmitter - request/store
AM, LW autostore
42
Manual tuning
43
Regionalisation
43
Traffic Program (TP)
EON transmitter - display / select
EON transmitter - switch on / off
44
Traffic program transmitter - display / select
44
Anouncement stand-by - switch on/off
44
Mute function - switch on/off
44
Telephone mute function
45
Time request
45
45
45
Cassettes - insert / eject
46
Track switching
46
Radio operation during forward / rewind
46
Fast forward / rewind
Music search - forwards / backwards
Dolby NR
47
Skip blank
47
Scan search
47
Cleaning the cassette mechanism
48
48
48
49
49
49
50
50
51
51
51
52
53
53
53
53
54
54
55
55
56
56
56
57
57
57
58
58
58
39

Advertisement

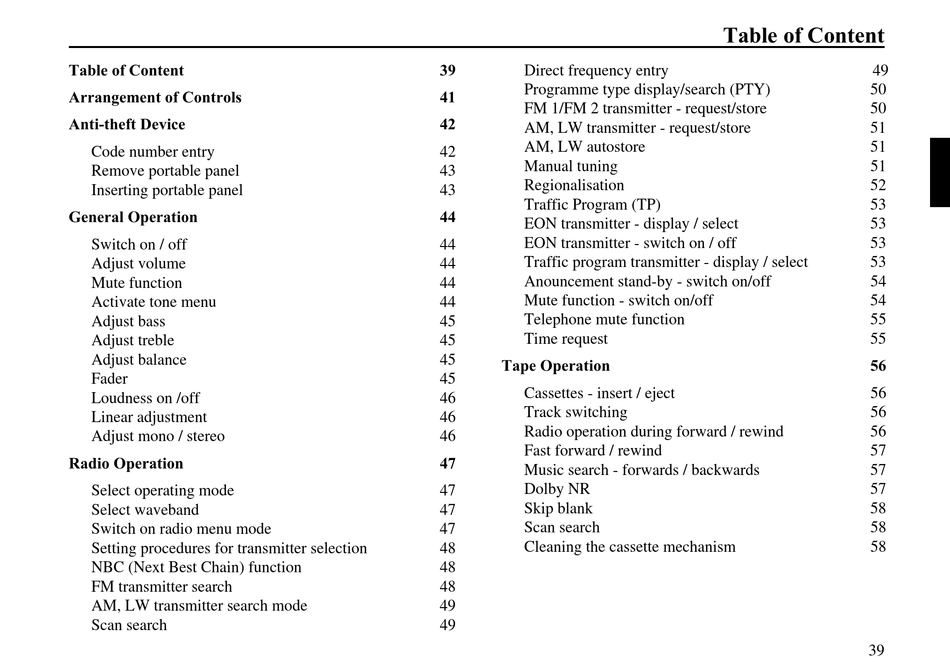

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mexico CC4325 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

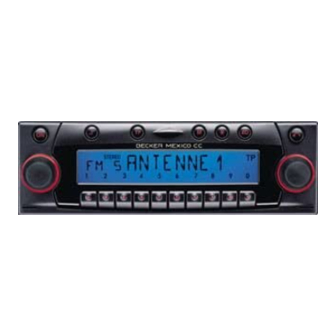

Summary of Contents for Becker Mexico CC4325

  • Page 1 Direct frequency entry Programme type display/search (PTY) FM 1/FM 2 transmitter - request/store AM, LW transmitter - request/store AM, LW autostore Code number entry Manual tuning Remove portable panel Regionalisation Inserting portable panel Traffic Program (TP) EON transmitter - display / select EON transmitter - switch on / off Switch on / off Traffic program transmitter - display / select...
  • Page 2 Compact Disc (CD) instructions CDs - insert / eject Frequency search Track skip - forwards / backwards Chain search Scan search RDS SYSTEM Fast forward / rewind EON (Enhanced Other Network) Relative time, number of tracks and total playing time PTY (Program Type) Random Play Direct track selection...
  • Page 3 1 Volume control 7 Waveband selector button ( an ) 2 On / off switch ( 8 Tape/CD eject button ( 3 Tone button ( 9 Right rotary control 4 Road traffic announcement button ( 10 Multifunction buttons 5 Operating mode selector button ( ode) 11 Display 6 Function button (...
  • Page 4 If the car radio is disconnected from the power supply, it is theft-protected upon reconnection. After switching on at the button, the prompt follo- wed by 4 stars is displayed. The four-digit code must then be entered using the multifunction buttons “ - ”. Code number 1530 (the code number can be found on the enclosed CODE CARD).
  • Page 5 As effective anti-theft device, the portable panel ( ) can be removed from the unit. For this purpose, press and hold button. The display folds forwards. The portable component can then be pulled out. The volume is limited to a maximum value after the display has been folded down.
  • Page 6: Mute Function

    Press button. Further on / off switching possibilities: Via ignition. In order to switch on via the ignition, the unit must previously have been switched off via the ignition. After switching off the ignition, the unit can be prevented from switching off by pressing the button within 3 seconds.
  • Page 7 Press button and then multifunction button “ ” or “ ”. and the set value are displayed. Set the desired bass via both buttons. Press both buttons simultaneously. Press button and then multifunction button “ ” or “ ”. and the set value are displayed.
  • Page 8 Press button and then multifunction button “ ”. are displayed. The loudness can be switched on or off alternately by pres- sing the multifunction button. Press and hold button for more than 2 seconds. The tone values for the set signal source (e.g.
  • Page 9 Press button. The operating modes (for connected CD/MD changer) or can be selected. The last selected operating mode is set after the button is pressed for the first time. If the other operating modes are to be selected, the button is quickly and repeatedly pressed until the desired operating mode is selected.
  • Page 10: Scan Search

    The desired transmitter can be selected via NBC (Next Best Chain), transmitter search, scan search, manual tuning, direct frequency entry and station buttons. The NBC function features a dynamic memory. In order to call up the NBC function, select radio menu mode in FM mode. Then press multifunction button “...
  • Page 11 Turn the right rotary control to the left/right in desired waveband (AM, LW). The radio searches for reception frequencies in descending/ascending order of frequency. Tuning steps of 9 kHz for AM and 3 kHz for LW are used. In the desired waveband (FM, AM or LW), press the right rotary control, is displayed.
  • Page 12 Select radio menu mode and then and press multifunction button “ . The selected transmitter program type is displayed for 10 seconds (e.g. pop music). If the selected transmitter has no PTY characteristic (see also page 73) appears. In order to activate search, select radio menu mode and then and press multifunction button “...
  • Page 13 Press multifunction button “ ”. The stored transmitter is requested. 10 transmitters can be stored under station buttons. Search for the desired transmitter and press the multifunction button until the station button number is displayed. Select desired waveband. Select radio menu mode. Then press multifunction button “...
  • Page 14: Regionalisation

    A regional identification is displayed if regional programmes are broadcast within the programme range of the selected transmitter. The abbreviation indicates that the selected transmitter is able to broadcast regional transmissions. In this case, the RDS - diversity function is restricted to the selected regional area.
  • Page 15 The traffic programme system offers the advantage that current traffic news can be received and heard despite the fact that Tape/CD, AM, LW or FM transmitters (which are not special traffic programme transmitters) are selected. For this purpose, it is essential that a traffic programme or EON (enhanced other network) transmitter is selected in the FM waveband and that the traffic programme is activated.
  • Page 16 If the selected traffic programme transmitter should interrupt the AM, LW or tape/CD operation for traffic announcements, the button must be pressed until the abbreviation is displayed. If traffic announcements are not desired, the button must be pressed until the abbreviation appears.
  • Page 17 The telephone characteristics can be set in the user menu (see also page 66) if a telephone system is installed in the vehicle and the mute function lead for the car telephone is connected to the car radio. For the setting , the radio is switched to mute if a call is received.
  • Page 18 Press button briefly; the display folds downwards and the cassette slot becomes visible. Push in cassette with tape-side to the right until it engages and press lightly. The cassette is drawn in automatically. Then fold the display up again. The unit switches automatically to cassette operation. are displayed.
  • Page 19 During cassette operation, fast forward / rewind can be activated using the multifunction buttons. In order to cancel the function, press or turn the right rotary control, or press the track switching buttons or the fast forward / rewind buttons. In order to activate the forward music search, turn the right rotary control to the right until the desired number of tracks to be skipped (max.
  • Page 20 If skip blank is active, automatic forward is activated at blank tape sections which are longer than 10 to 15 seconds. In order to activate the function, press the multifunction button “ ” until is shown on the display. Press the right rotary control to start the scan search. appears on the display.
  • Page 21 Sound interruptions may occur if the CD is dirty. In order to ensure optimum tone quality, please note the following: Always touch the CD at the edges only. Keep the disc clean and never touch the surface. Never stick anything to the CD. Protect the CDs against direct sunlight and from heat sources such as heaters etc.
  • Page 22 Turn right rotary control to right / left. If the track has been playing for longer than 8 seconds when the return function is triggered, the device returns to the beginning of the track. Through further turning of the right rotary control, several tracks can be skipped over in forward or backward directions.
  • Page 23 By pressing the multifunction button “ ”, the relative time for the track currently being played is displayed for approx. 8 seconds. By again pressing the multifunction button “ ” (within 10 seconds), the number of tracks and total playing time of the CD currently being played are displayed for approx.
  • Page 24 A temperature protection circuit is utilised in this unit in order to protect the laser diode against over heating. When this protection circuit is activated, appears for 8 seconds. The unit switches back to the last selected signal source (FM / AM / LW or CD/ MD changer).
  • Page 25 If a CD/MD changer is connected to the car radio, this is ready for operation as soon as it has been loaded with the filled CD magazine or with MDs. Close the sliding cover after loading. Further operation is performed via the car radio control panel.
  • Page 26 Press button repeatedly until the CD/MD changer operation is switched on. The last CD/MD which was being played, is played from the position at which it was left before switching off. The desired CD/MD can be selected via the multifunction buttons “ ”.
  • Page 27 After requesting the user menu, the following basic settings can be selected according to your personal preference. user memory speed-dependent volume control LHD / RHD setting display colour setting (only 4327, 4337) telephone characteristics aux input setting viewing angle setting quit user menu The user menu is requested by pressing the button for more than 8 seconds.
  • Page 28: Telephone Mute Function

    The GAL is a car radio control circuit, which automatically adjusts the car radio volume according to vehicle speed. This results in compensation of the driving noise produced at higher speeds. Request user menu, then set using the right rotary control. Pressing the multifunction buttons “...
  • Page 29: Driver Setting

    If a telephone system with handsfree unit is installed the telephone conversation is conducted via one loudspeaker side. The relevant loudspeaker side (LHD / RHD) is selected using the DRIVER setting. For selection, request user menu. Then set using the right rotary control.
  • Page 30 By repeatedly pressing the right rotary control, the following information can be requested in the service menu. display of model number display of serial number display of software status reset triggering for CDW or MDW display of current GAL adjustment data from CD drive (if present) In order to select the service menu, press button repeatedly (within...
  • Page 31 Telephone mute / clearing function Permanent positive (terminal 30) Control output for automatic aerial / amplifier 7-12 Special connection for Becker CD changer / Illumination (terminal 58) Sony MD changer Switched positive (terminal 15) Earth (terminal 31)
  • Page 32 A universal bracket for DIN installation slots is integrated into this car radio. An installation frame is not required. The unit is inserted into the installation slot and secured using the slides supplied. Complete the electrical connections. Then push the unit into the installation slot. Subsequently, push the slides into the apertures in the front of the unit to the first detent position (illustration A).
  • Page 33 For removal, the unit must first be unlocked. For this purpose, push in both slides to the second detent position, as shown in illustration A. Subsequently, withdraw the unit with both slides (illustration C). Then remove the slides by pressing the springs on the right and left sides of the unit.
  • Page 34: Frequency Search

    In frequency search mode, the receivable frequencies are searched for in descending/ascending order of frequency. Each receivable frequency is set. Tuning steps of 100 kHz are used for the search. In chain search mode, all receivable and identifiable RDS programmes in FM can be selected in descending or ascending alphabetical order.
  • Page 35 Specific types of program, such as e.g. sport, pop music, classical music etc., can be selected using the PTY function. The PTY is broadcast by the RDS transmitter, provided that the transmitter is equipped with this function. The selected transmitter program type can be displayed or a search of a specific PTY transmitter can be performed.
  • Page 36 : Low active level < 2 Volt : 12 Volt : The Becker CD changer Silverstone (2660 or 2630), or the Sony MD changers MDX 60 and MDX 61 can be connected. : Only CDs which conform to DIN EN 60908 may be used.
  • Page 37 Dear listener ! According to current EU guidelines, any person may operate this radio receiver. This unit conforms to the current valid European or harmonised national regulations. The designation is your guarantee of conformance to the applicable specifications concerning electromagnetic compatibility for the unit.
