Connecting Voice Terminals

ASSEMBLE THE VOICE TERMINALS

There are several types of voice terminals available. Some are more practical
for employees with limited need for custom features and access to multiple out-
side lines. Others are designed for employees who need access to many
custom features or outside lines. A 34-button deluxe voice terminal, with lights
by every flat button, or a large attendant console (a 34-button deluxe voice ter-
minal with an attached Attendant Intercom Selector providing additional space
for intercom buttons) are most appropriate for an attendant or receptionist.
Each voice terminal has the following components, which come boxed together:
Voice terminal body
Handset
Coiled handset cord
Modular voice terminal cord
Desk stand and/or wall mount

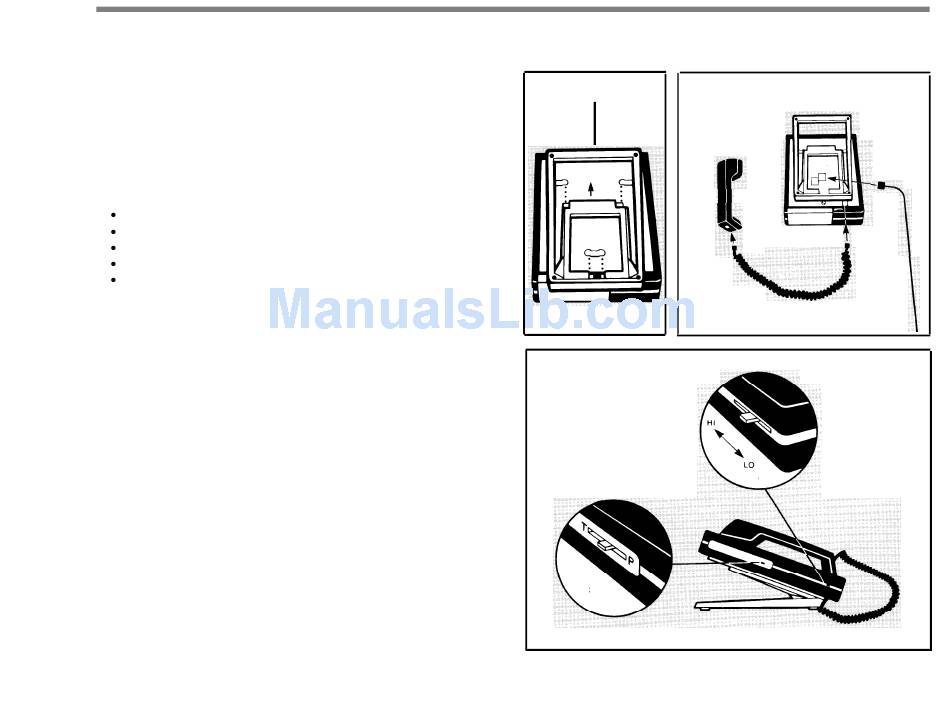

To assemble a voice terminal and desk stand:
1
Slide the stand onto the voice terminal, following the directions that
come with the components.
2
Plug one end of the coiled handset cord into the handset, and the other
end into the jack next to the handset symbol at the base of the voice
terminal body.
3
Plug the modular voice terminal cord into the jack labeled Line on the
back of the voice terminal.
4
Slide the volume control switch to the center position.
5
Check the switch labeled T/P on the left side of the voice terminal. Make
sure it is set in its center position. If the switch is set at P or T, the voice
terminal will begin to ring as soon as you plug it in.
If you want to mount a voice terminal on a wall, follow the instructions
NOTE:
that come with the wall mount.
22
1
Desk stand
Voice terminal
Handset
2
Coiled
handset cord
Volume control switch
Test/program switch
5
3
L I N E
2
Modular voice
terminal cord
4
