AT&T MERLIN 1030 Installation Manual page 23

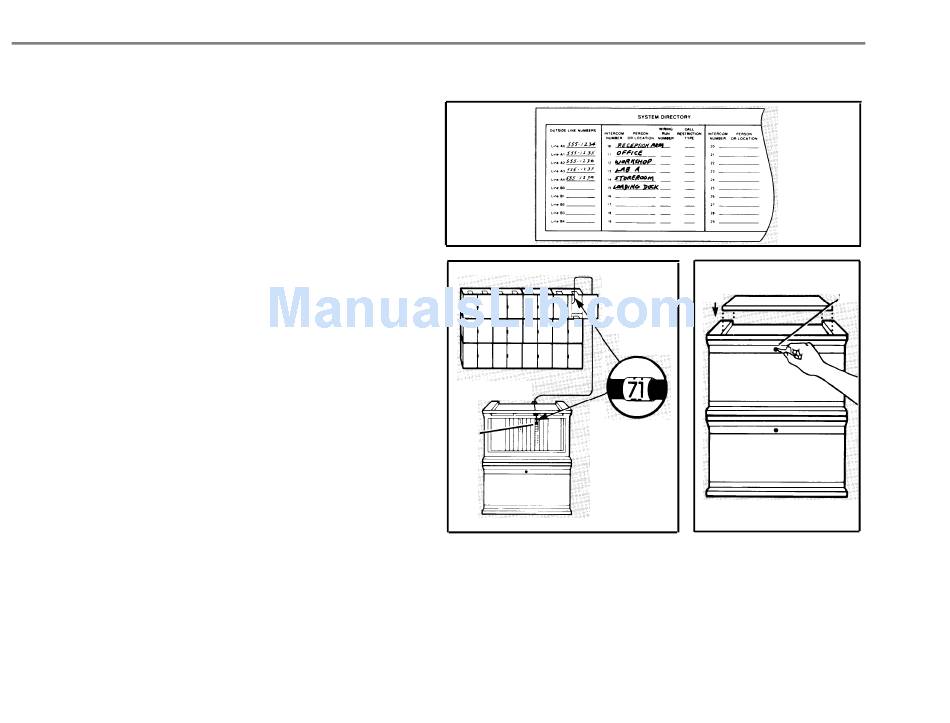

Now do the following:
1
Fill in the intercom assignments on the system directory.
When the system directory is complete, peel off its backing and stick
it to the inside of the control unit's front panel.
2
Take the blue-on-white cord labels to the jack field and label each
modular jumper cord at both ends with the cord's intercom number.
TIP: The system directory and the labels inside the the apparatus boxes
can help you assign the correct intercom numbers to the modular
jumper cords.
3
Thread each modular jumper cord through the pair of cord clips on the
control unit (or expansion unit) aligned with the Voice Terminal Module
to which that jumper cord is assigned.
4
Plug each modular jumper cord into the jack for its intercom number
in the control unit (or expansion unit).
TIP: You can thread all 10 cords going to one Voice Terminal Module
through the same pair of cord clips. You may want to use cable ties to
bundle the jumper cords from each module between the cord clips. But
you shouldn't use cable ties between the rear cord clip and the jack field
because you'll want to leave the jumper cords free for easy rearrange-
ment in the future.
5
Fit the lid onto the top of the control unit or expansion unit.
6
Fit the front covers onto the control unit and expansion unit, and lock
them.
3
4
5
2
1
6
21
