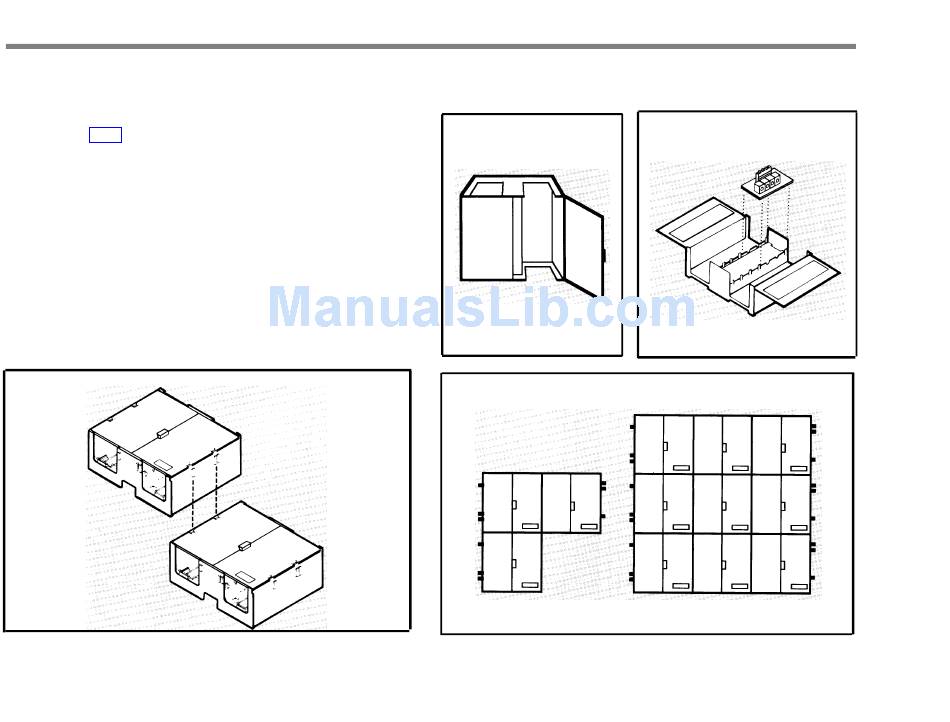

Add Jacks to the Jack Field
1
Use the table, page 6, to determine the number of adapters and ap-
paratus boxes you need.
2
Position each apparatus box so that the door with the handle is on the
right.
3
Snap adapters into boxes, as needed, so that the jacks on the adapters
face to the right.
4
Attach the apparatus boxes to each other by meshing the tongues and
grooves as shown.
NOTE: If you need two apparatus boxes, attach the second to the bot-
tom of the first. If you need a third box, attach it to the right of the first.
If you need a fourth box, attach it to fill in the square, making two col-
umns of boxes with two boxes in each column.
5
Attach this configuration of apparatus boxes to the leftmost box or boxes
already mounted in the jack field.
