Alarm Lock Precision 1100 Addendum Manual

345 Bayview Avenue
Amityville, New York 11701
For Sales and Repairs 1-800-ALA-LOCK
For Technical Service 1-800-645-9440
Publicly traded on NASDAQ Symbol: NSSC
© ALARM LOCK 2006

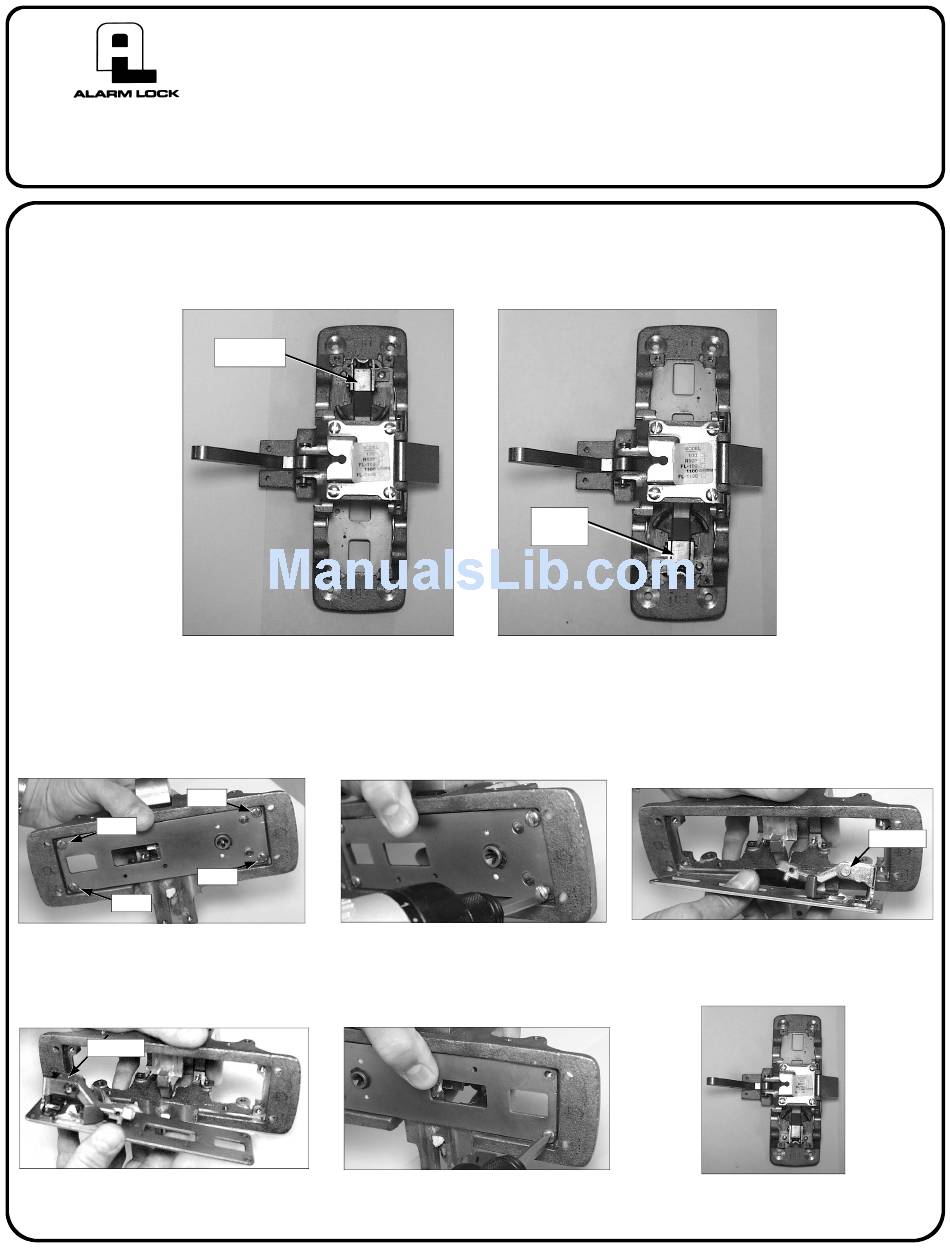

For the Precision 1100 model to work correctly with the NAPCO Exit Trim models, the 1100 model receptacle must be
located at the bottom of the unit. If the 1100 model receptacle is located at the top position (either from pre-existing
installations or new installations), the receptacle must be repositioned as shown the image below.
Screw 1
Screw 2
Screw 3
1. The underside of the model 1100 is shown, with
four (4) screws that must be removed.
Receptacle
4. Turn back plate 180° so that the receptacle is
in the bottom position.
PRECISION 1100 RECEPTACLE
Receptacle must
be repositioned
Precision 1100
INCORRECT
HOW TO REPOSITION THE RECEPTACLE
Screw 4
2. Remove all 4 screws with a slotted screw-
driver. Place screws aside.
5. Replace all 4 screws that were previously
removed in step 2.
ADDENDUM
REPOSITION THE
Receptacle
repositioned
correctly
Precision 1100
CORRECT
3. With screws removed, the back plate can easily be
removed as a modular unit.
6. Receptacle repositioned correctly.
WI1580 10/06
Receptacle
