345 Bayview Avenue
Amityville, New York 11701
For Sales and Repairs 1-800-ALA-LOCK
For Technical Service 1-800-645-9440
© ALARM LOCK 2003

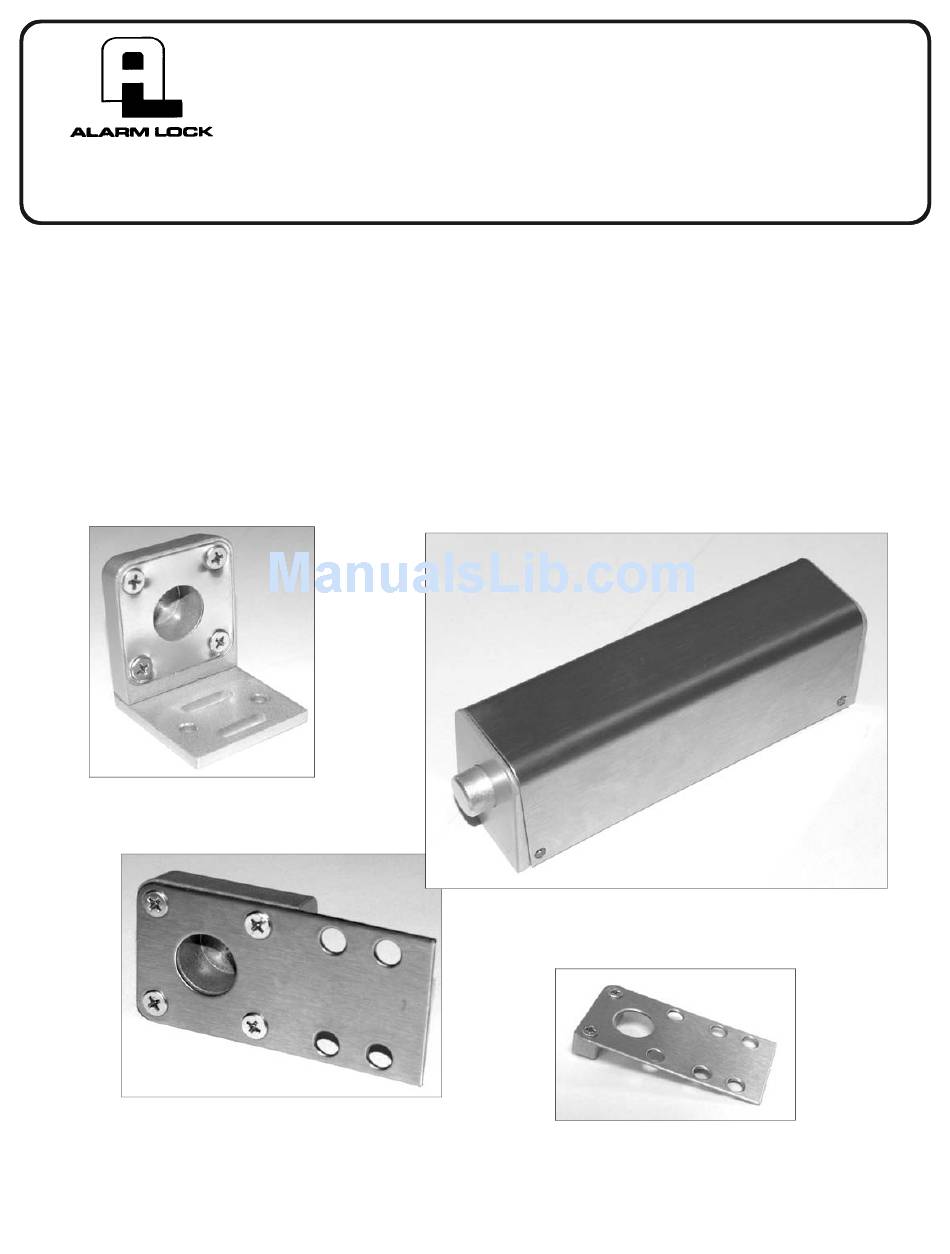

The LEKTROLOK Models 103 and 104RA Deadbolt Electric
Locks are compact units designed to fit narrow stile doors. Both
models come complete with "keepers" (deadbolt holes) which
make it simple to install on all types of doors or windows includ-
ing single, pairs, double acting or overhead, either in-swinging or
out-swinging. When the lock is aligned with the keeper, the
deadbolt projects into the keeper thus locking the door. The
deadbolt is retracted (and the door unlocked) by means of a re-
mote switch, a key switch, time programmer or other electrical
contact which interrupts the power.
suited to programmed locking and unlocking of laundromats,
lobby doors, or other unattended areas. Use of a lighted push
button switch at the door (Alarm Lock Model 191) assures that
ANGLED KEEPER
LEKTROLOK--MODELS 103 & 104RA
DEADBOLT ELECTRIC LOCKS
Both models are ideally
FLUSH KEEPER
people inside the building can exit after Iock-up time; the door
will relock automatically after exit. May be wired with smoke
detectors and/or fire alarm systems for automatic unlocking in a
fire emergency.
MODELS AVAILABLE
Model 103 is a standard "fail safe" unit which projects the dead-
bolt only while power is "on". When the power is off, the dead-
bolt retracts. Model 104RA ("Reverse Action") unlike the stan-
dard unit is "fail secure" and will project the deadbolt only when
the power is "off". When the power is "on", the deadbolt re-
tracts.
LEKTROLOK--MODEL 103/104RA
ELECTRIC DEADBOLT
MORTISE KEEPER. INSTALLED FLUSH
(INSIDE THE DOOR FRAME). FOR USE
WITH WOOD DOOR FRAMES ONLY.
WI1192 4/03
1
Advertisement
Table of Contents
Related Manuals for Alarm Lock LEKTROLOK 103
Summary of Contents for Alarm Lock LEKTROLOK 103
- Page 1 "off". When the power is "on", the deadbolt re- lobby doors, or other unattended areas. Use of a lighted push tracts. button switch at the door (Alarm Lock Model 191) assures that ANGLED KEEPER LEKTROLOK--MODEL 103/104RA ELECTRIC DEADBOLT FLUSH KEEPER MORTISE KEEPER.
-
Page 2: Installation Instructions
INSTALLATION INSTRUCTIONS Note: The deadbolt will not project unless the magnet is opposite the reed switch. The template supplied serves the majority of installations. If your installation is different, always maintain a 1/8” gap between the face of the lock and the keeper. The lock should be mounted on the door frame (rather than the door) for ease of wiring. If in- stalling the lock with the plunger facing down, see special installation instructions on the next page. - Page 3 WHEN INSTALLING THE LOCK WITH PLUNGER FACING DOWN When installing the lock in a vertical position with the plunger facing down, we suggest replacing the colored spring (7 coils) with a stronger one (not colored, 5 coils) included in the box. To replace the spring, refer to the diagram below and replace it as follows: 1.
-
Page 4: Application Examples
APPLICATION EXAMPLES Mount lock on door frame (rather than the door) for ease of wiring. Examples are shown below: SPACER INSWINGING HORIZONTAL INSTALLATION. DEADBOLT ON FRAME (WITH SPACER) AND A FLUSH KEEPER SCREWED INTO DOOR (SEE BELOW IMAGE). OUTSWINGING VERTICAL INSTALLATION. DEADBOLT ON FRAME, ANGLED KEEPER ON DOOR SEE ABOVE IMAGE...
