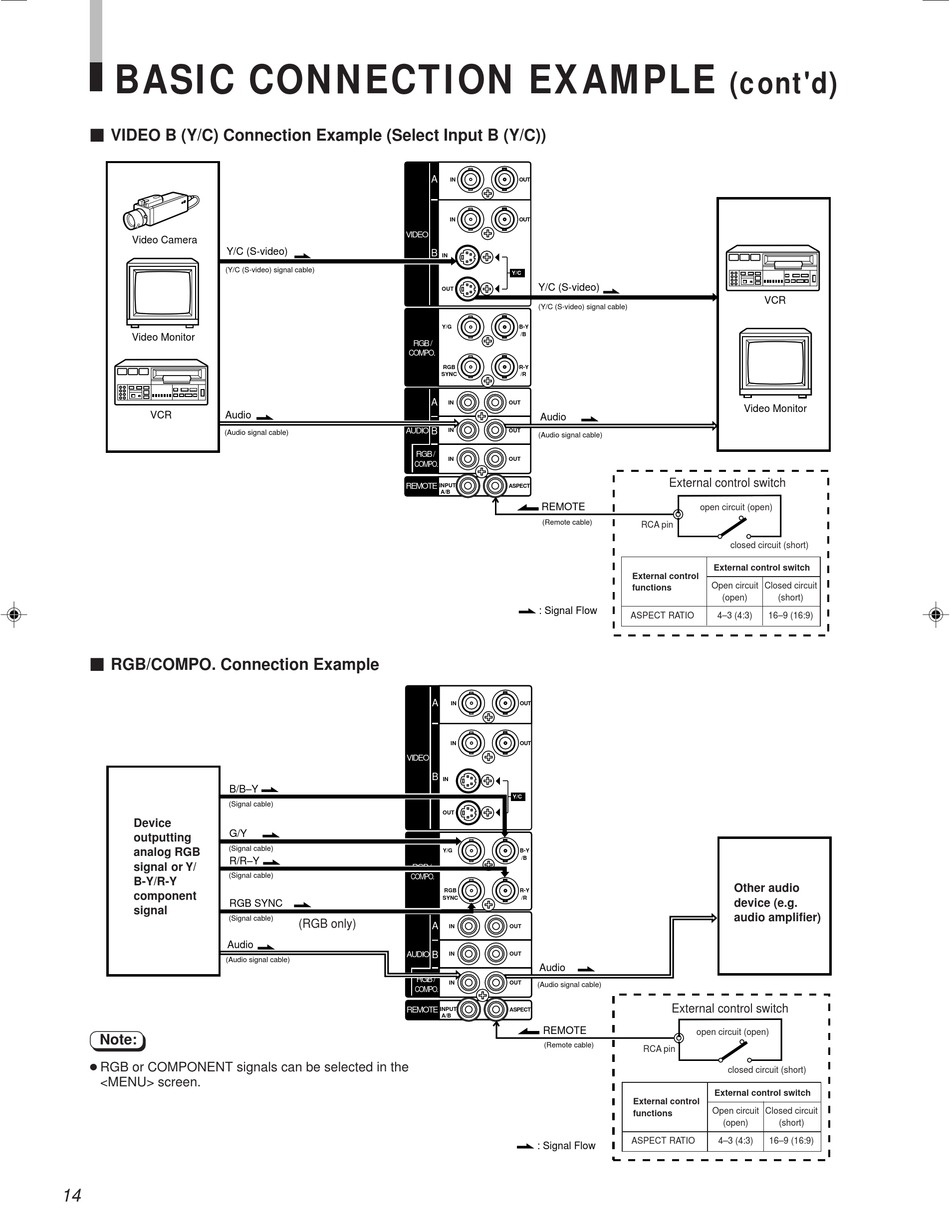

BASIC CONNECTION EXAMPLE
VIDEO B (Y/C) Connection Example (Select Input B (Y/C))
Video Camera
Video Monitor
VCR
Audio
(Audio signal cable)
RGB/COMPO. Connection Example
Device
outputting
analog RGB
signal or Y/
B-Y/R-Y
component
signal
Note:
● RGB or COMPONENT signals can be selected in the
<MENU> screen.
14
Y/C (S-video)
(Y/C (S-video) signal cable)
B/B–Y
(Signal cable)
G/Y
(Signal cable)
R/R–Y
(Signal cable)
RGB SYNC
(Signal cable)
(RGB only)
Audio
(Audio signal cable)
A
IN
OUT
IN
OUT
VIDEO
B
IN
Y/C
Y/C (S-video)
OUT
(Y/C (S-video) signal cable)
Y/G
B-Y
/B
RGB /
COMPO.
RGB
R-Y
SYNC
/R
A
IN
OUT
Audio
AUDIO
B
IN
OUT
(Audio signal cable)
RGB /
IN
OUT
COMPO.
REMOTE
INPUT
ASPECT
A/B
REMOTE
(Remote cable)
: Signal Flow
A
IN
OUT
IN
OUT
VIDEO
B
IN
Y/C
OUT
Y/G
B-Y
/B
RGB /
COMPO.
RGB
R-Y
SYNC
/R
A
IN
OUT
B
AUDIO
IN
OUT
Audio
RGB /
IN
OUT
(Audio signal cable)
COMPO.
REMOTE
INPUT
ASPECT
A/B
REMOTE
(Remote cable)
: Signal Flow
(cont'd)
VCR
Video Monitor
External control switch
open circuit (open)
RCA pin
closed circuit (short)
External control switch
External control
Open circuit Closed circuit
functions
(open)
(short)
ASPECT RATIO
4–3 (4:3)
16–9 (16:9)
Other audio
device (e.g.
audio amplifier)
External control switch
open circuit (open)
RCA pin
closed circuit (short)
External control switch
External control
Open circuit Closed circuit
functions
(open)
(short)
ASPECT RATIO
4–3 (4:3)
16–9 (16:9)
