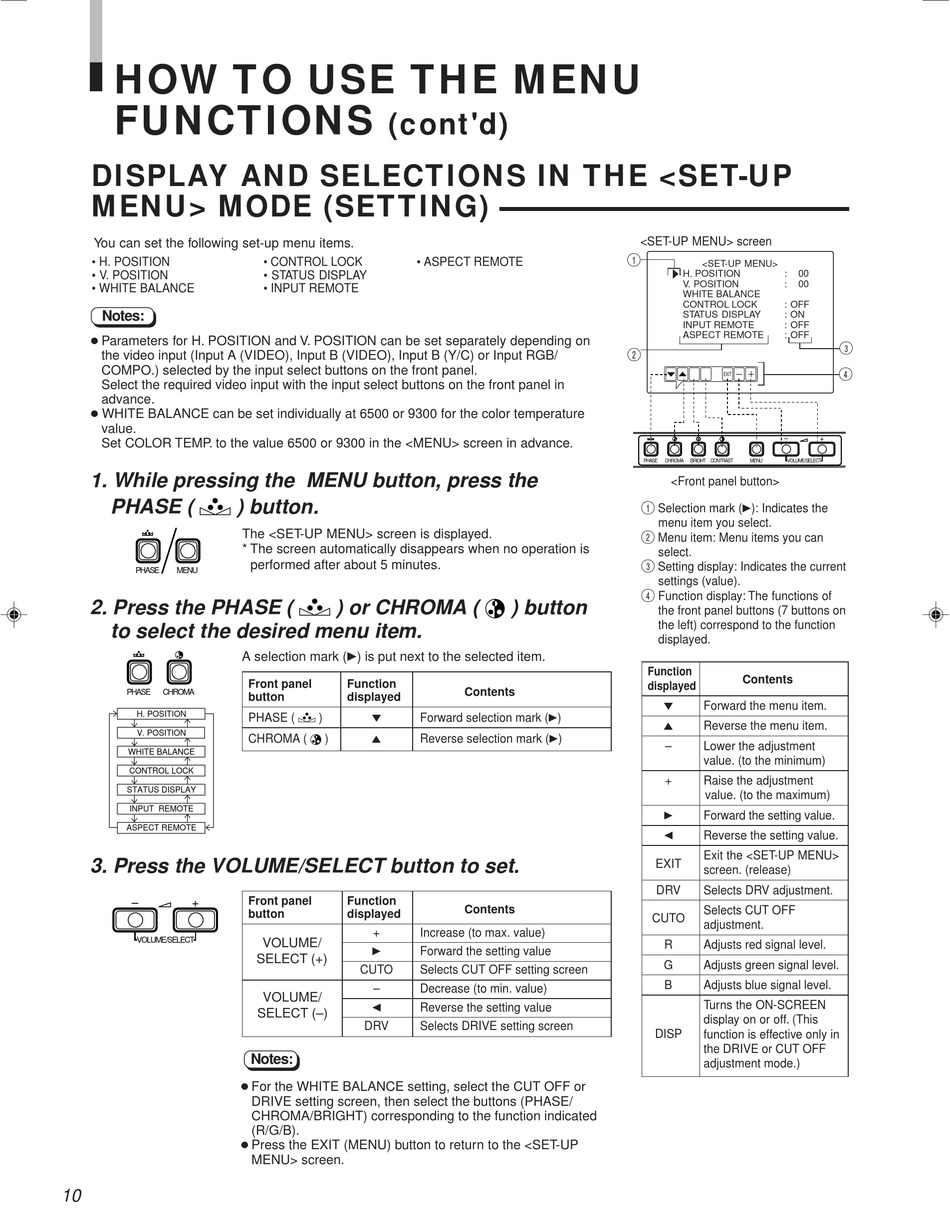

HOW TO USE THE MENU
FUNCTIONS
DISPLAY AND SELECTIONS IN THE <SET-UP
MENU> MODE (SETTING)
You can set the following set-up menu items.
• H. POSITION
• V. POSITION
• WHITE BALANCE
Notes:
● Parameters for H. POSITION and V. POSITION can be set separately depending on
the video input (Input A (VIDEO), Input B (VIDEO), Input B (Y/C) or Input RGB/
COMPO.) selected by the input select buttons on the front panel.
Select the required video input with the input select buttons on the front panel in
advance.
● WHITE BALANCE can be set individually at 6500 or 9300 for the color temperature
value.
Set COLOR TEMP. to the value 6500 or 9300 in the <MENU> screen in advance.
1. While pressing the MENU button, press the
PHASE (
PHASE MENU
2. Press the PHASE (
to select the desired menu item.
PHASE CHROMA
H. POSITION
V. POSITION
WHITE BALANCE
CONTROL LOCK
STATUS DISPLAY
INPUT REMOTE
ASPECT REMOTE
3. Press the VOLUME/SELECT button to set.
– +
VOLUME/SELECT
10
(cont'd)
• CONTROL LOCK
• STATUS DISPLAY
• INPUT REMOTE
) button.
The <SET-UP MENU> screen is displayed.
* The screen automatically disappears when no operation is
performed after about 5 minutes.
) or CHROMA (
3
A selection mark ( ) is put next to the selected item.
Front panel Function
button displayed
∞
PHASE ( )
5
CHROMA ( )
Front panel Function
button displayed
+
VOLUME/
3
SELECT (+)
CUTO
–
VOLUME/
2
SELECT (–)
DRV
Notes:
● For the WHITE BALANCE setting, select the CUT OFF or
DRIVE setting screen, then select the buttons (PHASE/
CHROMA/BRIGHT) corresponding to the function indicated
(R/G/B).
● Press the EXIT (MENU) button to return to the <SET-UP
MENU> screen.
• ASPECT REMOTE
) button
Contents
3
Forward selection mark ( )
3
Reverse selection mark ( )
Contents
Increase (to max. value)
Forward the setting value
Selects CUT OFF setting screen
Decrease (to min. value)
Reverse the setting value
Selects DRIVE setting screen
<SET-UP MENU> screen
1
<SET-UP MENU>
‰ H. POSITION
:
V. POSITION :
WHITE BALANCE
CONTROL LOCK : OFF
STATUS DISPLAY : ON
INPUT REMOTE : OFF
ASPECT REMOTE : OFF
2
EXIT
–
PHASE CHROMA BRIGHT CONTRAST MENU VOLUME/SELECT
<Front panel button>
3
1
Selection mark ( ): Indicates the
menu item you select.
2
Menu item: Menu items you can
select.
3
Setting display: Indicates the current
settings (value).
4
Function display: The functions of
the front panel buttons (7 buttons on
the left) correspond to the function
displayed.
Function
Contents
displayed
∞
Forward the menu item.
5
Reverse the menu item.
– Lower the adjustment
value. (to the minimum)
+ Raise the adjustment
value. (to the maximum)
3
Forward the setting value.
2
Reverse the setting value.
Exit the <SET-UP MENU>
EXIT
screen. (release)
DRV Selects DRV adjustment.
Selects CUT OFF
CUTO
adjustment.
R Adjusts red signal level.
G Adjusts green signal level.
B Adjusts blue signal level.
Turns the ON-SCREEN
display on or off. (This
DISP
function is effective only in
the DRIVE or CUT OFF
adjustment mode.)
00
00
3
4
+
