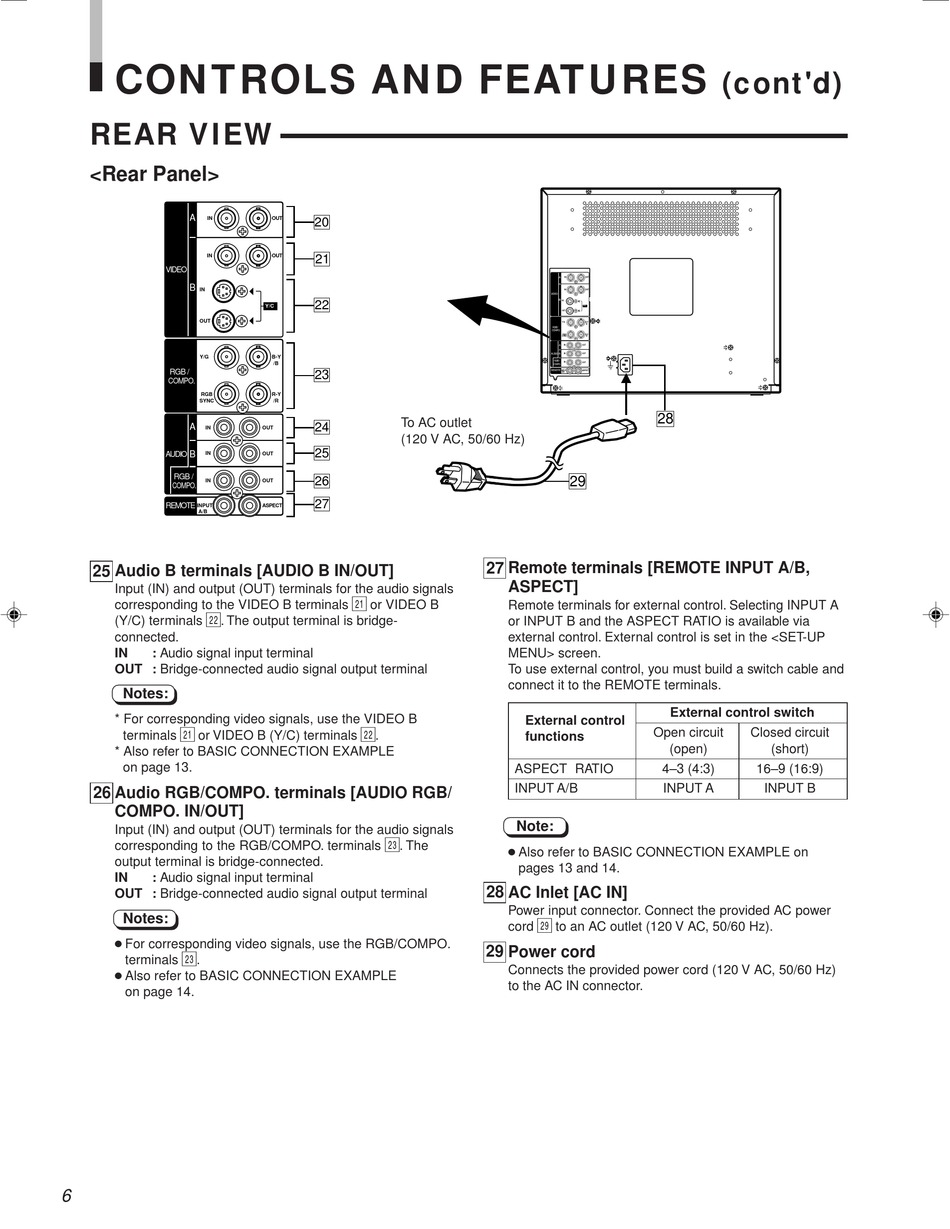

CONTROLS AND FEATURES
REAR VIEW
<Rear Panel>
A
IN
IN
VIDEO
B
IN
OUT
Y/G
RGB /
COMPO.
RGB
SYNC
A
IN
B
AUDIO
IN
RGB /
IN
COMPO.
REMOTE
INPUT
A/B
25
Audio B terminals [AUDIO B IN/OUT]
Input (IN) and output (OUT) terminals for the audio signals
corresponding to the VIDEO B terminals
w
(Y/C) terminals
. The output terminal is bridge-
connected.
IN
: Audio signal input terminal
OUT : Bridge-connected audio signal output terminal
Notes:
* For corresponding video signals, use the VIDEO B
q
terminals
or VIDEO B (Y/C) terminals
* Also refer to BASIC CONNECTION EXAMPLE
on page 13.
26
Audio RGB/COMPO. terminals [AUDIO RGB/
COMPO. IN/OUT]
Input (IN) and output (OUT) terminals for the audio signals
corresponding to the RGB/COMPO. terminals
output terminal is bridge-connected.
IN
: Audio signal input terminal
OUT : Bridge-connected audio signal output terminal
Notes:
● For corresponding video signals, use the RGB/COMPO.
e
terminals
.
● Also refer to BASIC CONNECTION EXAMPLE
on page 14.
6
OUT
20
OUT
21
22
Y/C
B-Y
/B
23
R-Y
/R
To AC outlet
24
OUT
(120 V AC, 50/60 Hz)
25
OUT
26
OUT
27
ASPECT
q
or VIDEO B
w
.
e
. The
A
IN
OUT
IN
OUT
VIDEO
B
IN
Y/C
OUT
Y/G
B-Y
/B
RGB /
COMPO.
RGB
R-Y
SYNC
/R
A
IN
OUT
AUDIO
B
IN
OUT
RGB /
IN
OUT
COMPO.
REMOTE
INPUT
ASPECT
A/B
29
27
Remote terminals [REMOTE INPUT A/B,
ASPECT]
Remote terminals for external control. Selecting INPUT A
or INPUT B and the ASPECT RATIO is available via
external control. External control is set in the <SET-UP
MENU> screen.
To use external control, you must build a switch cable and
connect it to the REMOTE terminals.
External control
functions
ASPECT RATIO
INPUT A/B
Note:
● Also refer to BASIC CONNECTION EXAMPLE on
pages 13 and 14.
28
AC Inlet [AC IN]
Power input connector. Connect the provided AC power
o
cord
to an AC outlet (120 V AC, 50/60 Hz).
29
Power cord
Connects the provided power cord (120 V AC, 50/60 Hz)
to the AC IN connector.
(cont'd)
28
External control switch
Open circuit
Closed circuit
(open)
(short)
4–3 (4:3)
16–9 (16:9)
INPUT A
INPUT B
