Unpacking Steps

NOTE:
Before unpacking the switch, inspect the container and immediately report any evidence of damage.
Place the container on a clean, flat surface and cut all straps securing the container.
1
Open the container or remove the container top.
2
Carefully remove the switch from the container and place it on a secure and clean surface.
3
Remove all packing material.
4
Inspect the product and accessories for damage.
5

Mounting the Switch

CAUTION:
Read the safety information in the Product Information Guide as well as the safety information for other
switches that connect to or support the switch.
The AC and DC power connectors are on the back panel of the switch. We recommend connecting a redundant
power supply, such as the PowerConnect RPS-600 for non-PoE switches or the PowerConnect EPS-470 for PoE
switches.

Installing in a Rack

CAUTION:
Do not use rack mounting kits to suspend the switch from under a table or desk, or attach it to a wall.
CAUTION:
Disconnect all cables from the switch before continuing. Remove all self-adhesive pads from the
underside of the switch, if they have been attached.
CAUTION:
When mounting multiple switches into a rack, mount the switches from the bottom up.
Place the supplied rack-mounting bracket on one side of the switch, ensuring that the mounting holes on
1
the switch line up to the mounting holes in the rack-mounting bracket. Figure 1-1 illustrates where to
mount the brackets.

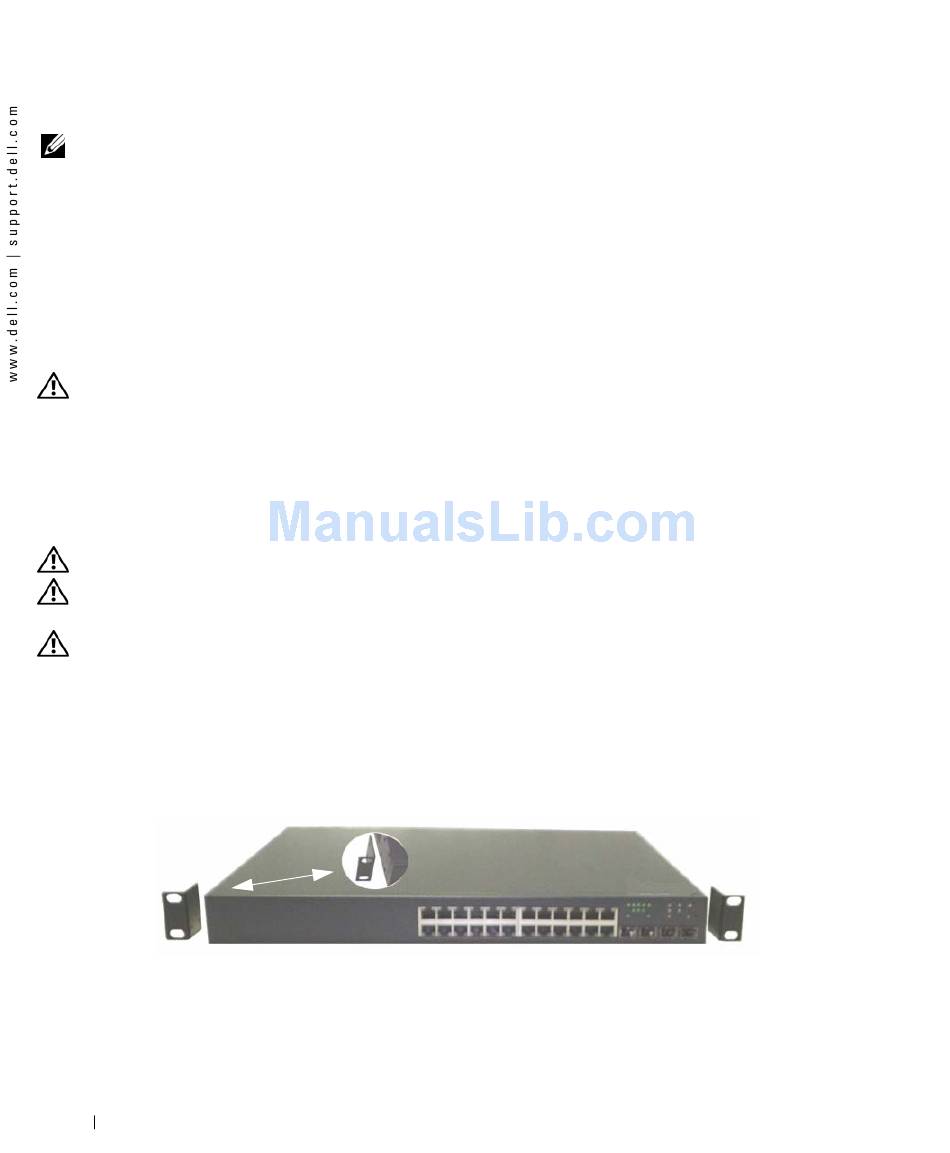

Figure 1-1. Attaching the Brackets
Insert the supplied bolts into the rack-mounting holes and tighten with a screwdriver.
2
Repeat the process for the rack-mounting bracket on the other side of the switch.
3
