Front Panels and LEDs
This appendix describes the front panels and LEDs of the Dell PowerConnect PC6224, PC6248, PC6224P,
PC6248P, and PC6224F systems.

Front Panels

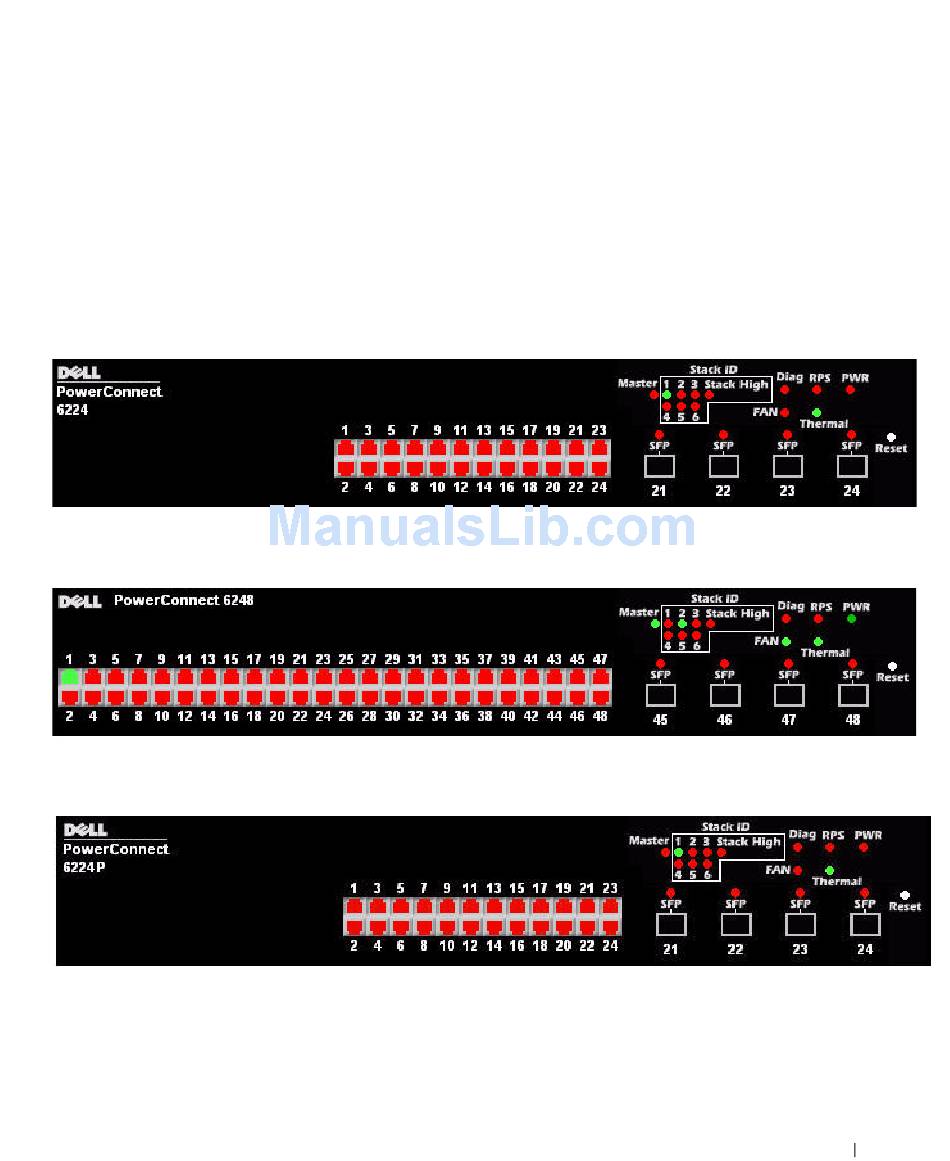

The front panels of the PowerConnect 6200 series systems are shown in the figures below.
Figure 1-1. PC 6224
Figure 1-2. PC 6248
Figure 1-3. PC 6224P
