Systems Leds - Dell 6224 - PowerConnect Switch - Stackable Getting Started Manual

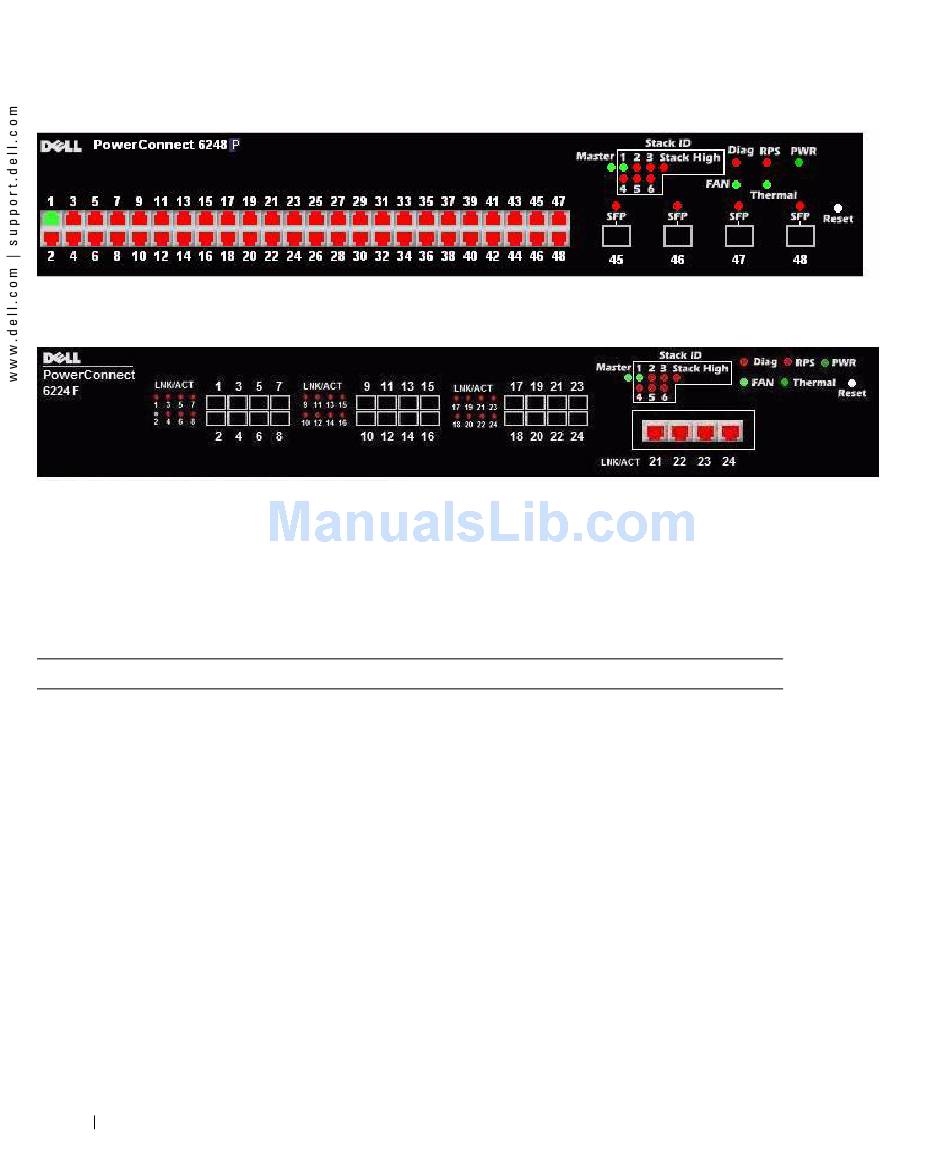

Figure 1-4. PC 6248P
Figure 1-5. PC 6224F
LEDs
The following sections list the LEDs.

Systems LEDs

Table 1-1. System LEDs
LED
Fan Status
Power Supply Status
Redundant Power Supply
Diagnostic
Temperature
20
Getting Started Guide
State
• Green: All Fans are operating correctly
• Red: One or more fans have failed
• Green: PS operating correctly
• Red: PS failure
• Green: Redundant supply present and operating
correctly
• Red: Redundant supply present and failed
• Off: Redundant supply is not present
• Blinking Green: Diagnostics in progress
• Solid Green: Diagnostics completed successfully
• Red: Diagnostics failed
• Green: System temperature is below threshold limit
• Red: System temperature is above threshold limit
