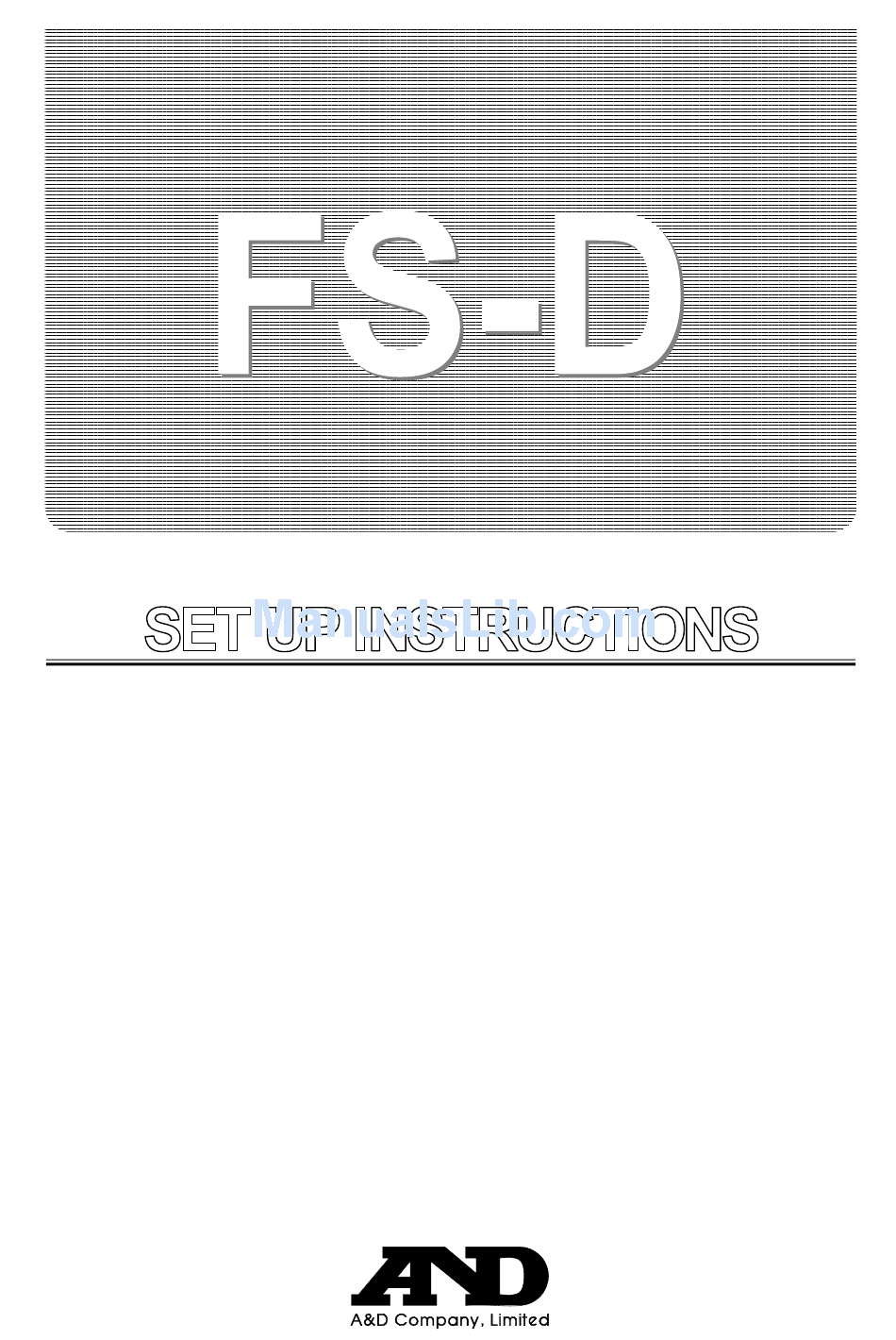

- Page 1 Weighing Indicator for Check Weighing Scales 1WMPD4002313...
- Page 2 This Manual and Marks All safety messages are identified by the following, “WARNING” or “CAUTION”, of ANSI Z535.4 (American National Standard Institute: Product Safety Signs and Labels). The meanings are as follows: A potentially hazardous situation which, if not avoided, WARNING could result in death or serious injury.
-
Page 3: Table Of Contents
Contents 1. COMPLIANCE ....................2 2. INTRODUCTION ....................3 3. UNPACKING ....................4 4. INSTALLATION and PRECAUTIONS ............. 5 4-1. Precautions for Installing the Indicator ............5 4-2. Load Cell Connections ................5 4-3. Verifying Load Cell Output and Input Sensitivity........6 4-4. -
Page 4: Compliance
1. COMPLIANCE Compliance with FCC rules Please note that this equipment generates, uses and can radiate radio frequency energy. This equipment has been tested and has been found to comply with the limits of a Class A computing device pursuant to Subpart J of Part 15 of FCC rules. These rules are designed to provide reasonable protection against interference when equipment is operated in a commercial environment. -
Page 5: Introduction

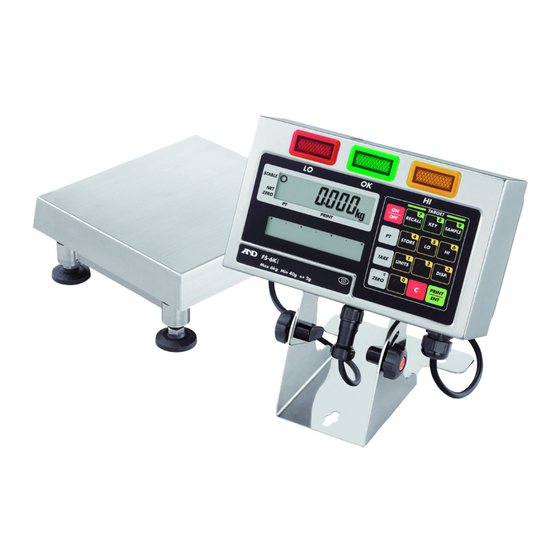

2. INTRODUCTION This manual describes how this product works and how to get the most out of it in terms of performance. The FS-D weighing indicator is used to build high performance check weighing scales. It has similar specifications and functions as an indicator of the FS-i series. Please refer to the instruction manual for the FS-i supplied with the FS-D. -
Page 6: Unpacking
3. UNPACKING Unpack the indicator carefully and keep the packing material if you are likely to transport the indicator again in the future. When unpacking, check whether all of the following items are included: Model label Indicator (1083014607) To be attached. Connector plug (1JMNJW-165-PM7) Display stand... -
Page 7: Installation And Precautions
4. INSTALLATION and PRECAUTIONS 4-1. Precautions for Installing the Indicator Ground the indicator so that the user will not be subjected an electric shock. Do not handle the main power cord with wet hands. The AC plug is not water-resistant. Install it in an area where it does not get wet. Do not install the indicator where there is flammable or corrosive gas present. -
Page 8: Verifying Load Cell Output And Input Sensitivity
4. Solder the wires to the pin contacts of the connector. A 5 m or less load cell cable is recommended as the FS-D uses a 4 wire system (no remote sensing). Load cell cable Load cell connector SIG- EXC+ SIG+ EXC- Load cell... -
Page 9: Setting Up The Indicator
4-4. Setting Up the Indicator Earth terminal Clamp Clamp Display stand To the wall Display stand (Wall-mounting bracket) Earth terminal Connect the main power cord to an outlet that has an earth ground terminal. You may use the earth terminal on the rear side of the display to ground the indicator. If necessary, adjust the viewing angle of the display by loosening the 2 clamps, changing the angle and re-tightening the clamps. -
Page 10: Names And Functions
5. NAMES AND FUNCTIONS CAL switch cover Cable hook Display pod Earth terminal Display stand Earth terminal Load cell connector NAMES FUNCTIONS / OPERATION Indicates the weight data. WEIGHT DATA DISPLAY WEIGHING UNIT INDICATOR Indicates the weighing unit in use. Indicates zero to full scale or comparison limits ANALOG WEIGHT DISPLAY and results. - Page 11 NAMES FUNCTIONS / OPERATION Indicates the results of the weight comparison COMPARISON INDICATORS LO (RED), OK (GREEN) and HI (YELLOW). Turns ON when the weight reading is STABLE. STABLE ANNUNCIATOR Turns ON when the weight is in the center of ZERO ANNUNCIATOR ZERO range.
-
Page 12: Function Parameter Settings
6. FUNCTION PARAMETER SETTINGS To design a platform scale, set the capacity, weighing Parameter unit and other functions according to the specifications -C01-00 of the scale. Normally, end users do not have to set these function parameters and these setting can be sealed together Function number with the calibration switch. -
Page 13: Function List
6-2. Function list Item Function number Description C01- 0 CAL switch enabled, key enabled Do not set C01- 1 Calibration CAL switch disabled, key disabled “C01-1” C01- 2 CAL switch enabled, key disabled C02- 0 6 kg (15 lb) C02- 1 15 kg (35 lb) C02- 2 30 kg (70 lb) -
Page 14: Calibration
7. CALIBRATION This function adjusts the scale (indicator) for accurate weighing. Calibration must be done when the FS-D is initially connected to a load cell (base unit). Calibration may also be required according the changes in the environment. CAL switch cover When the scale (indicator) has been moved. -
Page 15: Gravity Acceleration Correction
If you need ZERO calibration but do not need SPAN calibration, turn the power off to exit from the calibration procedure. 7. To calibrate with a different weight, change the -00020. 0 0 displayed value using the 10-key pad. If you enter the wrong number, press the C key. The value returns to the capacity and enter the number again. -
Page 16: Auto-Tare Function
8. AUTO-TARE FUNCTION The FS-D has an auto-tare function to be used with the comparator function enabled. If the weight value is within the OK range and stable for a preset time, then the indicator will automatically tare the weight and show zero. The Function “f22” designates the timing to tare automatically. -
Page 17: Additional Information
9. ADDITIONAL INFORMATION This section describes the additional functions and corrections to the instruction manual of FS-i series (WM+PD4001332 and 1WMPD4001368) which are common to the FS-D. 9-1. F-Function list The following function settings are added (“11-2. Function list” in WM+PD4001332). Item Function number Description... -
Page 18: Data Format
The frame ground and the shield are connected internally and there is no difference between them in use. Data format Example of data Out of range “kg” (+) O L , + 9 9 9 9 9 9 9 9 _ k g C O L , + 9 9 9 9 . -
Page 19: Rs-422 / 485
Command Assume 2 decimal place number. H I , + 0 0 1 0 0 C Reply 1.00% will be set as LO limit %. H I , + 0 0 1 0 0 C Command L O , + 0 0 1 0 0 C Assume 2 decimal place number. -
Page 20: Error Messages
10. ERROR MESSAGES Overload error Warning to indicate that an object beyond the weighing ----e--- capacity has been placed on the weighing pan. Remove the object from the weighing pan. Power-on error Warning to indicate that an object beyond the power-on -------- zero range (50% of the weighing capacity or 10%) is placed on the weighing platform. -
Page 21: Specifications
11. SPECIFICATIONS 11-1. Capacity and minimum display C02- setting Capacity 1500 0.002* 0.005 0.01 0.02 0.05 Min. display 0.001 0.002 0.005 0.01 0.02 0.05 0.0005 0.001 0.002 0.005 0.01 0.02 0.05 Capacity 6000 15000 30000 Min. display Capacity 1500 3500 0.005* 0.01 0.02... -
Page 22: Options
11-3. Options OP-02 (HC-02i) SLA Battery (Yuasa Battery NP4-6 recommended.) OP-03 (FS-03i) RS-232C + Comparator Relay Output (See note.) OP-04 (FS-04i) RS-422/485 + Comparator Relay Output (See note.) Note OP-03 and OP-04 cannot coexist. 11-4. Dimensions Unit: mm... - Page 24 3-23-14 Higashi-Ikebukuro, Toshima-ku, Tokyo 170-0013 JAPAN Telephone: [81] (3) 5391-6132 Fax: [81] (3) 5391-6148 A&D ENGINEERING, INC. 1756 Automation Parkway, San Jose, California 95131 U.S.A. Telephone: [1] (408) 263-5333 Fax: [1] (408)263-0119 A&D INSTRUMENTS LIMITED <UK Office> Unit 24/26 Blacklands Way, Abingdon Business Park, Abingdon, Oxfordshire OX14 1DY United Kingdom Telephone: [44] (1235) 550420 Fax: [44] (1235) 550485 A&D INSTRUMENTS LIMITED...
