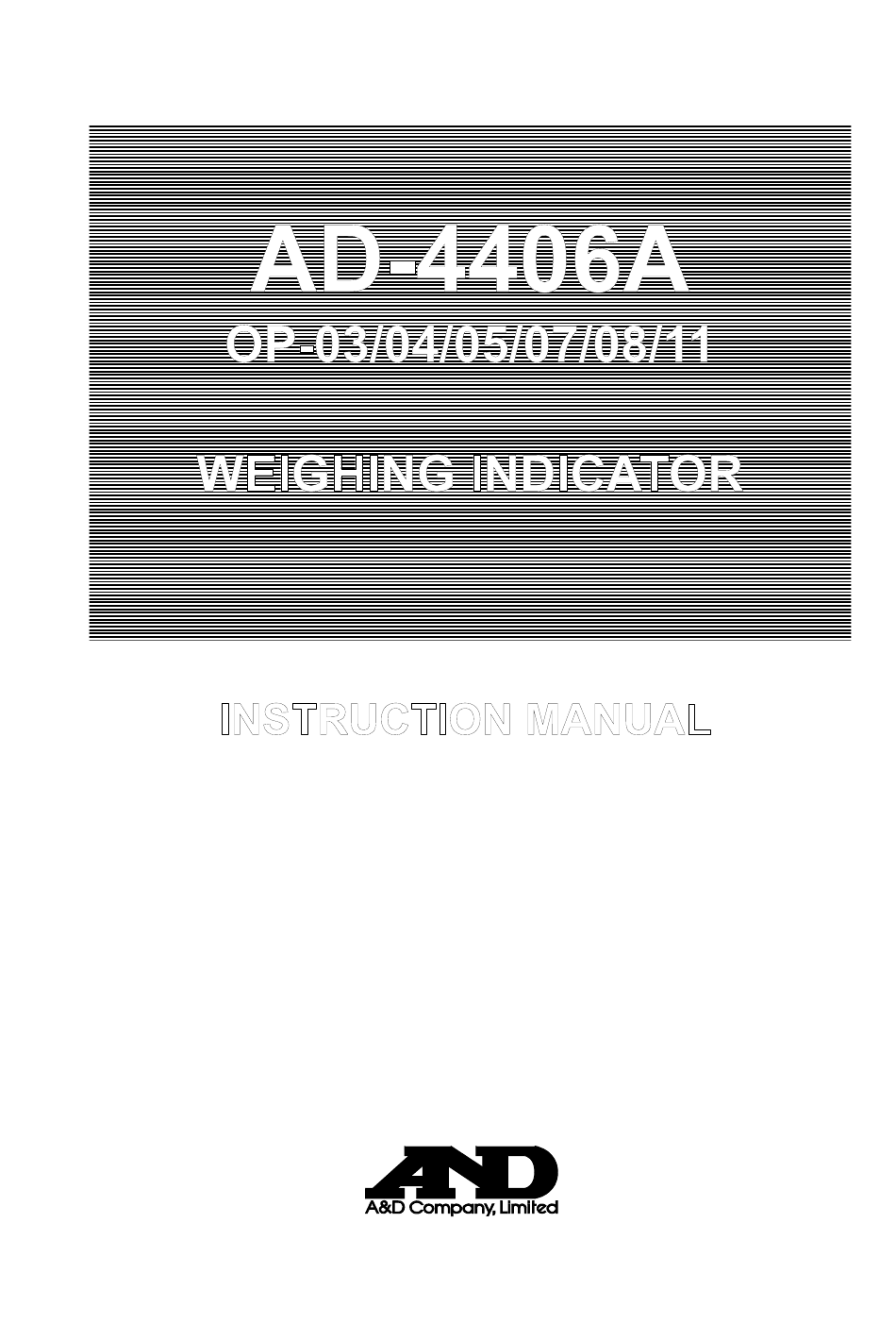

AD-4406A
OP-03/04/05/07/08/11
WEIGHING INDICATOR
INSTRUCTION MANUAL
INSTRUCTION MANUAL
1WMPD4002536A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AD-4406A and is the answer not in the manual?

Questions and answers

Related Manuals for A&D AD-4406A

Summary of Contents for A&D AD-4406A

  • Page 1 AD-4406A OP-03/04/05/07/08/11 WEIGHING INDICATOR INSTRUCTION MANUAL INSTRUCTION MANUAL 1WMPD4002536A...
  • Page 2 This Manual and Warning Definitions The warnings described in this manual have the following meanings: Disregarding the caution could result in loss of CAUTION important data or damage to the instrument Provides information useful for the user to operate the Note instrument.

  • Page 3: Table Of Contents

    Weighing Range Function ....................16 5.3.1. Setting the Division and Range ................... 17 5.4. Digital Linearization Function ..................17 5.5. Gravity Compensation Function..................18 5.5.1. The Gravity Acceleration Table ................... 19 5.6. Calibration Error Code List....................20 Page 1 AD-4406A Weighing Indicator...
  • Page 4 13.4. UFC Command ....................... 50 14. RS-422/RS-485, Relay Output (OP-03)..............52 15. Relay Output & Control Input (OP-05)..............54 16. 4-20 mA Analog Output (OP-07) ................55 17. Current Loop Output (OP-08)..................56 18. Specifications ......................58 18.1. Dimensions........................59 Page 2 AD-4406A Weighing Indicator...

  • Page 5: Compliance

    This appliance complies with the statutory EMC (Electromagnetic Compatibility) directive 89/336/EEC and the Low Voltage Directive 73/23/EEC for safety of electrical equipment designed for certain voltages. Note The displayed value may be adversely affected under extreme electromagnetic influences. Page 3 AD-4406A Weighing Indicator 1. Compliance...

  • Page 6: Introduction

    Introduction The AD-4406A is a compact weighing indicator that amplifies the signal from a load cell, converts it to digital data and displays it as a mass value. This indicator has the following performance: Input sensitivity: ......0.15 µV/division Maximum display: ...... 40000 divisions Display update rate:....

  • Page 7: Installation And Precautions

    Installation and Precautions 3.1. Installation and Precautions The AD-4406A weighing indicator is a precision electronic instrument. Handle the indicator carefully. The operating temperature is -10 to +40 to 104 ). Do not install the indicator in direct sunlight. A malfunction or other problems may be caused by an unstable power source including momentary power failure or instantaneous noise.

  • Page 8: The Load Cell Connections

    EXC+ and SIG-. resistor In Case of Adding an Offset Voltage to the Output When the zero output is too small, add a resistor between EXC+ and SIG+. Additional resistor Page 6 AD-4406A Weighing Indicator 3. Installation and Precautions...

  • Page 9: Verifying Load Cell Output And Input Sensitivity

    Do not remove any screws other than described below. Step 1 Remove the batteries or AC adapter from the indicator. Step 2 Secure the stand to both slide-rails with the bolts provided. 3. Installation and Precautions Page 7 AD-4406A Weighing Indicator...

  • Page 10: Description Of Panels And Symbols

    Description of Panels and Symbols 4.1. Front Panel Description AD-4406A WEIGHING INDICATOR ZERO TARE ENTER CAPACITY C A L . Name Description STABLE Indicates when the display is stable. Indicates when the weight is the net weight. ZERO Indicates when the displayed weight is in the Zero range.

  • Page 11: Rear Panel Description

    Battery is low, change batteries immediately. BATT Low Battery, change batteries immediately. Example of an error display. 4.4. Accessories Instruction manual Load cell plug JM-NJC-207-PF Accessories Capacity label Annunciator label Page 9 4. Description of Panels and Symbols AD-4406A Weighing Indicator...

  • Page 12: Calibration

    When setting values, increments the value or displays another setting. Displays another setting. Proceeds to the next step without changing the set value. Stores the set value and then proceeds to the next step. ENTER Page 10 5. Calibration AD-4406A Weighing Indicator...

  • Page 13: Calibration Procedure

    When CALSEt is displayed, enter this mode by pressing the ENTER key. Specify the range and unit. Single Range Specify the resolution, decimal point position and format. ↓ Specify the weighing capacity. Page 11 5. Calibration AD-4406A Weighing Indicator...

  • Page 14: Specifying The Range And Unit

    Press the ENTER key to store the parameters and proceed to the next step. When pressing the ESC key, regardless of what is displayed, the indicator will proceed to the next step without changing the parameters. Page 12 5.2. Calibration Procedure AD-4406A Weighing Indicator...

  • Page 15: Specifying The Weighing Capacity Of The First Range

    Avoid direct sunshine or near the outlet of an air conditioner. Do not install the scale (indicator) where there is a strong magnetic field. Step 7 Turn the display on and leave it for several minutes. Page 13 5.2. Calibration Procedure AD-4406A Weighing Indicator...

  • Page 16: Zero Calibration

    Weighing a maximum The method to weigh a mass To step 14 capacity mass equivalent to the maximum capacity. The numerical way to enter a load cell Digital input To step 16 output voltage. Page 14 5.2. Calibration Procedure AD-4406A Weighing Indicator...

  • Page 17: Exiting The Calibration Mode

    CAL key..To store the parameters and display CALoFF . Proceed to the next step. ESC key ..To store the parameters temporarily. Proceed to the CAL 0 display. Turn display off Page 15 5.2. Calibration Procedure AD-4406A Weighing Indicator...

  • Page 18: Weighing Range Function

    The second range, division 0.1 kg. division 0.02 kg division 0.1 kg -40 kg 0 kg 50 kg 60 kg Net Tare value 90 kg 100 kg 40 kg Weighing value 5.3. Weighing Range Function Page 16 AD-4406A Weighing Indicator...

  • Page 19: Setting The Division And Range

    Step 6 If you include a 2nd and 3rd middle point, repeat steps 3, 4, 5 for each. If you finish this function, proceed to step 7. Step 7 Perform step 11 of "5.2.9. Span Calibration" immediately. Page 17 AD-4406A Weighing Indicator 5.4. Digital Linearization Function...

  • Page 20: Gravity Compensation Function

    Step 4 Now G xxxx is displayed. Press the CAL key to store the parameters. CALoFF is displayed. Proceed to step 5. Step 5 Press the ON/OFF key to turn the display off. Page 18 5.5. Gravity Compensation Function AD-4406A Weighing Indicator...

  • Page 21: The Gravity Acceleration Table

    9.798 m/s Lisbon 9.801 m/s Vancouver, BC 9.809 m/s London (Greenwich) 9.812 m/s Washington DC 9.801 m/s Los Angeles 9.796 m/s Wellington NZ 9.803 m/s Madrid 9.800 m/s Zurich 9.807 m/s Page 19 5.5. Gravity Compensation Function AD-4406A Weighing Indicator...

  • Page 22: Calibration Error Code List

    An incorrect mass is selected at the digital linearization function. Err 13 Select a mass of the following relation. lnr 1 < lnr 2 < lnr 3. G Err An unacceptable value was selected in the gravity acceleration function. Page 20 AD-4406A Weighing Indicator 5.6. Calibration Error Code List...

  • Page 23: Functions

    ENTER key . To store a parameter and proceed to step 1. ENTER ESC key ..To proceed to step 1 without changing the parameter. Weighing Display off Press the ON/OFF key to turn the display off. This stores the changes. Page 21 AD-4406A Weighing Indicator 6. Functions...

  • Page 24: F-Functions

    Three times accumulation timing If CF00 is 1, then only 2 or 3 Four times can be selected for F03. d: division (weighing interval) of the first range s: second *: Initial settings Page 22 AD-4406A Weighing Indicator 6.2. F-Functions...
  • Page 25 NET/GROSS work. 4 F1 key Use the function to avoid 5 F2 key unintentional operation of 6 6 ON/OFF key keys in the table at the left. *: Initial settings 6.2. F-Functions Page 23 AD-4406A Weighing Indicator...
  • Page 26 Inhibit region for Above 10 d Do not set F21=0 when Auto accumulation Above 20 d accumulation (F20=21) Above 50 d d: division (weighing interval) of the first range *: Initial settings Page 24 6.2. F-Functions AD-4406A Weighing Indicator...
  • Page 27 Hold Function Item Parameter Description No hold Manual hold Hold mode Auto hold Manual/auto hold 0.0 to Averaging time by 0.1second step Initial setting is Averaging time (0.0:hold at averaging start) *: Initial settings 6.2. F-Functions Page 25 AD-4406A Weighing Indicator...
  • Page 28 2 The data number (parameter 3) increments automatically with each serial data output from 1 to 99999 (the next of 99999 is 1). The starting number can be set by the keys (F2 + NET/GROSS). Page 26 6.2. F-Functions AD-4406A Weighing Indicator...
  • Page 29 0.5 second 1.0 second Delay for continual data 1.5 seconds 2.0 seconds Not used Command address Used (Address selected at F06) Approx. 1 second Time out No limitation CR, LF Terminator *: Initial settings Page 27 6.2. F-Functions AD-4406A Weighing Indicator...
  • Page 30 Object F38, F42 Operation This function can be used in the "Auto print mode" and "Manual print mode". When using a non-buffered printer, set to F42 3 and F43 1 (or F38 1). Page 28 6.2. F-Functions AD-4406A Weighing Indicator...

  • Page 31: Cf-Functions

    Power on ZERO (CF02) CF02=0 After power on, the weight display starts immediately. CF02=1,2,3 When the zero range is exceeded at power on, ------ is displayed. Press the ESC key to start the weight display. Page 29 6.3. CF-Functions AD-4406A Weighing Indicator...

  • Page 32: Function Keys F1 And F2

    Entering function settings F1 + NET/GROSS Displaying the accumulated data F2 + NET/GROSS Displaying and setting data number F2 + TARE Starting batch-weighing F2 + ON/OFF Changing the unit Page 30 AD-4406A Weighing Indicator 7. Function keys F1 and F2...

  • Page 33: Tare

    (normally). To enable tare with a negative gross value, select a CF04 parameter. Clearing Tare When pressing the TARE key while gross is zero, tare is cleared and gross is displayed. When zeroing with the ZERO key, tare is cleared. 8. Tare Page 31 AD-4406A Weighing Indicator...

  • Page 34: Accumulation

    The limitation of accumulation count is 999999. The limitation of total is 999999, ignoring the decimal point. If exceeding these limitations, the data is not accumulated. Example: Setting the decimal point to "0.0", the limitation is "99999.9". Page 32 9. Accumulation AD-4406A Weighing Indicator...

  • Page 35: Display And Operation

    Step 2 Press and hold the ZERO and +/- keys at the same time for more than 3 seconds. The display blinks once and the accumulated data is cleared. And the data number is initialized (1). Caution External input can not be used. Page 33 9. Accumulation AD-4406A Weighing Indicator...
  • Page 36 Step 2 If automatic output is set, the data is output once at that timing. Step 3 If manual output, by pressing the F2 key while the accumulated data is displayed, the data is output. Fixed data format : Page 34 9. Accumulation AD-4406A Weighing Indicator...

  • Page 37: Code Memory

    Code Memory The AD-4406A has four code memories (1 through 4). Each code memory stores a set of setpoints. The data is stored in non-volatile memory, and is not lost even if power is turned off. Memory number 0 is a temporary memory and the data is lost when power is turned off.

  • Page 38: Comparison

    Lo (Lower acceptable tolerance) : 2 (kg) not a negative value (3) TG (Target) : 50 (kg), Hi (Upper acceptable tolerance) : 2 (% of Target), Lo (Lower acceptable tolerance) : 4 (% of Target) not a negative value Page 36 AD-4406A Weighing Indicator 11.1. Weight Check Mode...

  • Page 39: Condition Formula For Comparison

    ..To select a code memory number. ESC key To return to the weight display without changing code memory. ENTER key To set the displayed code memory's setpoint and return to the weight display. Page 37 11.1. Weight Check Mode AD-4406A Weighing Indicator...
  • Page 40 Class 3 Comparator Unit 4 5-stage Setpoint HiHi LoLo Class Comparator Triangle 5 5-stage Setpoint Target HiHi LoLo Class Comparator Triangle 6 5-stage Setpoint Target HiHi LoLo Class Comparator Unit Triangle Page 38 11.1. Weight Check Mode AD-4406A Weighing Indicator...

  • Page 41: Setpoint Comparison

    Relay OK, 2, Net ≧ (Final - Preliminary) Relay LO, 3, Gross ＜ Zero band OVER/UNDER is judged always and the result is output to the display but not to the relay. Page 39 11.2. Setpoint Comparison AD-4406A Weighing Indicator...

  • Page 42: Simple Batch

    F23=20 : Either the STOP key is pressed or the Batch stop input is on F23=21 : Stable is detected after reaching Final Before reaching Final, the STOP key or Batch stop input forces weighing completion even if F23 is set to 21. Page 40 11.2. Setpoint Comparison AD-4406A Weighing Indicator...

  • Page 43: Setting The Parameters Of Setpoint Comparison

    Class 1 Comparator Triangle 11 Simple Setpoint Final Free fall Preliminary Over Under Batch Class 2 Comparator Triangle 12 Simple Setpoint Final Free fall Full Over Under Batch Class 3 Comparator Triangle Page 41 11.2. Setpoint Comparison AD-4406A Weighing Indicator...

  • Page 44: Hold Function

    Both Manual start and Automatic start. *inhibit region 0 +/- 5digits **stable detection Satisfied both F02 and F03 F28 determines the averaging time by 0.1second step. F28=0 holds the data at averaging start. Page 42 AD-4406A Weighing Indicator 12. Hold Function...
  • Page 45 Key Input and Command in the Hold State Release hold and perform key function: Keys: TARE, ZERO, SETPOINT, TOTAL Commands: MT, MZ, HC Continue hold and perform key functions Keys: NET/GROSS, Accumulation, Compare start/stop Commands: Other commands 12. Hold Function Page 43 AD-4406A Weighing Indicator...

  • Page 46: Rs-232C Interface (Op-04, Op-05, Op-08)

    Received data Signal ground Output Data set ready Pin 7 is connected to pin 8 Other Not used Case Shield (male contact) Bit Format data 7 bits data 8 bits Page 44 AD-4406A Weighing Indicator 13. RS-232C Interface (OP-04, OP-05, OP-08)

  • Page 47: Data Format

    When the received command can not be performed such as the "busy" state, the code " I " is sent back. In this case, insert a delay time. Electrical noise may be the cause of this error. Page 45 13.2. Data Format AD-4406A Weighing Indicator...

  • Page 48: Commands To Request Data

    When receiving this command, returns the displayed data immediately with format 1 or 2. Template RW,1 or RW, 2 Command Reply Format 1 (F34) or Format 2 (F35) Request Gross Data When receiving this command, returns the gross data immediately. Template Command Reply Page 46 13.3. Command Format AD-4406A Weighing Indicator...

  • Page 49: Commands To Control The Indicator

    Template Command Reply Tare Sets the current display to zero of the net data. Template Command Reply Clear Tare Data Clears the tare data and displays the gross data. Template Command Reply Page 47 13.3. Command Format AD-4406A Weighing Indicator...
  • Page 50 Disables the key switches. Once power off, no effect by this command. Template DK,n n: key switch number (0: all key, 1 - 6: refer to F-Function F12) Command Example: to disable TARE key Reply Page 48 13.3. Command Format AD-4406A Weighing Indicator...

  • Page 51: Commands To Set Parameters

    Starts averaging to hold. The reply differs with the conditions. Template Command Reply Averaging start Averaging now Hold Release the Hold Data Releases the hold data or stops averaging and goes to the normal weighing mode. Template Command Reply Page 49 13.3. Command Format AD-4406A Weighing Indicator...

  • Page 52: Commands To Set Serial Data Output Format (Ufc)

    Clear all of the data first, if storing a new set of parameters. The parameters in the stored data can not be changed partially. The various types of parameters and their descriptions are shown on the following page. Page 50 13.4. UFC Command AD-4406A Weighing Indicator...
  • Page 53 SF2,’ Welcome to A & D’$LF’Total weight ’$AN$TL$LF$LF Serial output data format 2, the strings ’ Welcome to A & D’ and line feed, the strings ’Total weight ’ accumulation count, total weight, and 2 sets of line feed. 13.4. UFC Command Page 51 AD-4406A Weighing Indicator...

  • Page 54: Rs-422/Rs-485, Relay Output (Op-03)

    Relay Output Terminals AC adapter Jack (AC adapter is provided with the OP-03) Note: Please confirm that the AC adapter type is correct for your local voltage and receptacle type. 14. RS-422/485, Relay Output (OP-03) Page 52 AD-4406A Weighing Indicator...
  • Page 55 AD-4406A #32 AD-4406A #32 Address F06=32 Address F06=32 Connect a terminator to the end connection. Internal termination resister is effective when the TRM terminal is connected to the RDB terminal. 14. RS-422/485, Relay Output (OP-03) Page 53 AD-4406A Weighing Indicator...

  • Page 56: Relay Output & Control Input (Op-05)

    Control input common Adaptable connector JA-TCP0586 (provided with the OP-05) Circuit Control input Relay output +7～9V COM (out) EXT3 680Ω EXT1 680Ω EXT2 DIN connector (in) 680Ω of OP-05 Page 54 AD-4406A Weighing Indicator 15. Relay Output & Control Input (OP-05)

  • Page 57: 20Ma Analog Output (Op-07)

    Press the ENTER key to 4m A store the setting value into memory. After this the F32 a F33 a F33 b F32 b display returns to selection of the Function number. Weight 16. 4-20mA Analog Output (OP-07) Page 55 AD-4406A Weighing Indicator...

  • Page 58: Current Loop Output (Op-08)

    Control input common Adaptable connector JA-TCP0586 (provided with the OP-08) Circuit Control input Relay output +7～9V COM (out) EXT3 680Ω Current loop output ＋ ～ DIN connector － ～ (in) of OP-08 Page 56 17. Current Loop Output (OP-08) AD-4406A Weighing Indicator...
  • Page 59 Header 2 and the unit selection are common to RS-232C (CF06, CF07). Space code (20h) Carriage return (0Dh) 8-digit data Terminator Line feed (0Ah) Unit Header 1 Header 2 CF06=0,1 CF06=2 CF07=0 CF07=1 2 digits 3 digits 17. Current Loop Output (OP-08) Page 57 AD-4406A Weighing Indicator...

  • Page 60: Specifications

    104 ) Operation humidity 85% R.H. (no condensation) Mass Approximately 650 g, excluding the batteries Dimensions 232 (W) x 130 (H) x 87 (D) mm, including protrusions Accessories Refer to "4.4. Accessories" Page 58 AD-4406A Weighing Indicator 18. Specifications...

  • Page 61: Dimensions

    18.1. Dimensions Unit: mm 18.1. Dimensions Page 59 AD-4406A Weighing Indicator...
  • Page 62 MEMO Page 60 AD-4406A Weighing Indicator...
