  • Page 2 © 2003 A&D Company Ltd. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, or translated into any language in any form by any means without the written permission of A&D Company Ltd. The contents of this manual and the specifications of the instrument covered by this manual are subject to change for improvement without notice.

  • Page 3: Table Of Contents

    CONTENTS 1. INTRODUCTION ..........................2 1-1 Description of the Options........................2 1-2 Accessories ............................3 2. FUNCTION TABLE ........................... 4 2-1 Structure and Sequence of the Function Table................... 4 2-2 Display and Keys ..........................4 2-3 Details of the Function Table....................... 5 3.

  • Page 4: Introduction

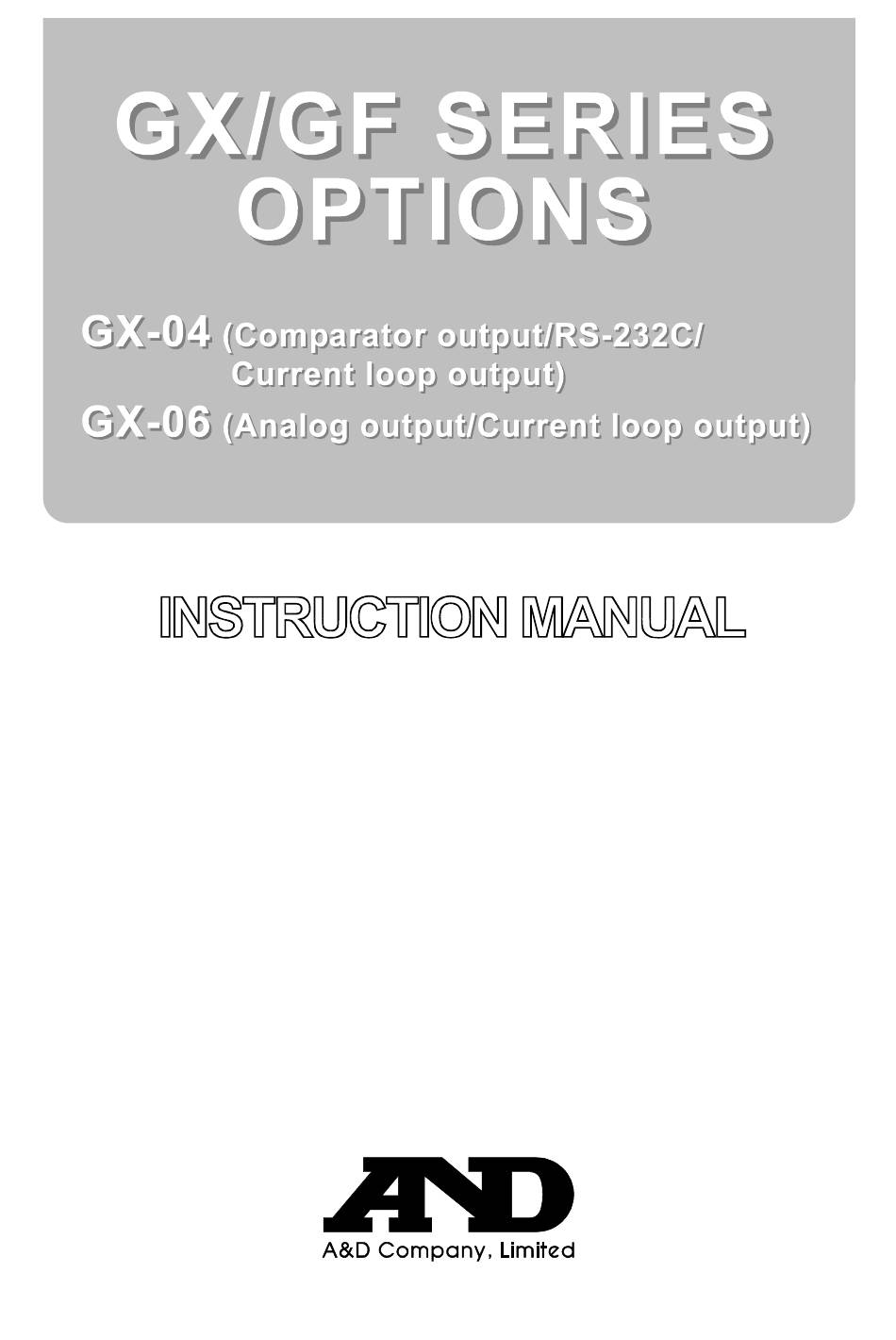

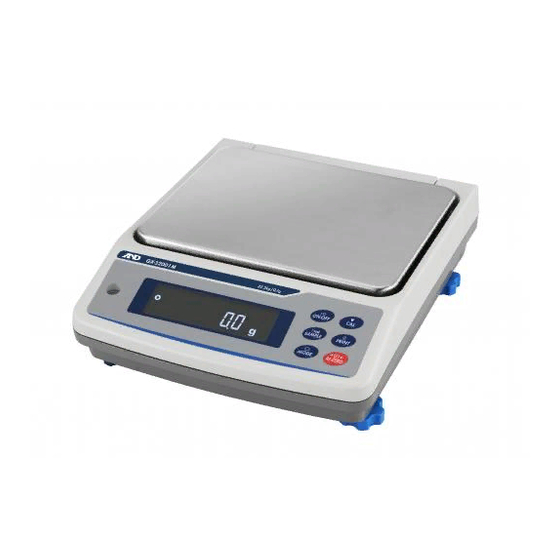

    1. INTRODUCTION This manual describes how the GX/GF series options, GX-04 and GX-06 work, and how to get the most out of it in terms of performance. Read this manual thoroughly before using the option and keep it at hand for future reference. 1-1 Description of the Options The description of the options is as follows: ? GX-04: Comparator output with a buzzer / RS-232C / Current loop output...

  • Page 5: Accessories

    ? Analog output Two modes are available: To convert the specified weight value digits to voltage, and to convert the value, in the range from zero to the weighing capacity, to voltage. Output voltage range selection: Using the slide switch located on the option panel, the output voltage range can be switched between 0-1 V and 0.2-1V.

  • Page 6: Function Table

    2. FUNCTION TABLE The function table reads or rewrites the parameters that are stored in the balance. When GX-04 or GX-06 is used, set the function table to specify the balance performance. These parameters are maintained in non-volatile memory, even if the AC adapter is removed. 2-1 Structure and Sequence of the Function Table The function table menu consists of two layers.

  • Page 7: Details Of The Function Table

    When an item is displayed, cancels the new parameter and displays the next class. When a class is displayed, exits the function table mode and returns to the weighing mode. 2-3 Details of the Function Table...

  • Page 10: Comparator Output (Gx-04)

    Caution The balance may not transmit the data completely at the specified refresh rate, depending on the baud rate or data added to the weighing data such as time, date and ID number. 3. COMPARATOR OUTPUT (GX-04) Comparator output, is the function to output the comparison results between the weighing data and upper/lower limit values.

  • Page 11: Using The Comparator Output

    OK (Comparator) No connection Housing Shield 3-2 Using the Comparator Output To use the comparator output, perform the following four steps. 1. Connect the peripheral to the option’s 7-pin DIN connector. 2. Set the “Comparator (Cp fnc)” of the balance function table. For details, see “2. FUNCTION TABLE”. 3.

  • Page 12: Setting The Upper And Lower Limit Values

    3-3 Setting the Upper and Lower Limit Values The results of the comparison are indicated by HI OK LO on the display. Operating conditions: ? No comparison ? Comparison when the weighing data is stable or overloaded, excluding “near zero” ? Comparison when the weighing data is stable or overloaded, including “near zero”...
  • Page 13 PRINT key To store the new setting and go to step 9. CAL key To cancel the new setting and go to step 9. 9 With Cp lnt displayed, press the PRINT key. The current setting is displayed. When the current setting is to be changed, change the setting using the following keys.

  • Page 14: Example Of Use

    When Pound/Ounce is selected as a weighing unit, enter the values in ounces for comparison. In the density mode, comparison is performed to the density obtained. 3-4 Example of Use The following example uses the AD-8951 comparator light, which is sold separately, to display the comparison result in red, green, or orange.

  • Page 15: Serial Output

    4. SERIAL OUTPUT 4-1 RS-232C (GX-04) Specifications The specifications of the RS-232C are as follows: Transmission system EIA RS-232C Transmission Asynchronous, bi-directional, half-duplex Data format Baud rate: 600, 1200, 2400, 4800, 9600 bps Data: 7 or 8 bits Parity: Even, Odd (Data 7 bits) None (Data 8 bits) Stop bit:...
  • Page 16 Circuit External input Pin 18 and pin 19 perform the same function as pressing the PRINT and RE-ZERO keys respectively by connecting each pin to pin 7 for at least 100 m second...

  • Page 17: Current Loop Output (Gx-04/Gx-06) Specifications

    4-2 Current Loop Output (GX-04/GX-06) Specifications The specifications of the current loop interface are as follows: Transmission system 20 mA current loop (Passive) Transmission Asynchronous, uni-directional (Only from the balance) Data format Baud rate: 600, 1200, 2400, 4800, 9600 bps Data: 7 or 8 bits Parity:...

  • Page 18: Connection To The Ad-8121 Printer

    When “MODE 3” of the AD-8121 printer is used. dout 5-td 0-3 Factory setting Outputs time and date as necessary. (Only for the GX series) dout 5-id 0, 1 Factory setting Outputs ID number as necessary. dout at-f 0, 1 Factory setting Performs auto feed as necessary.

  • Page 19: Description Of The Item "Data Output Mode

    ? AC adapter or alkaline battery. 4-4 Description of the Item “Data output mode” The parameter setting of the “Data output mode ( prt )” applies to the performance when the “Data memory ( data )” parameter is set to “2” (to store the weighing data) and when the data is transmitted using the RS-232C interface.
  • Page 20 Interval time dout 5-td1, 2, or 3 Adds the time and date. Optional setting (Only for the GX series) Example “For periodical weighing without a computer command and to output all of the data, to a computer, at one time”...

  • Page 21: Description Of The Item "Data Format

    4-5 Description of the Item “Data format” 5if type 0 A&D standard format This format is used when the peripheral equipment can receive the A&D format. If an AD-8121 is used, set the printer to MODE 1 or 2. ? This format consists of fifteen characters excluding the terminator. ? A header of two characters indicates the balance condition.
  • Page 22 5if type 3 MT format ? A header of two characters indicates the balance condition. ? The polarity sign is used only for negative data. ? The weighing data uses spaces in place of the leading zeros. ? The character length of this format changes dependent upon the unit 5if type 4 NU (numerical) format This format outputs only numerical data.

  • Page 23: Description Of The Data Format Added To The Weighing Data

    ? When CSV format (5if type 5) is selected, the period ( . ) is replaced with a comma ( , ). dout 5-td 2 Date (Only for the GX series) ? The date output order can be changed in “Clock (Cl adj)”. Outputs the year in four-digit format.

  • Page 24: Data Format Examples

    4-7 Data Format Examples...

  • Page 25: Using Windows Communication Tools (Winct)

    Note When “Pound Ounce” is selected, the data is output with the unit of ounce (oz). 4-8 Using Windows Communication Tools (WinCT) When Windows is used as an operating system in a personal computer, the provided WinCT software can be used to transmit the weighing data to the personal computer. The WinCT has two communication methods: “RsCom”...
  • Page 26 the WinCT instruction manual. RsCom ? Can transmit commands to control the balance. ? Can make bi-directional communication between the balance and a personal computer using the RS-232C interface. ? Can display or store the data using a text file format. Can also print the data using a printer connected to the personal computer.

  • Page 27: Commands

    With the “RsKey” test mode function, a personal computer can be used as an external weight indicator for the balance. (To do this, set the balance data output mode to stream mode.) 4-9 Commands Command list Commands to query weighing data Cancels the S or SIR command.
  • Page 28 “nnn” indicates a three-digit numerical value. Commands to control the counting mode UW: ??? Set the unit e.g., “UW+0.123 g” Be sure to set the unit mass Set the unit mass to 0.123 g. mass in grams. When the “Data memory ( data )”...

  • Page 29: Acknowledge Code And Error Codes

    4-10 Acknowledge Code and Error Codes When the “Serial interface function ( 5if )” parameter is set to “erCd 1”, the balance outputs <AK> code or an error code for each command as follows: <AK> (06h) Acknowledge in ASCII code. ? When the balance receives a command to request data and can not process it, the balance transmits an error code (EC, Exx).

  • Page 30: Settings Related To Rs-232C

    4-12 Settings Related to RS-232C Concerning the RS-232C, the balance has two functions: “Data output ( dout )” and “Serial interface ( 5if )”. Set each function as necessary. 5. ANALOG OUTPUT (GX-06) 5-1 Analog Output (GX-06) Specifications The specifications of the analog output unit (GX-06) are as follows: 100 ? or less Output impedance ? 0.3% or less...

  • Page 31: Analog Output (Aout)

    Note To use current loop, an external power supply that provides 20 mA is required. The maximum rated voltage of the current loop is 25 V. Pin assignments Pin No. Description No connection Analog GND (0 V) Sending loop No connection Sending loop No connection Analog output...
  • Page 32 Setting example Notes The invisible high-order digits are regarded as zero. The invisible least digit is regarded as zero (when the minimum weighing value is turned off using the SAMPEL key). When an 2 or an 3 is set: Model Full scale Model Full scale...

  • Page 33: Switching Output Voltage

    Note “Full scale” of the full scale output mode indicates the full scale values shown in the tables above. The output voltage may exceed 1.000 V, depending on the weighing data. For example, when the GX-2000 displays 2100 g, the output voltage is 1.05 V. 5-3 Switching Output Voltage The output voltage can be switched using the slide switch on the GX-06 panel.

  • Page 34: Fixed Output Voltage

    generated. Turn the SPAN control so that the voltmeter indicates 1.000 V. 3. Repeat steps 1 and 2 until the correct output voltage is obtained. 5-5 Fixed Output Voltage The output voltage is fixed under the following conditions: 1. During operations other than weighing 0 V (or 0.2 V) (e.g., the display-off state, calibration) 2.
