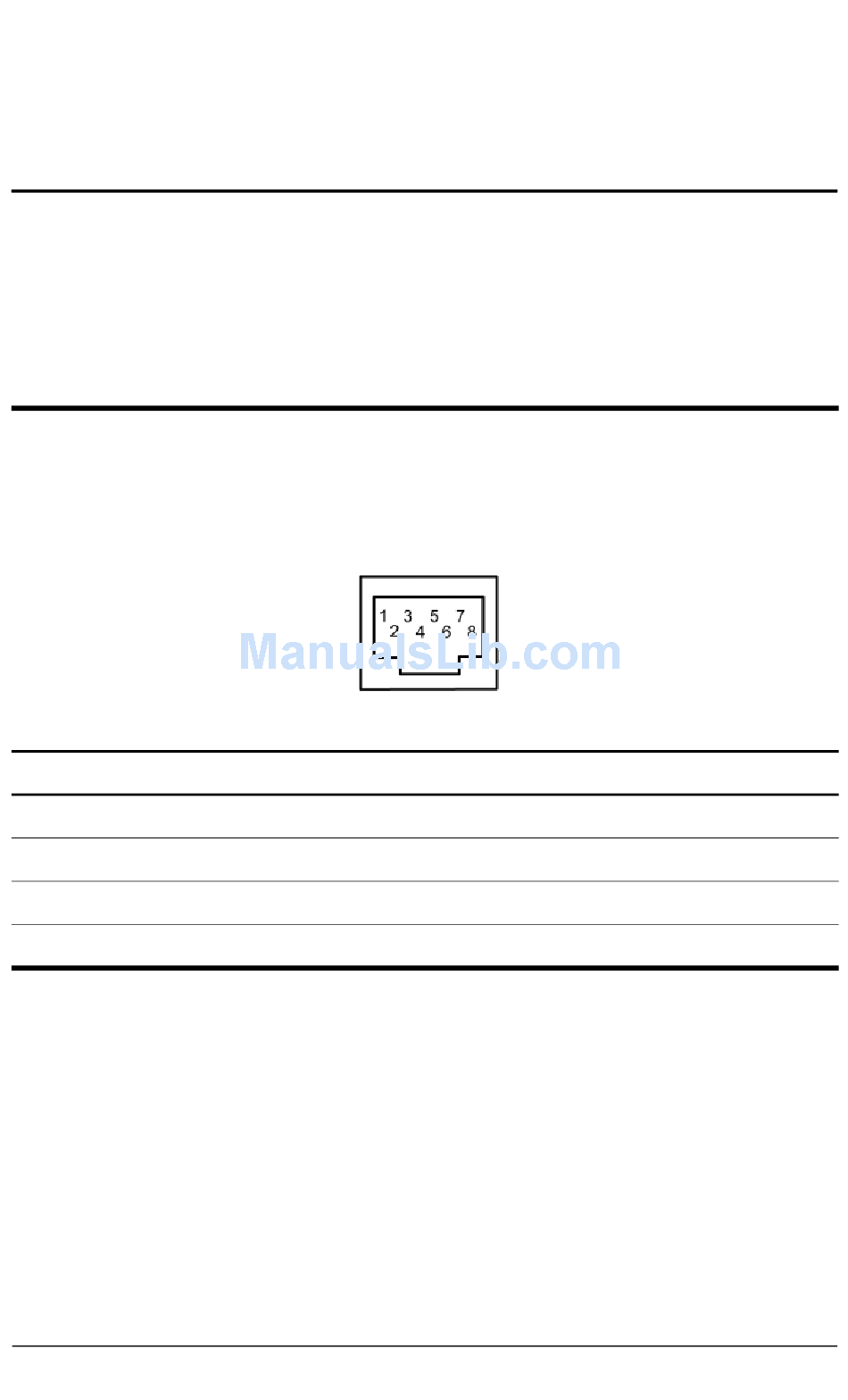

Connector Pin Assignments

Pin
Signal
1
Transmit +
2
Transmit –
3
Receive +
4
Unused
Maintenance and Service Guide
Table A-1
RJ-45 Network Interface
Pin
Signal
5
Unused
6
Receive –
7
Unused
8
Unused
A
A–1
