Removal and Replacement Procedures

5.19 Speaker/Microphone

✎
The speaker/microphone is included in the Miscellaneous
Plastics Kit, spare part number 325528-001, and is also
included with the top cover, spare part number 325510-001.
1. Prepare the notebook for disassembly
remove the following components:
❏
❏
❏
❏
2. Turn the top cover upside down with the TouchPad facing
toward you.
3. Remove the two PM2.0×4.0 screws 1 that secure the
speaker/microphone to the top cover.
4. Remove the speaker/microphone 2 from the top cover.

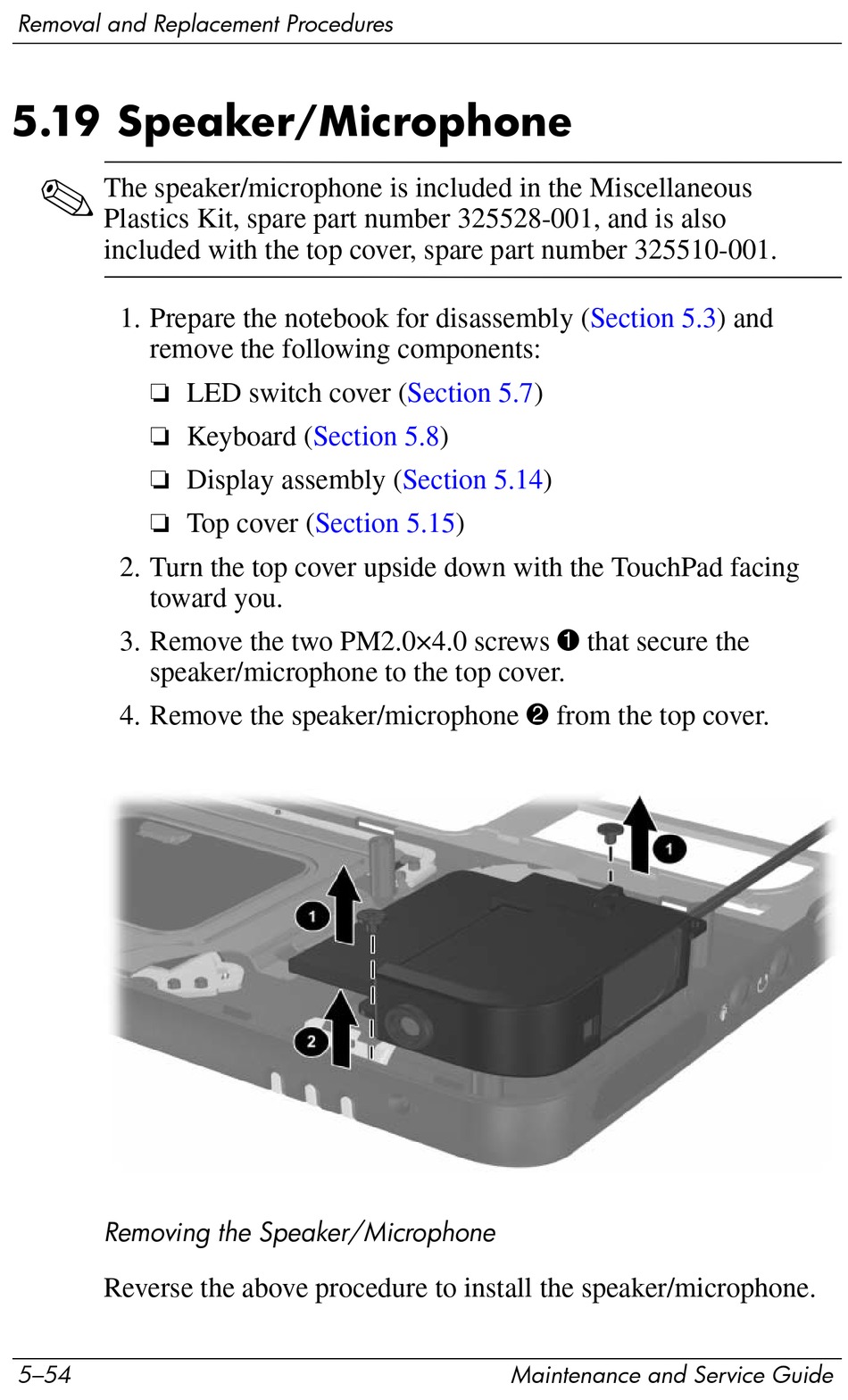

Removing the Speaker/Microphone
Reverse the above procedure to install the speaker/microphone.
