Interconnect bay numbering and device mapping

•

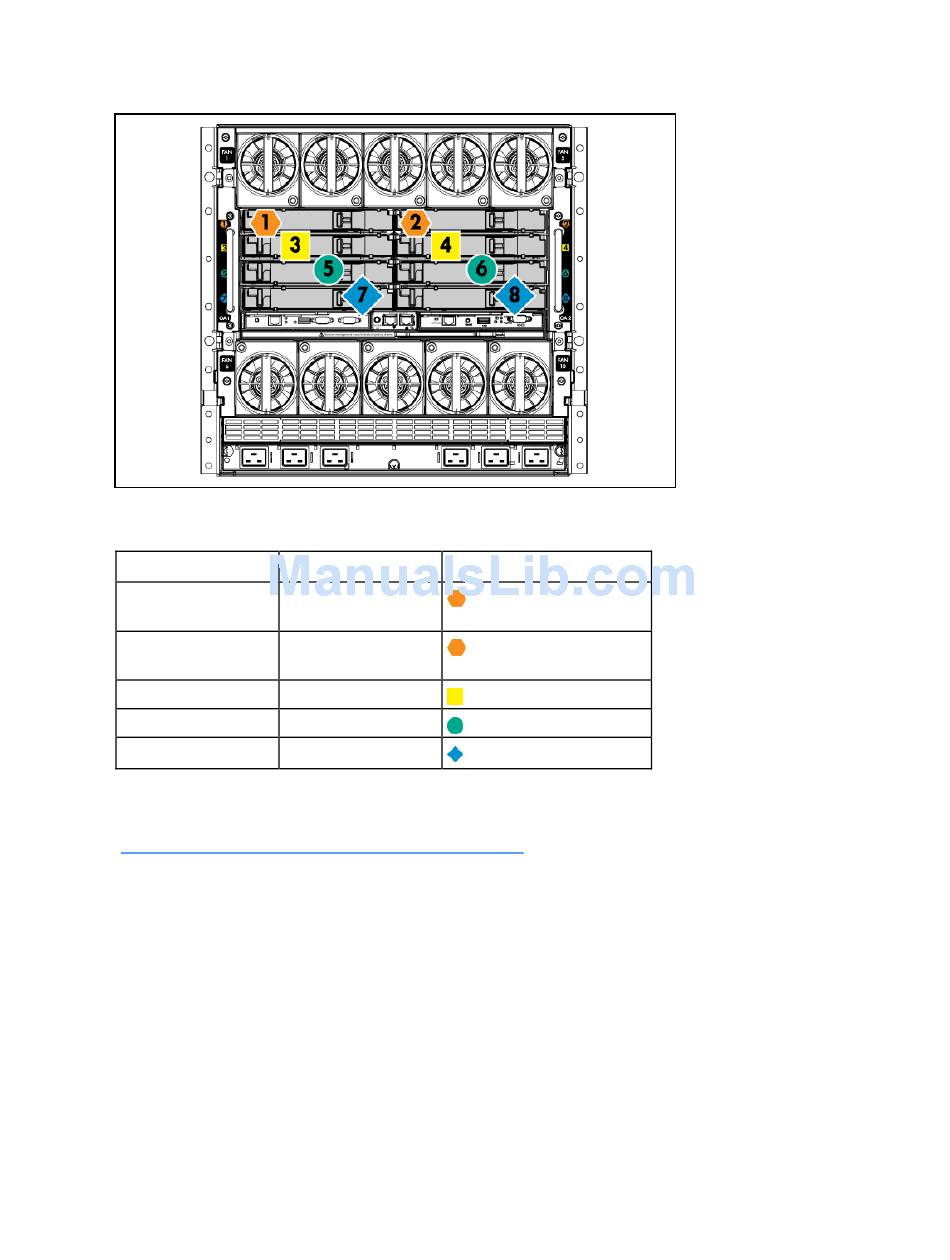

HP BladeSystem c7000 Enclosure
To support network connections for specific signals, install an interconnect module in the bay
corresponding to the embedded NIC or mezzanine signals.
Server blade signal
Flex-10 NIC 1
(embedded)
Flex-10 NIC 2
(embedded)
Mezzanine 1
Mezzanine 2
For detailed port mapping information, see the HP BladeSystem enclosure installation poster or the
HP BladeSystem enclosure setup and installation guide on the HP website
(http://www.hp.com/go/bladesystem/documentation).
Interconnect bay Interconnect bay labels
1
2
3 and 4
5 and 6
7 and 8
Setup 15
