Front Panel Connectors

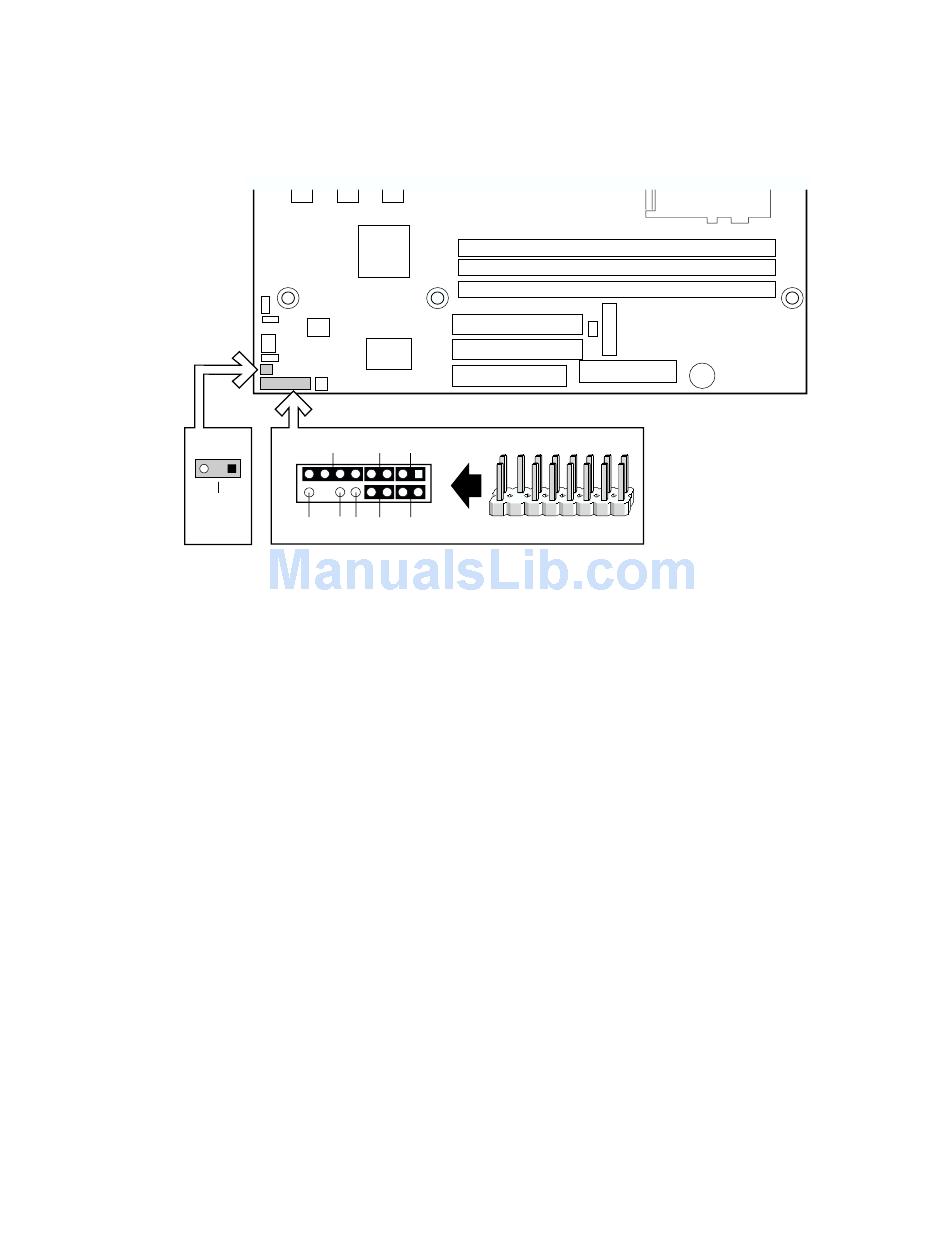

Figure 2 shows the location of the front panel connectors.
3 1
A
J9H4
Description
B C D
1
15
2
16
I H G
F E
A. Chassis intrusion connector
B. Reserved
C. Reset switch
D. Hard drive activity LED
E. Power LED
F. On/Off switch
G. No connect
H. Ground
I. +5 V
Figure 2. Front Panel Connectors
15 1
16 2
J9H3
OM12281
9
