3 HP SN6000B 16Gb FC Switch operation

This chapter discusses switch power, LEDs, maintenance, and management.

Powering the switch on and off

Power switches are located on the nonport side of the switch.
If the switch is mounted in a rack, you must remove the plenum to access the power switches.
Power is supplied to the switch as soon as the first power supply is connected and powered
To power the switch off, power off both power supplies by setting each AC power switch to
O. All devices are returned to their initial state the next time the switch is powered on.


The switch LEDs indicate system activity and status. There are three LED states: no light, a steady
light, and a flashing light. Flashing lights can be slow, fast, or flickering. The lights are green or
The LEDs can flash green or amber during boot, POST, or other diagnostic tests. This is normal; it
does not indicate a problem unless the LEDs do not indicate a healthy state after all boot processes
and diagnostic tests are complete.
Figure 14 (page 28)
arranged left to right and correspond to the upper and lower ports in each pair. See

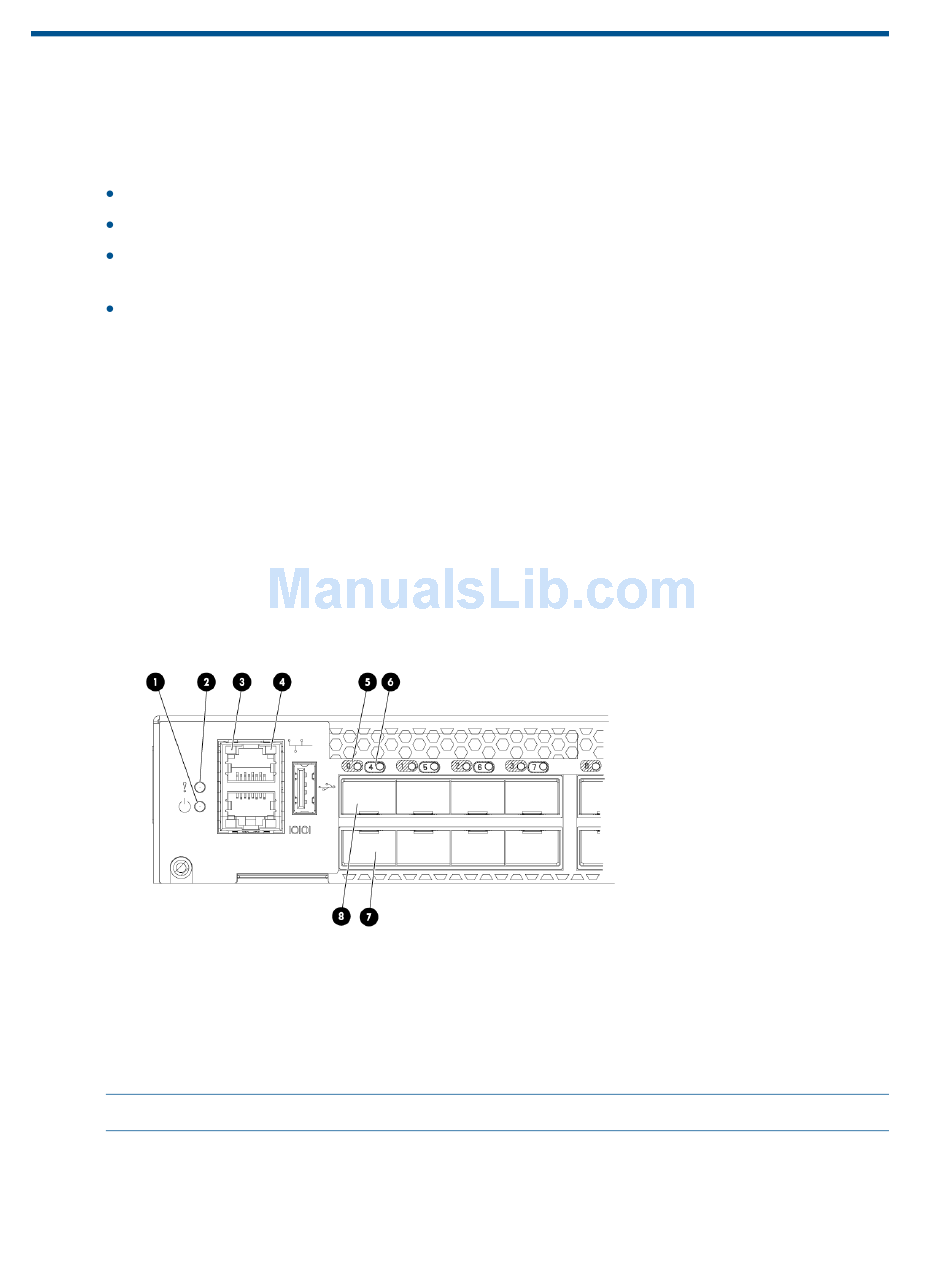

Figure 14 Port side of the switch
1. System power LED
2. System status LED
3. Ethernet port activity LED
4. Ethernet port speed LED
The two LEDs on the serial console port are nonfunctional.
Table 3 (page 29)
HP SN6000B 16Gb FC Switch operation
shows the port side of the switch. The port status LEDs for the FC ports are
describes the LEDs on the port side of the switch.
5. FC port status LED (port 0)
6. FC port status LED (port 4)
7. FC port 4
8. FC port 0
Figure 1 (page
