AT-FS705LE
10/100Base Ethernet Switch

Installation Guide

PN 613-50138-00 Rev B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT FS705LE AT-FS705LE AT-FS705LE and is the answer not in the manual?

Questions and answers

Related Manuals for Allied Telesis AT FS705LE AT-FS705LE AT-FS705LE

Summary of Contents for Allied Telesis AT FS705LE AT-FS705LE AT-FS705LE

  • Page 1: Installation Guide

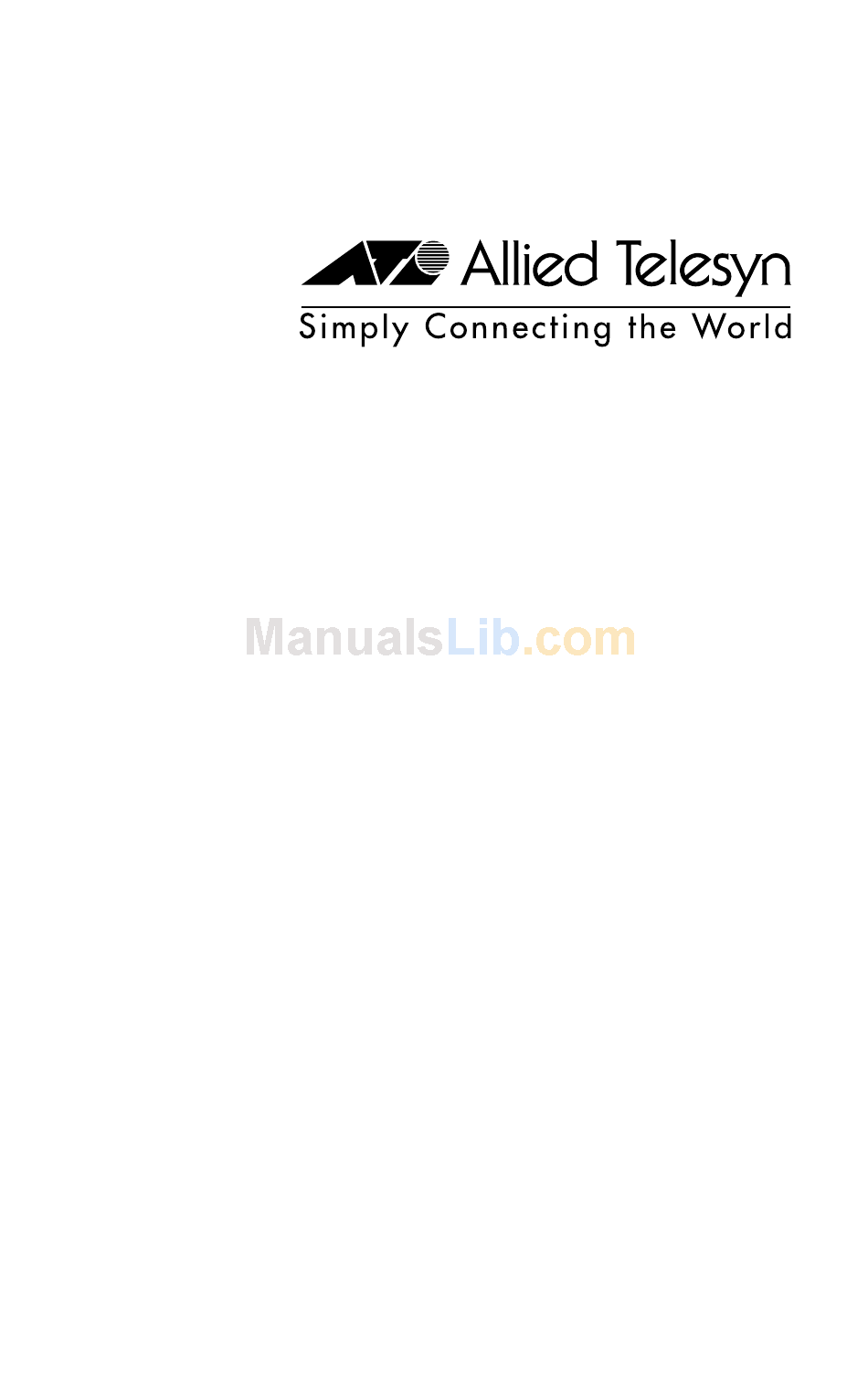

    AT-FS705LE 10/100Base Ethernet Switch Installation Guide PN 613-50138-00 Rev B...
  • Page 2 Copyright  2000 Allied Telesyn International, Corp. 960 Stewart Drive Suite B, Sunnyvale CA USA 94085 All rights reserved. No part of this publication may be reproduced without prior written permission from Allied Telesyn International, Corp. Ethernet is a registered trademark of Xerox Corporation. All other product names, company names, logos or other designations mentioned herein are trademarks or registered trademarks of their respective owners.

  • Page 3: Electrical Safety And Emission Statement

    Electrical Safety and Emission Statement Standards: This product meets the following standards. U.S. Federal Communications Commission DECLARATION OF CONFORMITY Manufacture Name: Manufacture Address: Manufacture Telephone: Declares that the product: Model Number: This product complies with FCC Part 15B, Class B Limits: This device complies with part 15 of the FCC Rules.
  • Page 4 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Changes and modifications not expressly approved by the manufacturer or registrant of this equipment can void your authority to operate this equipment under Federal Communications Commission rules.
  • Page 5 Belangrijk: Appendix A bevat vertaalde veiligheidsopmerkingen voor het installeren van deze apparatuur. Wanneer u de voor vertaalde veiligheidsinstructies in uw taal. Important: L'annexe A contient les instructions de sécurité relatives à l'installation de cet équipement. Lorsque vous voyez le symbole consulter la traduction de ces instructions dans votre langue.

  • Page 7: Table Of Contents

    Table of Contents Electrical Safety and Emission Statement... iii Table of Contents ...vii Welcome to Allied Telesyn ... ix Where to Find Web-based Guides ... ix Document Conventions ... ix Contacting Allied Telesyn ...x Online Support ...x Telephone or Fax Support ... xi E-mail Support ...xii Returning Products ...xii FTP Server...
  • Page 8 Installing the Switch ...9 Verifying the Package Contents ...9 Selecting a Site ...10 Reviewing Safety Guidelines ...11 Installing the Unit on a Desktop ...13 Installing the Unit on a Wall...14 Verifying and Troubleshooting the Installation...16 Warranty Registration ...18 Technical Specifications ...19 Appendix A Translated Safety and Emission Information ...21...

  • Page 9: Welcome To Allied Telesyn

    Welcome to Allied Telesyn This guide contains instructions on how to install an Allied Telesyn AT-FS705LE Ethernet Switch. Where to Find Web-based Guides The Allied Telesyn web site at www.alliedtelesyn.com provides you with an easy way to access the most recent documentation and technical information for all of our products.

  • Page 10: Contacting Allied Telesyn

    Note A note provides additional information. Caution A caution indicates that performing or omitting a specific action may result in equipment damage or loss of data. Warning A warning indicates that performing or omitting a specific action may result in bodily injury.

  • Page 11: Telephone Or Fax Support

    Telephone or Fax Support For technical support via fax, please fill out the“Technical Support Fax Order” on page 35 and send it to the appropriate location listed below. Americas United States, Canada, Mexico, Central America, South America Tel: 1 (800) 428-4835 Fax: 1 (503) 639-3976 Asia...

  • Page 12: E-Mail Support

    E-mail Support United States and Canada TS1@alliedtelesyn.com Latin America, Mexico, Puerto Rico, Caribbean, and Virgin Islands latin_america@alliedtelesyn.com United Kingdom, Sweden, Norway, Denmark, and Finland support_europe@alliedtelesyn.com Returning Products Products for return or repair must first be assigned a Return Materials Authorization (RMA) number.

  • Page 13: Ftp Server

    Latin America, the Caribbean, Virgin Islands Tel: international code + 425-481-3852 Fax: international code + 425-483-9458 FTP Server If you need a device driver for an Allied Telesyn device and you know the name of the driver, you can download the software by connecting directly to our FTP server at ftp://gateway.centre.com.

  • Page 14: For Sales Or Corporate Information

    For Sales or Corporate Information For sales or corporate information contact Allied Telesyn at one of the following locations: Allied Telesyn International, Corp. 19800 North Creek Parkway, Suite 200 Bothell, WA 98011 Tel: 1 (425) 487-8880 Fax: 1 (425) 489-9191 Tell Us What You Think If you have any comments or suggestions on how we might improve this or other Allied...

  • Page 15: At-Fs705Le Fast Ethernet Switch

    AT-FS705LE Fast Ethernet Switch Overview The AT-FS705LE Ethernet Switch is a 10Base-T/100Base-TX unmanaged switch. The switch provides you with a simple, cost-effective solution for Ethernet switching between end nodes operating at either 10 or 100 Mbps. Figure 1 AT-FS705LE Ethernet Switch...

  • Page 16: Features

    Features The AT-FS705LE switch has the following features: ❑ Five auto-negotiating 10/100 Mbps twisted pair ports with RJ-45 connectors ❑ One Uplink port for connecting the AT- FS705LE switch to another switch or hub without a crossover cable ❑ IEEE 802.3 and IEEE 802.3u compliant ❑...

  • Page 17: Physical Description

    Uplink Figure 3 Back Panel Physical Description The physical description for the switch includes: ❑ Ports 1 through 4 ❑ Port 5 and the Uplink port ❑ LEDs ❑ Power supply Ports 1 Through 4 Ports 1 through 4 can operate at either 10 Mbps or 100 speed and in either full- or half-duplex mode.

  • Page 18: Port 5 And The Uplink Port

    The ports are IEEE802.3u Auto-Negotiation compliant. This means that the ports can automatically configure their speed and duplex mode to match the capabilities of the end nodes connected to the ports. Port 5 and the Uplink Port Port 5 and the Uplink port allow you to connect an additional workstation to the switch or interconnect the switch with another switch or hub, without the use of a cross-over cable.

  • Page 19: Front Panel Leds

    Front Panel LEDs Refer to Table 1 for a description of the device LEDs. Table 1 LED Functions LEDs Color Power Green 100M Green Link/Act Green AT-FS705LE Installation Guide Description On means there is power to the switch. Off means there is no power to the switch.

  • Page 20: Power Supply

    Table 1 LED Functions (continued) LEDs Color Fdx/Hdx Green Power Supply The AT-FS705LE uses an external power adapter that comes standard with the switch. Description On indicates the port is operating in full-duplex mode. Off indicates the port is operating in half-duplex mode.

  • Page 21: Network Topologies

    AT-FS705LE Installation Guide Network Topologies Figure 4 illustrates a network that consists of one AT-FS705LE Ethernet Switch used to interconnect four workstations and a server. In this configuration, the Uplink port is not used. Uplink Figure 4 Single AT-FS705LE Switch Topology...
  • Page 22 Figure 5 illustrates a network of two AT- FS705LE Ethernet Switches that have been interconnected using the Uplink ports on the two units. Using the Uplink ports eliminates the need for a cross-over cable to interconnect the switches. Uplink Uplink Figure 5 Multiple AT-FS705LE Ethernet Switch Topology...

  • Page 23: Installing The Switch

    Installing the Switch This section contains the procedures for installing the switch. Verifying the Package Contents Make sure that the package includes the following items. If any of the items are damaged or missing, contact your Allied Telesyn representative immediately. ❑...

  • Page 24: Selecting A Site

    Selecting a Site Make sure you observe the following site requirements: ❑ Make sure you are placing the switch in a dust-free and moisture-free environment. ❑ Do not block the ventilation openings on the unit. Allow at least 10 centimeters (4 inches) of space at the front and back of the unit for ventilation.

  • Page 25: Reviewing Safety Guidelines

    ❑ Observe the following cabling specifications: Connector Ports Type 1 through 5 RJ-45 Uplink RJ-45 Reviewing Safety Guidelines Please review the following safety guidelines before you begin to install the Ethernet switch. Warning Power cord is used as a disconnection device: To de- energize equipment, disconnect the power cord.
  • Page 26 Caution Air vents: The air vents must not be blocked on the unit and must have free access to the room ambient air for cooling. Caution Operating Temperature: This product is designed for a maximum ambient temperature of 40°C. Caution All Countries: Install this product in accordance with local and National Electric Codes.

  • Page 27: Installing The Unit On A Desktop

    Installing the Unit on a Desktop To install the switch on the desktop, perform the following procedure. To mount the unit on a wall, perform the steps “Installing the Unit on a Wall” on page 14. 1. Attach the four self-adhesive rubber feet to the bottom of the switch, positioning them in the indentations.

  • Page 28: Installing The Unit On A Wall

    5. Attach the data cables to the switch ports. Do not use a cross-over cable to connect workstations or servers to ports 1 through 5. Do not use a cross-over cable to connect another switch or hub to the Uplink port. Note You can use either port 5 or the Uplink port on an AT-FS705LE switch, but you...
  • Page 29 Note For wall-mount installation, you must supply the two screws and plastic anchors or other material necessary to physically mount the switch to the wall. 3. Install two plastic anchors and two pan-head screws into the wall, separated by 5 centimeters (approximately 2 inches).

  • Page 30: Verifying And Troubleshooting The Installation

    Do not use a cross-over cable to connect another AT-FS705LE switch to the Uplink port. Note You can use either port 5 or the Uplink port, but you cannot use both simultaneously. 8. Go to the procedure “Verifying and Troubleshooting the Installation” on page 16. Verifying and Troubleshooting the Installation The following procedure should be perform...
  • Page 31 ❑ Check to be sure that the power outlet has power by connecting another device to it. ❑ Try replacing the power adapter with another power adapter. 2. Check the Link/Act LED for each port. The LED should be lit steady or flashing. If a Link/Act LED is OFF, check the following: ❑...

  • Page 32: Warranty Registration

    ❑ Check to be sure that you are using Category 5 cable. Warranty Registration When you have finished installing the unit, you should register your product by completing the enclosed warranty card and sending it in, or by visiting our web site at www.alliedtelesyn.com/forms/ warranty.htm and completing the on-line registration.

  • Page 33: Technical Specifications

    Technical Specifications Standards Compatibility: Interfaces: Physical Dimensions: Power Supply: Power Consumption: Environment Specifications: Operating Temperature Storage Temperature Operating Humidity Storage Humidity Electromagnetic Emission: FCC Class B; AT-FS705LE Installation Guide IEEE 802.3, IEEE802.3u RJ-45 connectors W x D x H 100 x 78.5 x 26 mm (3.93 x 3.09 x 1.02 in.) Input: 7.5V @ 1A...

  • Page 35: Translated Safety And Emission Information

    Appendix A Translated Safety and Emission Information Important: This appendix contains multiple- language translations for the safety statements in this guide. Wichtig: Dieser Anhang enthält Übersetzungen der in diesem Handbuch enthaltenen Sicherheitshinweise in mehreren Sprachen. Vigtigt: Dette tillæg indeholder oversættelser i flere sprog af sikkerhedsadvarslerne i denne håndbog.
  • Page 36 Importante: questa appendice contiene traduzioni in più lingue degli avvisi di sicurezza di questa guida. Viktig: Dette tillegget inneholder oversettelser til flere språk av sikkerhetsinformasjonen i denne veiledningen. Importante: Este anexo contém traduções em vários idiomas das advertências de segurança neste guia.
  • Page 37 Standards: This product meets the following standards: U.S. Federal Communications Commission DECLARATION OF CONFORMITY Manufacture Name: Manufacture Address: Manufacture Telephone: Declares that the product: Model Number: This product complies with FCC Part 15B, Class B Limits: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device must not cause harmful interference, and (2) this device must accept any interference received, including...
  • Page 38 Changes and modifications not expressly approved by the manufacturer or registrant of this equipment can void your authority to operate this equipment under Federal Communications Commission rules. This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.
  • Page 39 USA/CANADA: Use a UL Listed/CSA Certified AC adapter of DC 7.5V, 1A. Normen: Dieses Produkt erfüllt die Anforderungen der nachfolgenden Normen. Hochfrequenzstörung WARNUNG: Bei Verwendung zu Hause kann dieses Produkt Funkstörungen hervorrufen. In diesem Fall müßte der Anwender angemessene Gegenmaßnahmen ergreifen. Störsicherheit Elektrische Sicherheit SICHERHEIT...
  • Page 40 Standarder: Dette produkt tilfredsstiller de følgende standarder. Radiofrekvens forstyrrelsesemission: EN55022 Klasse B ADVARSEL: I et hjemligt miljø kunne dette produkt forårsage radio forstyrrelse. Bliver det tilfældet, påkræves brugeren muligvis at tage tilstrækkelige foranstaltninger. Immunitet Elektrisk sikkerhed SIKKERHED ADVARSEL: DEN STRØMFØRENDE LEDNING BRUGES TIL AT AFBRYDE STRØMMEN.
  • Page 41 Eisen: Dit product voldoet aan de volgende eisen. RFI Emissie WAARSCHUWING: Binnenshuis kan dit product radiostoring veroorzaken, in welk geval de gebruiker verplicht kan worden om gepaste maatregelen te nemen. Immuniteit Electrische Veiligheid VEILIGHEID WAARSCHUWING: HET TOESTEL WORDT UITGESCHAKELD DOOR DE STROOMKABEL TE ONTKOPPELEN.OM HET TOESTEL STROOMLOOS TE MAKEN: de stroomkabel ontkoppelen.
  • Page 42 Normes: ce produit est conforme aux normes de suivantes. Emission d’interférences radioélectriques MISE EN GARDE : dans un environnement domestique, ce produit peut provoquer des interférences radioélectriques. Auquel cas, l’utilisateur devra prendre les mesures adéquates. Immunité Sécurité électrique DANGER DE FOUDRE DANGER: NE PAS MANIER le matériel ou les CÂBLES lors d’activité...
  • Page 43 Standardit: Tämä tuote on seuraavien standardien mukainen. Radioaaltojen häirintä VAROITUS: Kotiolosuhteissa tämä laite voi aiheuttaa radioaaltojen häiröitä, missä tapauksessa laitteen käyttäjän on mahdollisesti ryhdyttävä tarpeellisiin toimenpiteisiin. Kestävyys Sähköturvallisuus TURVALLISUUS HUOMAUTUS: VIRTAJOHTOA KÄYTETÄÄN VIRRANKATKAISULAITTEENA. VIRTA KATKAISTAAN irrottamalla virtajohto. PISTORASIAAN KYTKETTÄVÄ LAITE; pistorasia on asennettava laitteen lähelle ja siihen on oltava esteetön pääsy."...
  • Page 44 Standard: Questo prodotto è conforme ai seguenti standard. Emissione RFI (interferenza di radiofrequenza) AVVERTENZA: in ambiente domestico questo prodotto potrebbe causare radio interferenza. In questo caso potrebbe richiedersi all’utente di prendere gli adeguati provvedimenti. Immunità Sicurezza elettrica NORME DI SICUREZZA ATTENZIONE: IL CAVO DI ALIMENTAZIONE È...
  • Page 45 Sikkerhetsnormer: Dette produktet tilfredsstiller følgende sikkerhetsnormer. RFI stråling ADVARSEL: Hvis dette produktet benyttes til privat bruk, kan produktet forårsake radioforstyrrelse. Hvis dette skjer, må brukeren ta de nødvendige forholdsregler. Immunitet Elektrisk sikkerhet SIKKERHET FORSIKTIG: STRØMLEDNINGEN BRUKES TIL Å FRAKOBLE UTSTYRET. FOR Å DEAKTIVISERE UTSTYRET, må...
  • Page 46 Padrões: Este produto atende aos seguintes padrões. Emissão de interferência de radiofrequência AVISO: Num ambiente doméstico este produto pode causar interferência na radiorrecepção e, neste caso, pode ser necessário que o utente tome as medidas adequadas. Imunidade Segurança Eléctrica SEGURANÇA CUIDADO: O CABO DE ALIMENTAÇÃO É...
  • Page 47 Estándares: Este producto cumple con los siguientes estándares. Emisión RFI ADVERTENCIA: en un entorno doméstico, este producto puede causar radiointerferencias, en cuyo caso, puede requerirse del usuario que tome las medidas que sean convenientes al respecto. Inmunidad Seguridad eléctrica SEGURIDAD ATENCION: EL CABLE DE ALIMENTACION SE USA COMO UN DISPOSITIVO DE DESCONEXION.
  • Page 48 Standarder: Denna produkt uppfyller följande standarder. Radiostörning VARNING: Denna produkt kan ge upphov till radiostörningar i hemmet, vilket kan tvinga användaren till att vidtaga erforderliga åtgärder. Immunitet Elsäkerhet SÄKERHET VARNING: NÄTKABELN ANVÄNDS SOM STRÖMBRYTARE FÖR ATT KOPPLA FRÅN STRÖMMEN, dra ur nätkabeln. UTRUSTNING MED PLUGG.

  • Page 49: Technical Support Fax Order

    Appendix B Technical Support Fax Order Name __________________________________ Company _______________________________ Address ________________________________ City____________________________________ State/Province __________________________ Zip/Postal Code ________________________ Country ________________________________ Phone __________________________________ Fax ___________________________________ Incident Summary Model number of Allied Telesyn product I am using______________________________ Firmware release number of Allied Telesyn product ________________________________ Other network software products I am using (e.g., network managers) ________________...
  • Page 50 Brief summary of problem _______________ _______________________________________ Conditions (List the steps that led up to the problem. _________________________ _______________________________________ _______________________________________ Detailed description (Please use separate sheet) Please also fax printouts of relevant files such as batch files and configuration files. When completed, fax this sheet to the appropriate Allied Telesyn office.

  • Page 51: At-Fs705Le Installation Guide Feedback

    Appendix C AT-FS705LE Installation Guide Feedback Please tell us what additional information you would like to see discussed in this guide. You can fax or mail this form to the mailing address and fax number at the bottom of the page. I found the following the most valuable _______ ___________________________________________ ___________________________________________...
