Page 1: Installation Guide
AT-FS708LE/PoE Fast Ethernet Unmanaged Switch Installation Guide 613-002087 Rev. A... - Page 2 Telesis, Inc. be liable for any incidental, special, indirect, or consequential damages whatsoever, including but not limited to lost profits, arising out of or related to this manual or the information contained herein, even if Allied Telesis, Inc. has been...
-
Page 3: Industry Canada
AT-DC2552XS⁄L3 Enterprise Core Switch Installation Guide Electrical Safety and Emissions Standards This section contains the following: “US Federal Communications Commission” “Industry Canada” “Emissions, Immunity and Electrical Safety Standards” on page 4 “Translated Safety Statements” on page 4 US Federal Communications Commission Radiated Energy Note... - Page 4 Electrical Safety EN60950-1 (TUV), UL 60950-1 ( ), RCM, CE Mark Translated Safety Statements Important: The indicates that translations of the safety statement are available in the PDF document “Translated Safety Statements” posted on the Allied Telesis website at alliedtelesis.com/ support.
-
Page 5: Table Of Contents
Contents Preface ....................................6 Safety Symbols Used in this Document ..........................7 Contacting Allied Telesis ..............................8 Chapter 1: Product Description ............................9 Overview ..................................10 10/100Base-TX Twisted Pair Ports ........................10 PoE Capability................................11 LEDs ..................................11 DC Power Connector .............................12 Key Features .................................13 Power over Ethernet..............................14 Powered Device (PD).............................14... -
Page 6: Preface
Preface This manual is the installation and user’s guide for the AT-FS708LE/PoE switch. This Preface contains the following sections: “Safety Symbols Used in this Document” on page 7 “Contacting Allied Telesis” on page 8... -
Page 7: Safety Symbols Used In This Document
AT-FS708LE/POE Fast Ethernet Switch Installation and User’s Guide Safety Symbols Used in this Document This document uses the following conventions: Note Notes provide additional information. Caution Cautions inform you that performing or omitting a specific action may result in equipment damage or loss of data. -
Page 8: Contacting Allied Telesis
Contacting Allied Telesis If you need assistance with this product, you may contact Allied Telesis technical support by going to the Support & Services section of the Allied Telesis web site at alliedtelesis.com/support. You can find links for the following services on this page: ... -
Page 9: Chapter 1: Product Description
Chapter 1 Product Description This chapter contains the follows sections: “Overview” on page 10 “Key Features” on page 13 “Power over Ethernet” on page 14 “Ethernet Switching Basics” on page 15... -
Page 10: Overview

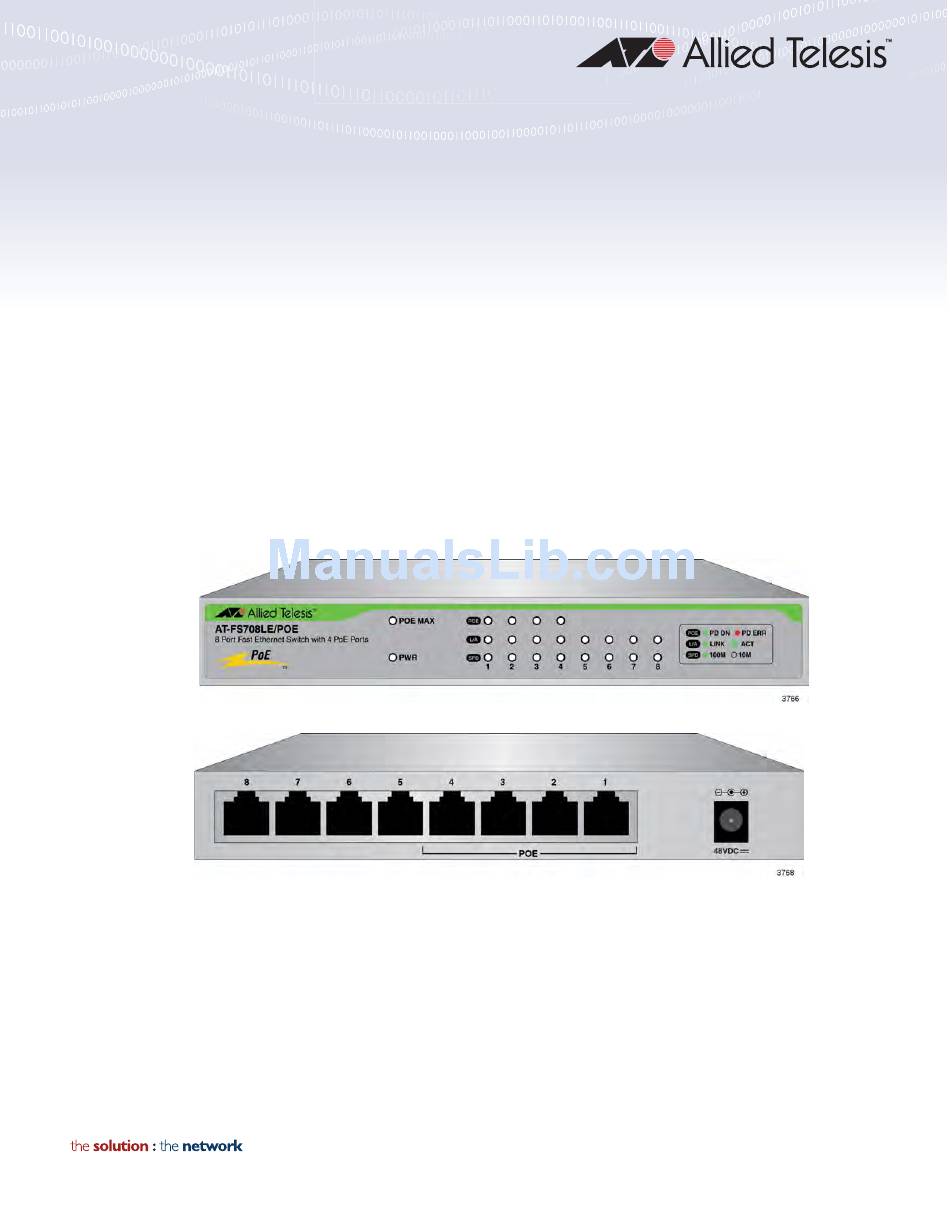

Figure 1 illustrates the front panel of the switch. Figure 1. AT-FS708LE/PoE Front Panel The AT-FS708LE/PoE switch is designed to be used on a desktop. The switch does not require software configuration or management. 10/100Base-TX The AT-FS708LE/PoE switch features eight twisted pair ports. -
Page 11: Poe Capability
Devices (PDs) or two class 3 PDs at a time. See “Power over Ethernet” on page 14. LEDs The LEDs on the front panel of the AT-FS708LE/PoE switch display status information. Table 1 on page 12 describes the LEDs on the AT-FS708LE/ PoE switch. -
Page 12: Dc Power Connector
The port is operating in 100Mbps. The port is operating in 10 Mbps. DC Power The AT-FS708LE/PoE switch has a single DC power supply socket on the back panel. Use the AC power adapter that came with the switch to supply Connector AC power. -
Page 13: Key Features
AT-FS708LE/PoE Switch Installation and User’s Guide Key Features The AT-FS708LE/PoE switch has the following key features: Eight 10/100 Mbps (10Base-T / 100Base-TX) twisted pair ports with RJ-45 connectors Four ports with PoE capability Auto-Negotiation (IEEE 802.3u-compliant) on all eight ports ... -
Page 14: Power Over Ethernet
PD. Power Budgeting The AT-FS708LE/PoE switch provides a maximum power of 15.4 W per port on four ports for a total power consumption of 30 W, while furnishing standard 10/100 Mbps Ethernet functionality. The switch supports four class 2 PDs on four PoE ports or two class 3 PDs on two PoE ports. -
Page 15: Ethernet Switching Basics
The twisted pair ports on the AT-FS708LE/PoE switch can operate in half- or full-duplex mode for 10/100 Mbps. They are IEEE 802.3u-compliant and use Auto-Negotiation to set the duplex mode setting for you automatically. - Page 16 pair port operating in half-duplex mode stops an end-node from transmitting data by forcing a collision. A collision on an Ethernet network occurs when two end-nodes attempt to transmit data using the same data link at the same time. A collision causes an end-node to stop sending data, wait for a brief period of time, and then retransmit the same data.
-
Page 17: Chapter 2: Installation
Chapter 2 Installation This chapter contains the following sections: “Reviewing Safety Precautions” on page 18 “Selecting a Site for the Switch” on page 20 “Planning the Installation” on page 21 “Unpacking the Switch” on page 22 ... -
Page 18: Reviewing Safety Precautions
indicates that translations of the safety statement are available in the PDF document “Translated Safety Statements” posted on the Allied Telesis website at alliedtelesis.com/support. Warning To prevent electric shock, do not remove the cover. No user- serviceable parts inside. This unit contains hazardous voltages and should only be opened by a trained and qualified technician. - Page 19 AT-FS708LE/POE Fast Ethernet Switch Installation and User’s Guide Warning Operating Temperature. This product is designed for a maximum ambient temperature of 40 degrees C. Note All Countries: Install product in accordance with local and National Electrical Codes. Note The power input must be provided from SELV source only, per IEC 60950.
-
Page 20: Selecting A Site For The Switch
Selecting a Site for the Switch Observe the following requirements when choosing a site for the AT-FS708LE/PoE switch: Make sure that the table is level and secure. The site should provide for easy access to the ports on the back of the switch and the LEDs on the front of the switch should be easily viewed. -
Page 21: Planning The Installation
AT-FS708LE/POE Fast Ethernet Switch Installation and User’s Guide Planning the Installation Table 3 contains the cabling specifications for the twisted pair ports. Table 3. Twisted Pair Cabling and Distances Maximum Speed Type of Cable Operating Distance 10 Mbps Category 3 or better unshielded... -
Page 22: Unpacking The Switch
3. Verify that the following hardware components are included in your switch package: One AT-FS708LE/PoE switch Rubber Feet for desktop installation AC adapter If any item is missing or damaged, contact your Allied Telesis sales representative for assistance. 22 22... -
Page 23: Installing The Switch On A Table Or Desktop
AT-FS708LE/POE Fast Ethernet Switch Installation and User’s Guide Installing the Switch on a Table or Desktop To install the switch on a table or desktop, perform the following procedure: 1. Remove all the items from the packaging. 2. Store the packaging material in a safe place. -
Page 24: Cabling The Switch
Cabling the Switch After setting up the switch on the desktop, connect twisted pair cables to the ports on the AT-FS708LE/PoE switch. When connecting a twisted pair cable to a port, observe the following guidelines: An RJ-45 connector should fit snugly into the port on the switch. -
Page 25: Powering On The Switch
AT-FS708LE/POE Fast Ethernet Switch Installation and User’s Guide Powering On the Switch The AT-FS708LE/PoE is operating with DC power input. Use the AC power adapter that came with the switch to supply AC power. To power on the switch, perform the following procedure: 1. - Page 26 Warning Power cord is used as a disconnection device: To de-energize equipment, disconnect the power cord. Caution Only use the AC adapter that is supplied with the unit. 26 26...
-
Page 27: Chapter 3: Troubleshooting
If you are still unable to resolve the problem after following the instructions in this chapter, contact Allied Telesis Technical Support for assistance. Refer to “Contacting Allied Telesis” on page 8. Check the PWR LED on the front of the switch. If the LED is OFF, indicating that the unit is not receiving power, do the following: ... -
Page 28: Appendix A: Technical Specifications
Appendix A Technical Specifications This appendix contains the following sections: “Physical Specifications,” next “Environmental Specifications,” next “Safety and Electromagnetic Emissions Certifications,” next “RJ-45 Twisted Pair Port Connectors” on page 30 Physical Specifications Dimensions: (W x D x H) 171 mm x 98 mm x 29 mm (6.7 in x 3.9 in x 1.1 in) Weight:... -
Page 29: Safety And Electromagnetic Emissions Certifications
AT-FS708LE/PoE Switch Installation and User’s Guide Safety and Electromagnetic Emissions Certifications FCC Part 15 Class A, CISPR 22 Class A, EN55022: 2006/A1: 2007 Class A Immunity EN55024 Electrical Safety UL 60950-1 (cULus), EN 60950-1 (TUV), CE Mark... -
Page 30: Rj-45 Twisted Pair Port Connectors
RJ-45 Twisted Pair Port Connectors This section lists the connectors and connector pinouts for the AT-FS708 Fast Ethernet switch and its components. Figure 6 illustrates the pin layout to an RJ-45 connector and port. Figure 6. RJ-45 Connector and Port Pin Layout Table 4 lists the RJ-45 pin signals when a twisted pair port is operating in the MDI configuration. - Page 31 AT-FS708LE/PoE Switch Installation and User’s Guide...
