Summary of Contents for Allied Telesis AT-FS710/5
-

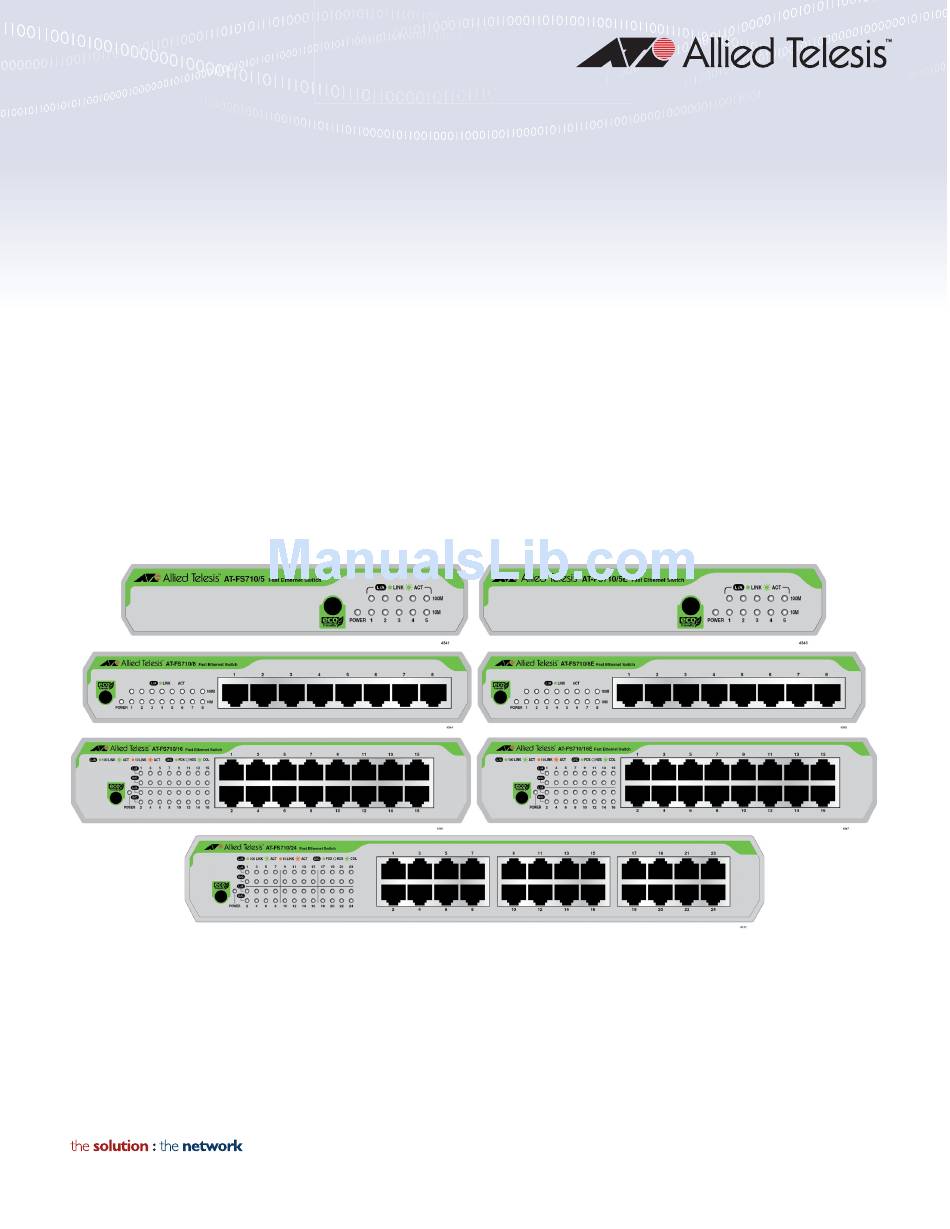

Page 1: Installation Guide
FS710 Series Fast Ethernet Unmanaged Switch AT-FS710/5 AT-FS710/5E AT-FS710/8 AT-FS710/8E AT-FS710/16 AT-FS710/16E AT-FS710/24 Installation Guide 613-002436 Rev. A... - Page 2 Telesis, Inc. be liable for any incidental, special, indirect, or consequential damages whatsoever, including but not limited to lost profits, arising out of or related to this manual or the information contained herein, even if Allied Telesis, Inc. has been...
-
Page 3: Federal Communications Commission Interference Statement
European Union Restriction of the Use of Certain Hazardous Substances (RoHS) in Electrical and Electronic Equipment This Allied Telesis RoHS-compliant product conforms to the European Union Restriction of the Use of Certain Hazardous Substances (RoHS) in Electrical and Electronic Equipment. Allied Telesis ensures RoHS conformance by requiring supplier Declarations of Conformity, monitoring incoming materials, and maintaining manufacturing process controls. -
Page 4: Radiation Exposure Statement
Manufacturer Name: Allied Telesis, Inc. Declares that the product: Fast Ethernet Unmanaged Switch Model Number: AT-FS710/5, AT-FS710/5E, AT-FS710/8, and AT-FS710/8E This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 5 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.) This Allied Telesis RoHS-compliant product conforms to the European Union Restriction of the Use of Certain Hazardous Substances (RoHS) in Electrical and Electronic Equipment. Allied Telesis ensures RoHS conformance by requiring supplier Declarations of Conformity, monitoring incoming materials, and maintaining manufacturing process controls.
- Page 6 Safety and Electromagnetic Emissions Certificates EMI Certifications FCC Part 15 Class A for the AT-FS710/16, AT-FS710/16E and AT-FS710/24 FCC Part 15 Class B for the AT-FS710/5, AT-FS710/5E, AT-FS710/8, and AT-FS710/8E VCCI Class A for the AT-FS710/16, AT-FS710/16E and AT-FS710/24 ...
-
Page 7: Table Of Contents
Installing the Switch on a Table or Desktop ........................34 Wall-Mounting the Switch ..............................35 Guidelines for Installing the Switch on a Wall ......................35 AT-FS710/5 & 5E Wall Installation .........................35 AT-FS710/8 & 8E Wall Installation .........................40 AT-FS710/16, /16E & /24 Wall Installation ......................44 Rack Mounting the Switch .............................49... - Page 8 Contents...
-
Page 9: List Of Figures
Figure 15: Wall Mounting Hole Locations for Left Facing Ports....................36 Figure 16: Wall Mounting Hole Locations for Up or Down Facing Ports................37 Figure 17: Aligning and Securing an AT-FS710/5 or 5E Switch onto Wall Screws ..............38 Figure 18: Removing the Rubber Feet ..........................41 Figure 19: Marking the Screw Hole Locations ........................42... - Page 10 Figures...
-
Page 11: List Of Tables
List of Tables Table 1: AT-FS710/5, AT-FS710/5E, AT-FS710/8 and AT-FS710/8E System and Port LEDs ..........24 Table 2: AT-FS710/16, AT-FS710/16E and AT-FS710/24 System and Port LEDs .............25 Table 3: Wall and Rack Mount Brackets ..........................26 Table 4: Twisted Pair Cabling and Distances ........................26 Table 5: Model vs Wall Mount Kit ............................35... -
Page 12: Preface
Preface This manual is the installation and user’s guide for the FS710 Series switches. This Preface contains the following sections: “Safety Symbols Used in this Document” on page 13 “Contacting Allied Telesis” on page 14 ... -
Page 13: Safety Symbols Used In This Document
FS710 Series Ehternet Switch Installation Guide Safety Symbols Used in this Document This document uses the following conventions: Note Notes provide additional information. Caution Cautions inform you that performing or omitting a specific action may result in equipment damage or loss of data. Warning Warnings inform you that performing or omitting a specific action may result in bodily injury. -
Page 14: Contacting Allied Telesis
Contacting Allied Telesis If you need assistance with this product, you may contact Allied Telesis technical support by going to the Support & Services section of the Allied Telesis web site at alliedtelesis.com/support. You can find links for the following services on this page: 24/7 Online Support - Enter our interactive support ... -
Page 15: Chapter 1: Product Description
Chapter 1 Product Description This chapter contains the follows sections: “Overview” on page 16 “Key Features” on page 23 “Ethernet Switching Basics” on page 27 ... -
Page 16: Overview
Front and Rear The front and rear panels for each switch model are as follows: Panels Figure 1 illustrates the AT-FS710/5 front panel. Figure 1. AT-FS710/5 Front Panel Figure 2 illustrates the AT-FS710/5 rear panel. Figure 2. AT-FS710/5 Rear Panel... -
Page 17: Figure 3: At-Fs710/5E Front Panel
FS710 Series Ehternet Switch Installation Guide Figure 3 illustrates the AT-FS710/5E front panel. Figure 3. AT-FS710/5E Front Panel Figure 4 illustrates the AT-FS710/5E rear panel. Figure 4. AT-FS710/5E Rear Panel... -
Page 18: Figure 5: At-Fs710/8 Front Panel
Figure 5 illustrates the AT-FS710/8 front panel. Figure 5. AT-FS710/8 Front Panel Figure 6 illustrates the AT-FS710/8 rear panel. 100-240VAC 4398 Figure 6. AT-FS710/8 Rear Panel 18 18... -
Page 19: Figure 7: At-Fs710/8E Front Panel
FS710 Series Ehternet Switch Installation Guide Figure 7 illustrates the AT-FS710/8E front panel. Figure 7. AT-FS710/8E Front Panel Figure 8 illustrates the AT-FS710/8E rear panel. 5VDC – 4397 Figure 8. AT-FS710/8E Rear Panel... -
Page 20: Figure 9: At-Fs710/16 Front Panel
Figure 9 illustrates the AT-FS710/16 front panel. Figure 9. AT-FS710/16 Front Panel Figure 10 illustrates the AT-FS710/16 rear panel. 100-240VAC 4398 Figure 10. AT-FS710/16 Rear Panel 20 20... -
Page 21: Figure 11: At-Fs710/16E Front Panel
FS710 Series Ehternet Switch Installation Guide Figure 11 illustrates the AT-FS710/16E front panel. Figure 11. AT-FS710/16E Front Panel Figure 12 illustrates the AT-FS710/16E rear panel. Figure 12. AT-FS710/16E Rear Panel... -
Page 22: Figure 13: At-Fs710/24 Front Panel
Figure 13 illustrates the AT-FS710/24 front panel. Figure 13. AT-FS710/24 Front Panel Figure 14 illustrates the AT-FS710/24 rear panel. 100-240VAC 4398 Figure 14. AT-FS710/24 Rear Panel 22 22... -
Page 23: Key Features
Flow control – Full duplex: IEEE 802.3x-compliant – Half duplex: back pressure Storage of up to 2K MAC addresses for the AT-FS710/5, AT-FS710/5E, AT-FS710/8 and AT-FS710/8E models. Storage of up to 8K MAC addresses for AT-FS710/16, AT-FS710/16E, ... -
Page 24: External Power Supply Dc Power Connector
To power the switch ON or OFF, connect or disconnect the the power adapter to or from an AC wall outlet. Note Allied Telesis recommends attaching the DC power cord to the switch before plugging the AC power adapter into an AC wall outlet. System and Port The LEDs on the front panel of the FS710 Series switch display status information. -
Page 25: Table 2: At-Fs710/16, At-Fs710/16E And At-Fs710/24 System And Port Leds
FS710 Series Ehternet Switch Installation Guide Table 1. AT-FS710/5, AT-FS710/5E, AT-FS710/8 and AT-FS710/8E System and Port LEDs (Continued) State Description Green A valid link is established on the port. Blinking Frames are being transmitted/received on 10M L/A Green the port. -
Page 26: Wall And Rack Mount Bracket Summary
If you plan on mounting the unit on a wall or in a rack, Table 3 Summary shows brackets options available. Table 3. Wall and Rack Mount Brackets Model Wall Mount Rack Mount AT-FS710/5 Use wall mounting holes These models are not rack and /5E on bottom of chassis. mountable. Use AT-BRKT-J23 wall AT-RKMT-J08 19”... -
Page 27: Ethernet Switching Basics
FS710 Series Ehternet Switch Installation Guide Ethernet Switching Basics An Ethernet switch interconnects network devices, such as workstations, printers, routers, and other Ethernet switches, so that they can communicate with each other by sending and receiving Ethernet frames. Duplex Mode Duplex mode refers to how an end node receives and transmits data. - Page 28 How a switch signals an end-node to stop transmitting data differs depending on the duplex mode of the end-node and switch port. A twisted pair port operating in half-duplex mode stops an end-node from transmitting data by forcing a collision. A collision on an Ethernet network occurs when two end-nodes attempt to transmit data using the same data link at the same time.
-
Page 29: Chapter 2: Installation
Chapter 2 Installation This chapter contains the following sections: “Reviewing Safety Precautions” on page 30 “Selecting a Site for the Switch” on page 32 “Unpacking the Switch” on page 33 “Installing the Switch on a Table or Desktop” on page 34 ... -
Page 30: Reviewing Safety Precautions
are available in the PDF document “Translated Safety Statements” posted on the Allied Telesis website at alliedtelesis.com/support. Warning To prevent electric shock, do not remove the cover. No user-serviceable parts inside. This unit contains hazardous voltages and should only be opened by a trained and qualified technician. - Page 31 FS710 Series Ehternet Switch Installation Guide Note All Countries: Install product in accordance with local and National Electrical Codes. Caution Power to the hub must be sourced only from the adapter. Warning Operating Temperature. This product is designed for a maximum ambient temperature of 50 degrees C.
-
Page 32: Selecting A Site For The Switch
switch for all other FS710 Series switch models except for the AT-FS710/5 and AT-FS710/5E which have the ports on the back of the switch. Ensure that the switch is positioned so that the LEDs on the front panel are easily viewed. -
Page 33: Unpacking The Switch
Switching AC/DC adapter - only for the FS710/xxE models with external DC power source If any item is missing or damaged, contact your Allied Telesis sales representative for assistance. Note If you plan on mounting the unit on a wall or in a rack, see the information in Table 3, “Wall and Rack Mount Brackets”... -
Page 34: Installing The Switch On A Table Or Desktop
Installing the Switch on a Table or Desktop To install the switch on a table or desktop, perform the following procedure: 1. Remove all the items from the packaging as specified in “Unpacking the Switch” on page 33. 2. Place the switch on a flat and secure surface, leaving enough space around the switch for ventilation and the distribution of the Ethernet cables. -
Page 35: Wall-Mounting The Switch
mounting the AT-FS710/24, AT-FS710/16 and AT-FS710/16E models. AT-FS710/5 & 5E The AT-FS710/5 and /5E switches can be mounted with the ports facing left, up or down by performing the following procedure using the two 10mm Wall Installation x 22mm nylon anchors and two 3.5mm x 16mm pan-head screws provided: 1. -
Page 36: Figure 15: Wall Mounting Hole Locations For Left Facing Ports
2. Remove any data cables, and the (AC or DC) power cord from the switch. 3. If the rubber feet are attached, they are fastened with an adhesive. Remove the rubber feet by prying them off the chassis. 4. Select a wall location for the switch and decide which direction you want the ports to be oriented after installation: left, up or down. -
Page 37: Figure 16: Wall Mounting Hole Locations For Up Or Down Facing Ports
FS710 Series Ehternet Switch Installation Guide Figure 16. Wall Mounting Hole Locations for Up or Down Facing Ports 6. At the marked locations on the wall, drill two 6mm (approximately 1/4in) holes for the anchors. 7. Insert the two 10mm x 22mm nylon anchors until the shoulder of the anchor is flush with the wall. -
Page 38: Figure 17: Aligning And Securing An At-Fs710/5 Or 5E Switch Onto Wall Screws
Figure 17. Aligning and Securing an AT-FS710/5 or 5E Switch onto Wall Screws 38 38... - Page 39 FS710 Series Ehternet Switch Installation Guide 12. Verify that the switch chassis is securely mounted onto the wall. a. If the switch is loose against the wall, dismount the switch off the wall and tighten the screws 1/4-turn. Repeat steps 7 - 12 until the switch chassis is securely fastened to the wall.
-
Page 40: At-Fs710/8 & 8E Wall Installation
Table 6. Table 6. List of Components in the AT-BRKT-J23 Wall Mount Kit Components One pair of metal brackets 3. If any item is missing or damaged, contact your Allied Telesis sales representative for assistance. 40 40... -
Page 41: Figure 18: Removing The Rubber Feet
FS710 Series Ehternet Switch Installation Guide Installing a Switch Using the AT-BRKT-J23 Wall Mount Kit This section shows you steps to install an AT-FS710/8 switch on a wall using the AT-BRKT-J23 kit. Before installing a switch on a wall, make sure that the following items are ready. -
Page 42: Figure 19: Marking The Screw Hole Locations
3. Orient the brackets against the sides of the switch. 4. Have another person hold the switch with the brackets at the wall location where the switch is to be installed. Use a pencil to mark the wall for the locations of the four holes in the brackets. See Figure 19. Figure 19. -
Page 43: Figure 20: Driving The Screws Through The Holes
FS710 Series Ehternet Switch Installation Guide 7. If the wall you are mounting the unit on is sheet rock, concrete or cinder block construction, install the four plastic anchors into the wall in the holes drilled in Step 5. 8. Position brackets on the wall and drive screws through the holes to attach the brackets on the wall. -
Page 44: At-Fs710/16, /16E & /24 Wall Installation
Table 9. Table 7. List of Components in the AT-BRKT-J22 Wall Mount Kit Description Components Two pairs of metal brackets 3. If any item is missing or damaged, contact your Allied Telesis sales representative for assistance. 44 44... -
Page 45: Figure 22: Removing Fs710 Series Rubber Feet
FS710 Series Ehternet Switch Installation Guide Installing a Switch Using the AT-BRKT-J22 Wall Mount Kit This section shows you the steps to install an AT-FS710/24 AT-FS710/16, or /16E switch on a wall using the AT-BRKT-J22 kit. Before beginning the installation, make sure that the following items are ready: An AT-BRKT-J22 wall mount kit ... -
Page 46: Figure 23: Marking The Screw Hole Locations
4. Have another person hold the switch with the brackets at the wall location where the switch is to be installed. Use a pencil to mark the wall with the locations of the four holes in the brackets. See Figure 23 as an example. -
Page 47: Figure 24: Attaching Brackets With Screws
FS710 Series Ehternet Switch Installation Guide 8. Position brackets on the wall and drive screws through the holes to attach the brackets on the wall. See Figure 24. Figure 24. Attaching Brackets with Screws 9. Make sure that the two brackets are installed securely. 10. -
Page 48: Figure 26: Marking The Screw Hole Locations For The Top Brackets
11. Place the other two brackets on the top of the switch and mark the screw hole locations with a pencil as shown in Figure 26. Figure 26. Marking the Screw Hole Locations for the Top Brackets 12. Remove the two brackets and switch and set aside. 13. -
Page 49: Rack Mounting The Switch
Rack Mounting the Switch All of the FS710 Series switches can be mounted in an equipment rack except for the AT-FS710/5 and AT-FS710/5E models. The preliminary processes and the installation procedures for installing the FS710 Series switches in an equipment rack are as follows: ”Guidelines for Installing the Switch in a Rack”... -
Page 50: At-Fs710/8 & 8E Rack Mounting Installation
1. Remove all components from the shipping package. Note Store the packaging material in a safe location. Allied Telesis recommends that you use the original shipping material to return the unit to Allied Telesis if required. 2. Verify that all hardware components are included in your rack mount package listed in Table 9. - Page 51 Eight M4x6mm screws Ten Tie-wrap 3. If any item is missing or damaged, contact your Allied Telesis sales representative for assistance. Installing an AT-FS710/8 or /8E Switch Using the AT-RKMT-J08 Rack Mount Kit To install an AT-FS710/8 or /8E switch in a rack using the AT-RKMT-J08 rack mount kit, perform the following procedure: 1.
-
Page 52: Figure 27: Attaching Handles To Brackets
Figure 27. Attaching Handles to Brackets 3. Attach the short bracket and handle to the long bracket with M4x6mm screws using a Phillip-head screw driver as shown in Figure 28. Figure 28. Attaching Brackets to Plates 4. Attach the cable bracket to the unit that you assembled in Step 3 with M4x6mm screws using a Phillip-head screw driver as shown in Figure 29. -
Page 53: Figure 30: Attaching The Plates To The Switch
FS710 Series Ehternet Switch Installation Guide 6. Attach the mounting plates from Step 4 to the switch with M3x6mm screws using a Phillip-head screw driver as shown in Figure 30. Figure 30. Attaching the Plates to the Switch 7. Mount the switch in a standard 19-inch equipment rack with four equipment rack screws as shown in Figure 31 on page 53. -
Page 54: At-Fs710/16, /16E & /24 Rack Mounting Installation
AT-FS710/16, This section explains the installation procedure for installing an AT-FS710/24, AT-FS710/16, or AT-FS710/16E switch in a 19-inch /16E & /24 Rack equipment rack using the rack mount kit provided with the switch. Mounting Installation Note The following steps apply to the AT-FS710/24, AT-FS710/16 or AT-FS710/16E switches even though the illustrations in this section only show the AT-FS710/24. -
Page 55: Figure 34: Attaching The Switch To Equipment Rack
FS710 Series Ehternet Switch Installation Guide 4. Mount the switch in a standard 19-inch equipment rack with four equipment rack screws (not provided) as shown in Figure 34. Figure 34. Attaching the Switch to Equipment Rack 5. Proceed to “Powering On the Switch” on page 56. -
Page 56: Powering On The Switch
AC/DC power supply. Refer to ”Energizing Internal Power Supply Models” to apply power to the FS710 Series models that use the internal AC power supply. These models include: AT-FS710/5 AT-FS710/8 AT-FS710/16 ... -
Page 57: Figure 36: Plug Ac Power Cord In To Ac Outlet
3. Verify the PWR LED is green. If the LED is off, see Chapter 3, “Troubleshooting” on page 61. Note Allied Telesis recommends attaching the power cord to the switch before plugging the power cord into a wall outlet. Warning Power cord is used as a disconnection device: To de-energize equipment, disconnect the power cord. -
Page 58: Energizing External Ac/Dc Power Supply Models
Energizing Apply power to a switch with an external AC/DC power supply by performing the following procedure: External AC/DC Power Supply Note Models See the list of models powered by external AC/DC power supply in “Powering On the Switch” on page 56. 1. -
Page 59: Figure 39: Plug Power Cord Into Rear Panel Dc Connector
5. Verify the PWR LED is green. If the LED is off, see Chapter 3, “Troubleshooting” on page 61. Note Allied Telesis recommends attaching the power cord to the switch before plugging the power cord into a wall outlet. Warning Power cord is used as a disconnection device: To de-energize equipment, disconnect the power cord. -
Page 60: Cabling The Switch
Cabling the Switch After installing the switch, connect twisted pair cables to the Ethernet ports. When connecting a twisted pair cable, observe the following guidelines: The RJ-45 connector should fit snugly into the port on the switch. The tab on the connector should lock the connector into place. The ports on the switch are auto-MDI/MDI-X. -
Page 61: Chapter 3: Troubleshooting
If you are still unable to resolve the problem after following the instructions in this chapter, contact Allied Telesis Technical Support for assistance. Refer to “Contacting Allied Telesis” on page 14. Check the PWR LED on the front of the switch. If the LED is OFF,... -
Page 62: Appendix A: Technical Specifications
FS710/8 & FS710/8E 195mm x 124mm x 38mm FS710/16 & FS710/16E 210mm x 124mm x 44mm FS710/24 305mm x 180mm x 44mm Table 11. Product Weight Model Weight AT-FS710/5 0.4 Kg AT-FS710/8 0.7 Kg AT-FS710/16 0.9 Kg AT-FS710/24 1.6 Kg AT-FS710/5E 0.4 Kg... -
Page 63: Environmental Specifications
2000 meters maximum Chassis Power Specifications Table 13. Chassis Input Power Specifications Chassis Input Power Model Frequency Ratings AT-FS710/5 100 - 240 VAC, 0.20 A 50/60 Hz AT-FS710/8 100 - 240 VAC, 0.20 A 50/60 Hz AT-FS710/16 100 - 240 VAC, 0.22 A... -
Page 64: Rj-45 Twisted Pair Port Connectors
FS710 Series Ehternet Switch Installation Guide RJ-45 Twisted Pair Port Connectors This section lists the connectors and connector pinouts for the AT-FS708 Fast Ethernet switch and its components. Figure 40 illustrates the pin layout to an RJ-45 connector and port. Figure 40.
