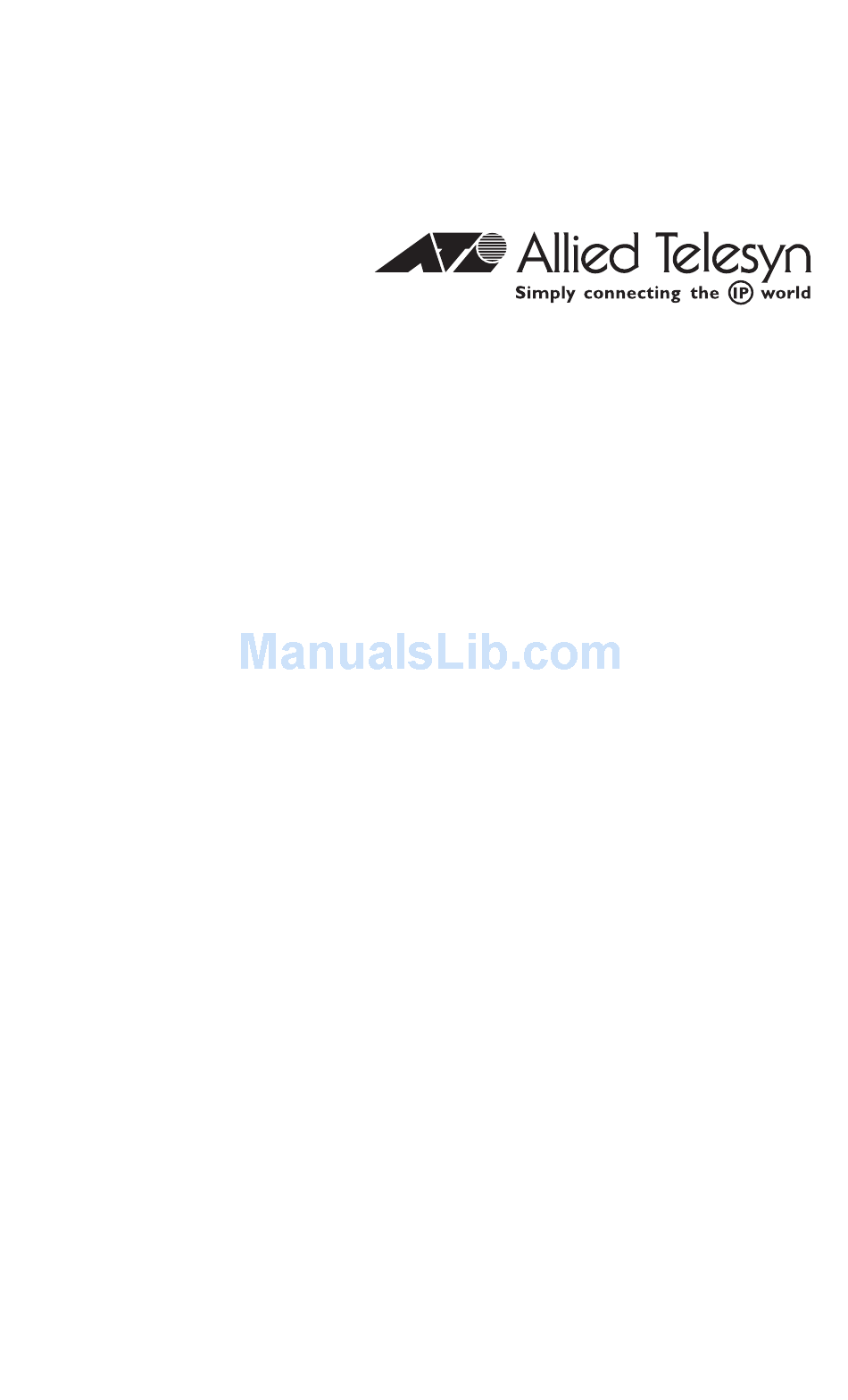

AT-FS724L
Fast Ethernet Switch

Installation Guide

PN 613-50464-00 Rev A

Advertisement

Table of Contents
loading

Related Manuals for Allied Telesis AT-FS724L

Summary of Contents for Allied Telesis AT-FS724L

  • Page 1: Installation Guide

    AT-FS724L Fast Ethernet Switch Installation Guide PN 613-50464-00 Rev A...
  • Page 2 Copyright © 2003 Allied Telesyn, Inc. 960 Stewart Drive, Suite B, Sunnyvale, CA 94085, USA All rights reserved. No part of this publication may be reproduced without prior written permission from Allied Telesyn, Inc. Ethernet is a registered trademark of Xerox Corporation. All other product names, company names, logos or other designations mentioned herein are trademarks or registered trademarks of their respective owners.

  • Page 3: Electrical Safety And Emission Compliance Statement

    Declares that the product: Fast Ethernet Switch Model Number: AT-FS724L This product complies with FCC Part 15B, Class B Limits: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device must not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 4 Electrical Safety and Emission Compliance Statement RFI Emission FCC Class B, EN55022 Class B, VCCI Class B, C-TICK Warning: In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

  • Page 5: Table Of Contents

    Table of Contents Electrical Safety and Emission Compliance Statement ......iii Table of Contents ................... v Welcome to Allied Telesyn ................. vii Where to Find Related Guides................. vii Document Conventions ..................vii Contacting Allied Telesyn ................viii Online Support ..................viii E-mail and Telephone Support..............viii Returning Products ..................viii For Sales or Corporate Information ............viii Chapter 1...

  • Page 6: Table Of Contents

    Table of Contents Chapter 3 Troubleshooting ................... 19 Appendix A Technical Specifications ................21 Physical ......................21 Environmental ....................21 Electrical Rating ....................22 Agency Compliance................... 22 Pinout Assignments..................23 Appendix A Translated Safety and Emission Information ........25...

  • Page 7: Welcome To Allied Telesyn

    Welcome to Allied Telesyn This guide contains instructions on how to install the AT-FS724L Fast Ethernet Switch. Where to Find Related Guides The Allied Telesyn web site at www.alliedtelesyn.com offers you an easy way to access the most recent documentation, software, and technical information for all of our products.

  • Page 8: Contacting Allied Telesyn

    Welcome to Allied Telesyn Contacting Allied Telesyn This section provides Allied Telesyn contact information for technical support as well as sales or corporate information. Online Support You can request technical support online by accessing the Allied Telesyn Knowledge Base from the following web site: http://kb.alliedtelesyn.com. You can use the Knowledge Base to submit questions to our technical support staff and review answers to previously asked questions.

  • Page 9: Chapter 1 Overview

    100 meters (328 feet). These ports are capable of Auto-Negotiating at 10 or 100 Mbps and feature half- and full-duplex operation. The AT-FS724L features an internal power supply and are designed for desktop or rackmount installation. These switches are easy to install and do not require software configuration or management.

  • Page 10: Key Features

    Overview Key Features The AT-FS724L switch has the following key features: 24 10/100Base-TX ports System and port LEDs Auto MDI/MDI-X on all ports Auto-Negotiation on all ports (IEEE 802.3u-compliant) Store and forward switching mode Backpressure and flow control (IEEE 802.3x-compliant)

  • Page 11: Status Leds

    AT-FS724L Fast Ethernet Switch Installation Guide Status LEDs Table 2 lists the status LEDs for the AT-FS724L switch. Table 2 Status LEDs Color Description POWER Green Power is applied to the switch. No power is applied to the switch. LNK/ACT Green A valid link has been established on the port.

  • Page 12: Duplex Mode

    The twisted pair ports on the AT-FS724L switch can operate in either half- duplex or full-duplex mode and can deliver up to 200 Mbps of bandwidth to the end-nodes.

  • Page 13: Mac Address Table

    The MAC address table in the AT-FS724L switch can store up to 4,000 MAC addresses. To prevent the table from becoming filled with addresses of end-...

  • Page 14: Store And Forward

    Overview This timer will delete a MAC address from the table if it does not see a frame from the end-node with the address on any port after five minutes (300 seconds). The aging timer also helps to ensure that the table is correct should an end-node be moved from one port on the switch to another port.

  • Page 15: Internal Power Supply

    AT-FS724L Fast Ethernet Switch Installation Guide Internal Power Supply The AT-FS724L uses a universal internal switching power supply operating at 100-120/200-240V AC. The frequencies are 50/60 Hz, 0.5A at all input voltage +/-3%. Allied Telesyn ships power cords with these units to the U.S., Continental Europe, and the U.K.

  • Page 16: Network Topologies

    Overview Network Topologies The AT-FS724L switch can be used in a variety of network topologies, such as a power workgroup or cascade. Both topologies are described below. Power Workgroup Topology A power workgroup topology, shown in Figure 2, allows each end-node to directly connect to a 10/100Base-TX port on an AT-FS724L switch.

  • Page 17: Cascade Topology

    Cascade Topology Connecting two similar networking devices together is called ‘cascading’. Figure 3 illustrates this topology where Port 24 on the AT-FS724L switch is connected to Port 8 on the AT-FS716 switch. Since Port 24 is wired as auto MDI/MDI-X, a crossover or straight-through Category 5 or better twisted pair cable can be used.

  • Page 19: Chapter 2 Installation

    Make sure the following items are included in your package. If any item is missing or damaged, contact your Allied Telesyn sales representative for assistance. ❑ One AT-FS724L Fast Ethernet Switch ❑ Four protective feet (for desktop use only) ❑...

  • Page 20: Planning The Installation

    Installation Planning the Installation Be sure to observe the following guidelines when planning the installation of your switch. ❑ The end-nodes connected to the twisted pair port can operated at either 10 Mbps or 100 Mbps and half- or full-duplex mode. ❑...

  • Page 21: Reviewing Safety Guidelines

    AT-FS724L Fast Ethernet Switch Installation Guide Reviewing Safety Guidelines Please review the following safety guidelines before you begin to install the switch. Warning Electrical Shock Hazard: To prevent electrical shock, do not remove the cover. There are no user-serviceable parts inside. The unit contains hazardous voltages and should only be opened by a trained and qualified technician.

  • Page 22: Installing The Switch On A Table Or Desktop

    Installation Installing the Switch on a Table or Desktop If you are rackmounting an AT-FS724L switch, refer to “Rackmounting the Switch” on page 15. To install the switch on a table or desktop, perform the following procedure: 1. Remove all equipment from the packaging and store the packing material in a safe place.

  • Page 23: Rackmounting The Switch

    AT-FS724L Fast Ethernet Switch Installation Guide Rackmounting the Switch The AT-FS724L switch can be used on a desktop or installed in a rack. For desktop installation, refer to “Installing the Switch on a Table or Desktop” on page 14. To install an AT-FS724L in a rack, perform the following procedure: 1.
  • Page 24 Installation 4. Secure the switch to the rack using 2 screws (not provided) for each side as shown in Figure 7. Figure 7 Installing the Switch to the Rack 5. Apply power to the switch by plugging one end of the power cord to the power receptacle and the other end to a power outlet.

  • Page 25: Warranty Registration

    AT-FS724L Fast Ethernet Switch Installation Guide Warranty Registration When you finish installing the product, you should register you product by completing the enclosed warranty card and sending it in.

  • Page 27: Chapter 3 Troubleshooting

    Chapter 3 Troubleshooting Follow the guidelines below to test and troubleshoot the installation in the event a problem occurs. If the POWER LED is OFF, do the following: For an external power supply, check to be sure that the power adapter is securely connected to a power outlet and that the power adapter cable is securely connected to the back of the switch.

  • Page 29: Technical Specifications

    Appendix A Technical Specifications Physical Dimensions: W x D x H 11.6 in x 7.8 in x 1.72 in) Weight: 2.5 kg (5.5 lbs) Environmental Maximum Operating: 0° to 40° C (32° to 104° F) Maximum Storage: -25° to 70° C (-13° F to 158° F) Relative Humidity Operating: 5% to 80% (non-condensing) Relative Humidity Storage:...

  • Page 30: Electrical Rating

    Technical Specifications Electrical Rating Internal Universal Power Supply: 100 - 240 V AC, 50/60 Hz, 0.5A input Agency Compliance EMI/RFI: FCC Class B, EN55022 Class B, VCCI Class B, CISPR Class B Electrical Safety: EN60950 (TUV), UL 60950 ( Immunity: EN55024...

  • Page 31: Pinout Assignments

    AT-FS724L Fast Ethernet Switch Installation Guide Pinout Assignments Figure 8 shows the pin assignments of the RJ-45 connector. Figure 8 RJ-45 Connector Table 4 lists the 100Base-TX connector pins and their signals when the port is operating in either MDI or MDI-X configuration.

  • Page 33: Translated Safety And Emission Information

    Appendix A Translated Safety and Emission Information Important: This appendix contains multiple-language translations for the safety statements in this guide. Wichtig: Dieser Anhang enthält Übersetzungen der in diesem Handbuch enthaltenen Sicherheitshinweise in mehreren Sprachen. Vigtigt: Dette tillæg indeholder oversættelser i flere sprog af sikkerhedsadvarslerne i denne håndbog.
  • Page 34 Declares that the product: Fast Ethernet Switches Model Numbers: AT-FS724L This product complies with FCC Part 15B, Class B Limits: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device must not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 35 AT-FS724L Fast Ethernet Switch Installation Guide RFI Emission FCC Class B, EN55022 Class B, VCCI Class B, C-TICK Warning: In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
  • Page 36 Translated Safety and Emission Information Normen: Dieses Produkt erfüllt die Anforderungen der nachfolgenden Normen. Hochfrequenzstörung FCC Klasse B, EN55022 Klasse B, VCCI Klasse B, C-TICK Warnung: Bei Verwendung zu Hause kann dieses Produkt Funkstörungen hervorrufen. In diesem Fall müßte der Anwender angemessene Gegenmaßnahmen ergreifen.
  • Page 37 AT-FS724L Fast Ethernet Switch Installation Guide Standarder: Dette produkt tilfredsstiller de følgende standarder. Radiofrekvens forstyrrelsesemission FCC Klasse B, EN55022 Klasse B, VCCI Klasse B, C-TICK Advarsel: I et hjemligt miljø kunne dette produkt forårsage radio forstyrrelse. Bliver det tilfældet, påkræves brugeren muligvis at tage tilstrækkelige foranstaltninger.
  • Page 38 Translated Safety and Emission Information Eisen: Dit product voldoet aan de volgende eisen. RFI Emissie FCC Klasse B, EN55022 Klasse B, VCCI Klasse B, C-TICK Waarschuwing: Binnenshuis kan dit product radiostoring veroorzaken, in welk geval de gebruiker verplicht kan worden om gepaste maatregelen te nemen.
  • Page 39 AT-FS724L Fast Ethernet Switch Installation Guide Normes: Ce produit est conforme aux normes de suivantes. Emission d'interférences radioélectriques FCC Classe B, EN55022 Classe B, VCCI Classe B, C-TICK Mise En Garde: Dans un environnement domestique, ce produit peut provoquer des interférences radioélectriques. Auquel cas, l'utilisateur devra prendre les mesures adéquates.
  • Page 40 Translated Safety and Emission Information Standardit: Tämä tuote on seuraavien standardien mukainen. Radioaaltojen häirintä FCC Luokka B, EN55022 Luokka B, VCCI Luokka B, C-TICK Varoitus: Kotiolosuhteissa tämä laite voi aiheuttaa radioaaltojen häiröitä, missä tapauksessa laitteen käyttäjän on mahdollisesti ryhdyttävä tarpeellisiin toimenpiteisiin. Kestävyys EN55024 Sähköturvallisuus...
  • Page 41 AT-FS724L Fast Ethernet Switch Installation Guide Standard: Questo prodotto è conforme ai seguenti standard. Emissione RFI (interferenza di radiofrequenza) FCC Classe B, EN55022 Classe B, VCCI Classe B, C-TICK Avvertenza: in ambiente domestico questo prodotto potrebbe causare radio interferenza. In questo caso potrebbe richiedersi all'utente di prendere gli adeguati provvedimenti.
  • Page 42 Translated Safety and Emission Information Sikkerhetsnormer: Dette produktet tilfredsstiller følgende sikkerhetsnormer. RFI stråling FCC Klasse B, EN55022 Klasse B, VCCI Klasse B, C-TICK Advarsel: Hvis dette produktet benyttes til privat bruk, kan produktet forårsake radioforstyrrelse. Hvis dette skjer, må brukeren ta de nødvendige forholdsregler.
  • Page 43 AT-FS724L Fast Ethernet Switch Installation Guide Padrões: Este produto atende aos seguintes padrões. Emissão De Interferência De Radiofrequência FCC Classe B, EN55022 Classe B, VCCI Classe B, C-TICK Aviso: Num ambiente doméstico este produto pode causar interferência na radiorrecepção e, neste caso, pode ser necessário que o utente tome as medidas adequadas.
  • Page 44 Translated Safety and Emission Information Estándares: Este producto cumple con los siguientes estándares. Emisión RFI FCC Clase B, EN55022 Clase B, VCCI Clase B, C-TICK Advertencia: en un entorno doméstico, este producto puede causar radiointerferencias, en cuyo caso, puede requerirse del usuario que tome las medidas que sean convenientes al respecto.
  • Page 45 AT-FS724L Fast Ethernet Switch Installation Guide Standarder: Denna produkt uppfyller följande standarder. Radiostörning FCC Klass B, EN55022 Klass B, VCCI Klass B, C-TICK Varning: Denna produkt kan ge upphov till radiostörningar i hemmet, vilket kan tvinga användaren till att vidtaga erforderliga åtgärder.
