NetRAID-3Si, HP Rack Storage/12 and /8)
(see Version History at the end of this document)
Introduction
This document defines the supported HP NetServer LH3 configurations with HP Rack Storage/12s and /8s
and Microsoft Cluster Server. These configurations minimize single points of failure (SPOF), provide
maximum availability, and have been certified by Hewlett-Packard and Microsoft. This guide is
prescriptive; it describes the configurations supported by HP. Any deviance to these configurations can
result in an inoperative cluster or an operating cluster with degraded performance, hidden SPOFs, etc., and
therefore will not be supported by HP.
What's Defined in Cluster
Cluster
Type of SPUs
Installation
Number of nodes
Shared Storage
LANs:
Client LAN
Intra-cluster
(Heartbeat) LAN
Power source

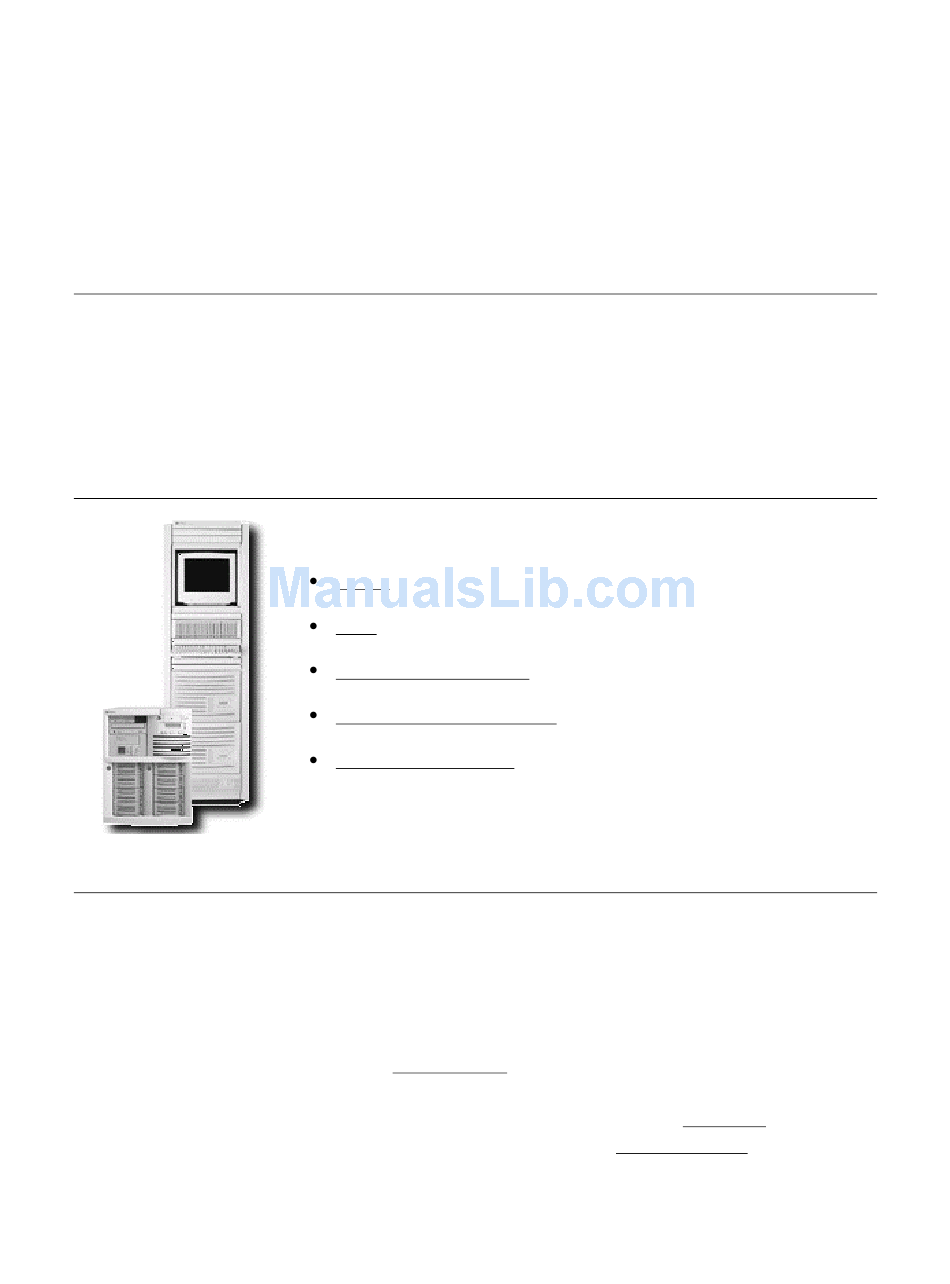

HP NetServer LH 3

with
Cluster Configuration Guide
18 January 2000
Cluster
SPUs
Local and Shared Storage
Intra-cluster and Client LANs
Shared Storage Cabling
HP NetServer LH 3
Each node must be the same model SPU, but may have different size main
memory, cache, and CPU clock speeds.
Pedestal or racked
2
HP Rack Storage/12 or Rack Storage/8 with HP NetRAID controller and HP
disks. See Shared Storage
Any NIC that is HP and Microsoft approved. See
HP D5013A/B with crossover cable. See
Direct from power mains, power conditioner or uninterruptible power supply
(UPS) using any power conditioner or UPS.
below.
Client LAN
Intra-cluster LAN
below.
below.
