Verify and Reconnect Internal Cabling

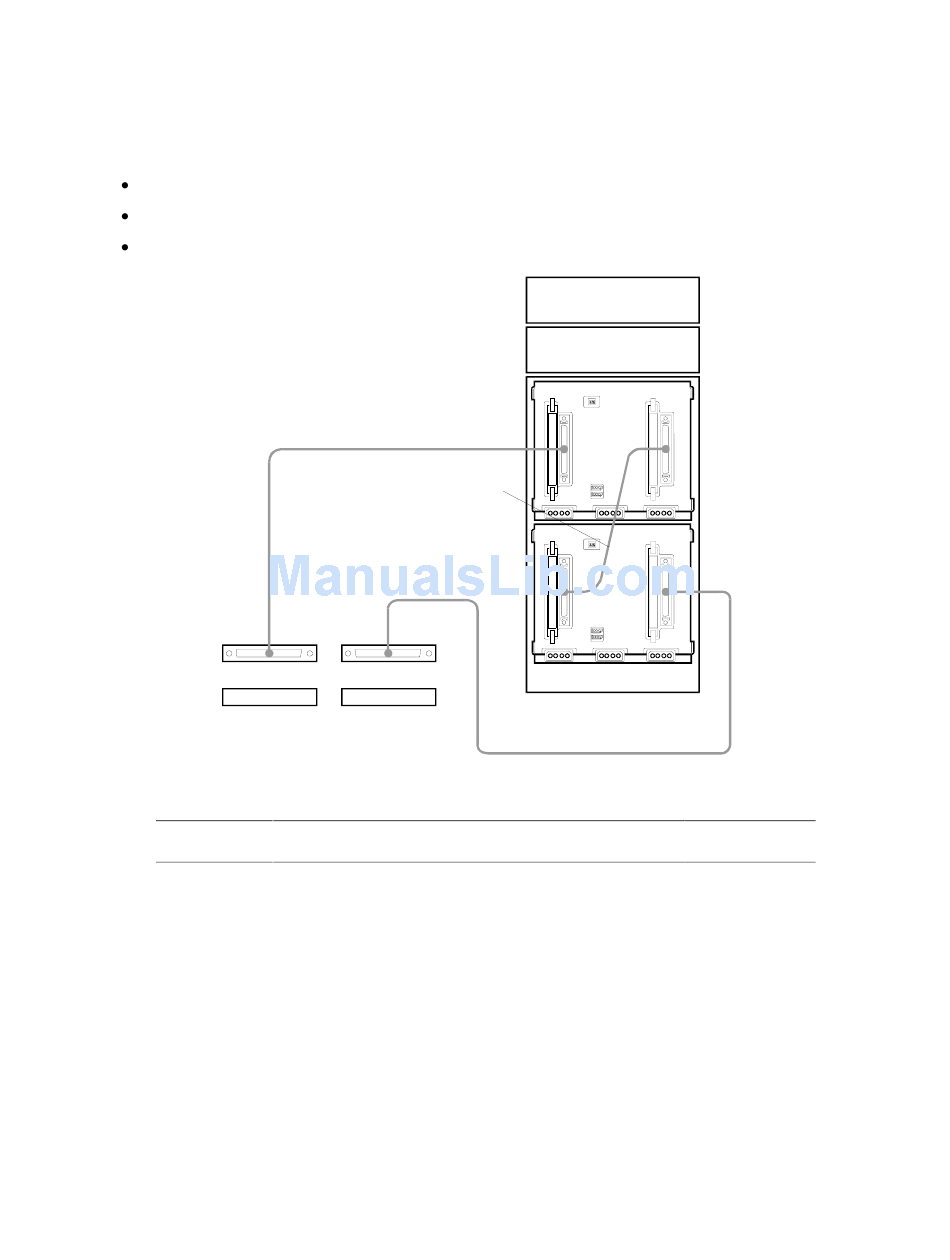

Using the schematic view of the HP Storage System/6's internal cabling shown below, check and if
necessary, reroute the three cables located inside the storage unit. These are:
C14: A short cable connecting the lower cage to the upper cage.
C20: A cable connecting the external port and routed to the "in" side of the lower disk cage.
C20: A cable connecting the other external port to the upper cage.
SCSI A
SCSI C
Cable Label
C14
C20
NetRAID Supplement to the HP NetServer Microsoft Cluster Installation Guide
C20
C20
SCSI B
SCSI D
Cabling Diagram Legend
Description
Fast-Wide SCSI (68 pin) cable
Fast-Wide SCSI (68 pin) cable with external connector
Storage System/6 Cabinet Internal Cabling
SCSI Device
Shelf
SCSI Device
Shelf
C14
Hot Swap
Subsystem
UPPER
CAGE
LOWER
CAGE
Part Number
5182-6747
5182-9326
10
