Step 4—Configuring the cabling
HP xw4000/xw6000 series workstations
1.

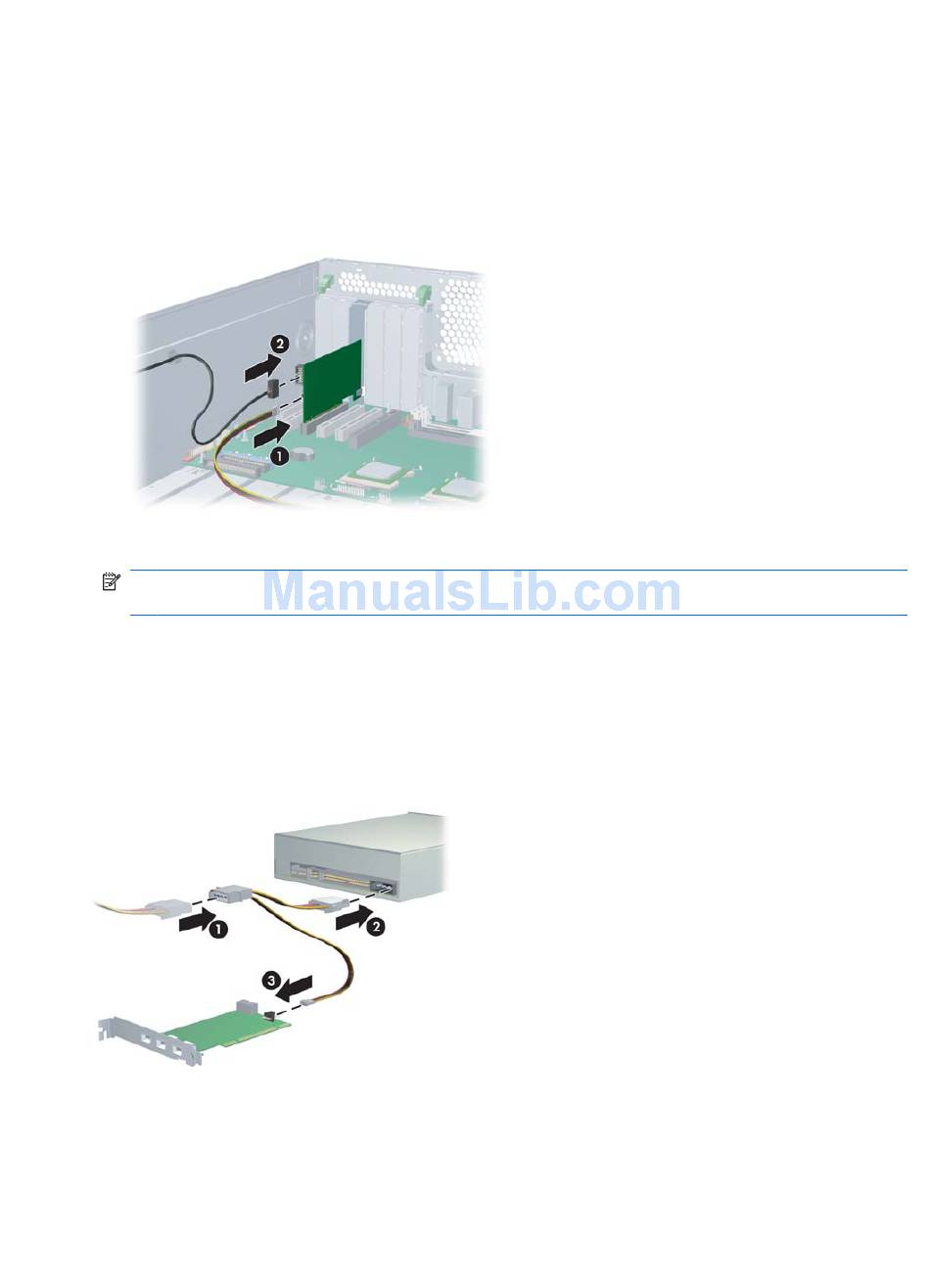

Connect a mini-plug power connector from the workstation power supply to the power connector
on the IEEE-1394 card (1). Connect the front IEEE-1394 I/O cable to the I/O connector on the
IEEE-1394 card (2).
Figure 3
2.
(Optional) Remove the plastic plug or adhesive label from the front 1394 port.
NOTE:
remove the adhesive label.
HP xw8000/xw9000 series workstations
Connect one connector on the Y-adapter power cable to the workstation optical drive power wire (1).
Connect the second connector on the Y-adapter power cable to the optical drive power connector (2).
Connect the third connector on the Y-adapter power cable to the power connector on the IEEE-1394
card (3).
Figure 4
Connecting the Y-adapter power cable
Step 5—Reassembling the workstation
After installation, reassemble the workstation using the instructions in the workstation documentation.
The reassembly process involves reinstalling the side access panel and restoring power to your
workstation.
6
IEEE-1394 card installation
Connecting the IEEE-1394 cables
If an adhesive label is covering the front 1394 port, remove the front bezel and then
ENWW
