Figure 3-9 Nic Ip Addresses; Figure 3-10 Determining The First Nic; Figure 3-11 Advanced Settings Dialog - HP ProLiant xw2x220c - Blade Workstation Administrator's Manual

2. Double-click each LAN icon and the Support tab, which displays the IP address of each NIC (see Figure
3-9). While this provides the IP address of each NIC, it does not indicate which NIC is considered the
"first" NIC.

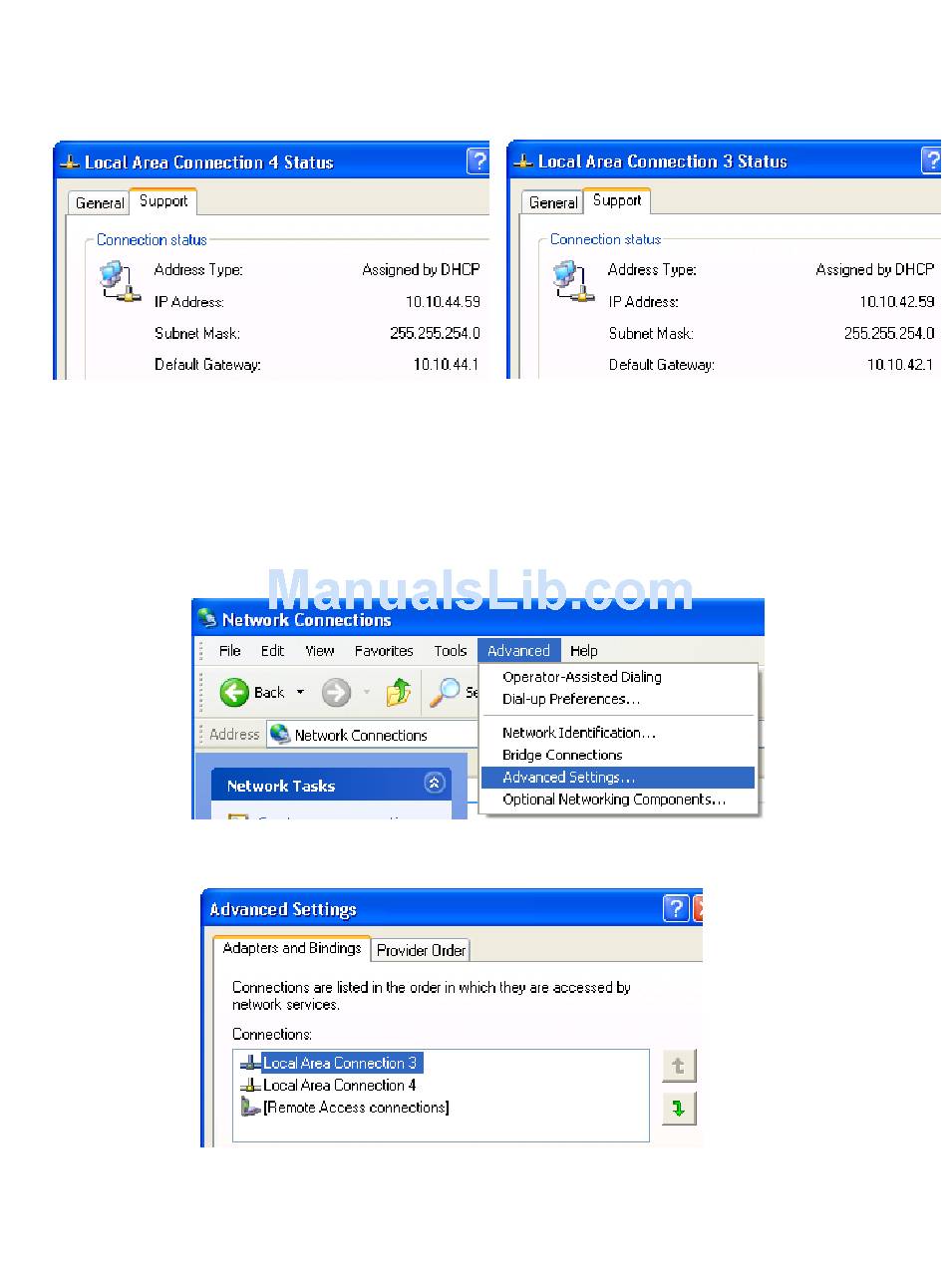

Figure 3-9 NIC IP addresses
3. To determine which NIC is the first NIC, click Advanced > Advanced Setting in the Network Connections
window (see Figure 3-10). The Advanced Settings window is displayed (see Figure 3-11). The "first" NIC is
listed at the top in the Connections box. In Figure 3-11, the first NIC is Local Area Connection 3, which
(from Figure 3-9) has an IP address of 10.10.42.59. This is the NIC that the blade workstation will be
"listening" to for an RGS connection.
Figure 3-10 Determining the first NIC
Figure 3-11 Advanced Settings dialog
The arrows to the right of the Connections box in Figure 3-11 can be used to change the order of the NICs to
specify which NIC will be used by the RGS Sender. In the example in Figure 3-11, the RGS Sender will use Local
Area Connection 3 with an IP address of 10.10.42.59.
