Summary of Contents for Elation PRO FS 15R FOLLOWSPOT

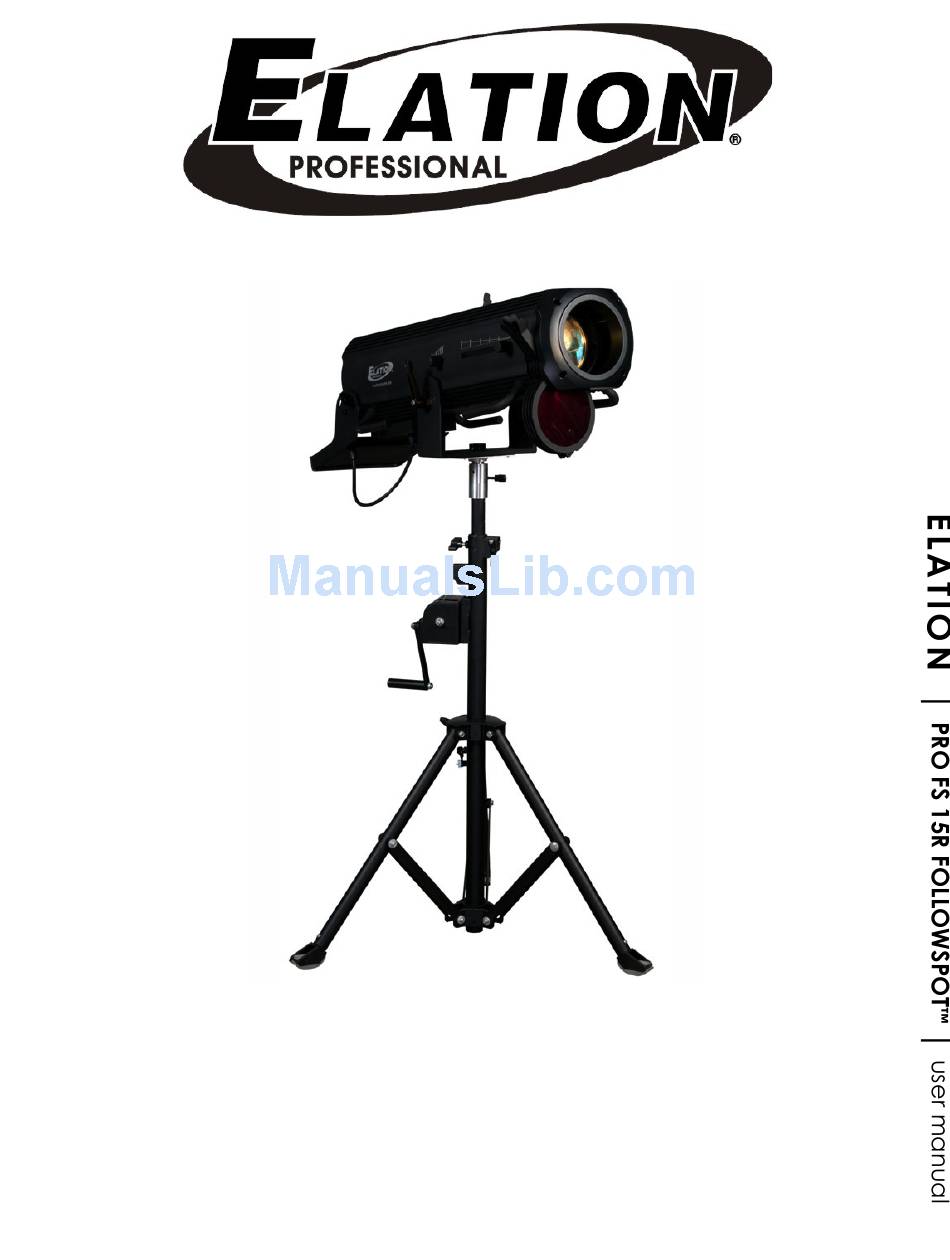

- Page 1 PRO FS 15R FOLLOWSPOT™ user manual ...
- Page 2 Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040 323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com Elation Professional B.V.
-
Page 3: Table Of Contents
C O N T E N T S General Information Warranty Safety Instructions General Guidelines Discharge Lamp Warning Fixture Overview Lamp Installation Instructions Fixture Installation Operation Cleaning and Maintenance Technical Specifications Road Case Installation PRO FS 15R FOLLOWSPOT™ User Manual Ver 1... -
Page 4: General Information
Congratulations, you have just purchased one of the most innovative and ™ reliable lighting fixtures on the market today! The PRO FS 15R FOLLOWSPOT been designed to perform reliably for years when the guidelines in this booklet are followed. Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this unit. - Page 5 You may also visit us on the web at www.elationlighting.com any comments or suggestions. For service related issue please contact Elation Professional®. ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST...
-
Page 6: Warranty
No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional® shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof. -
Page 7: Safety Instructions
Do not operate this fixture if the power cord has become frayed, crimped and/or damaged. • If the power cord is damaged, replace it immediately with a new one of similar power rating. PRO FS 15R FOLLOWSPOT™ User Manual Ver 1... -
Page 8: General Guidelines
• Use only the original road case to transport the fixture in for service. DO NOT TOUCH the housing bare-hand during its operation. Turn OFF the power • and allow approximately 15 minutes for the fixture to cool down before replacing or serving. PRO FS 15R FOLLOWSPOT™ User Manual Ver 1... -
Page 9: Discharge Lamp Warning
R E P L A C E M E N T Please note that due to the nature of the Phillips™ Platinum 15R Lamp and the optical path of the Elation PRO FS 15R FOLLOWSPOT fixture, the lamp MUST BE replaced at 2,000 hours. -
Page 10: Fixture Overview
F I X T U R E O V E R V I E W Dimmer Color Temperature Color Selection Buttons Power Indicator Handles Iris Frost Filter Framing Beam Angle/Zoom/Focus Gel Frames powerCON IN Power Switch Fuse Lamp Access/Cover Panel Lens PRO FS 15R FOLLOWSPOT™ User Manual Ver 1... -
Page 11: Lamp Installation Instructions
R E P L A C E M E N T Please note that due to the nature of the Phillips™ Platinum 15R Lamp and the optical path of the Elation PRO FS 15R FOLLOWSPOT fixture, the lamp MUST BE replaced at 2,000 hours. - Page 12 2. Carefully remove the (2) RED WIRES connected to the lamp base. 3. Gently remove the OLD lamp by grasping the ceramic socket base and twist the lamp until it becomes free. 4. Once lamp becomes free, gently pull the lamp out. PRO FS 15R FOLLOWSPOT™ User Manual Ver 1...
- Page 13 Please remember the Phillips Platinum 15R PRO Lamp is NOT a hot-restrike lamp ™ therefore, you must wait approximately 15 minutes before you can attempt to restrike the lamp once it has been turned off. PRO FS 15R FOLLOWSPOT™ User Manual Ver 1...
-
Page 14: Fixture Installation
• Ambient operating temperature range for this fixture is 14° to 113°F. (-10° to 45°C) Do not use the fixture under or above this temperature. MOUNTING POINTS • The PRO FS 15R FOLLOWSPOT™ is designed to be used with the included tripod stand. DO NOT attempt to install the fixture on a different stand as it may cause damage to the fixture and/or personal injury and may void the warranty. -
Page 15: Operation
. e l a t i o n l i g h t i n g . c o m O P E R A T I O N MANUAL CONTROL SYSTEM The PRO FS 15R FOLLOWSPOT™ comes with an easy to navigate manual control system. The next section will provide details of each feature and function. DIMMING Adjust dimming manually by moving fader between 0% and 100%. - Page 16 Adjust BEAM ANGLE manually by turning both knobs counterclockwise to loosen and then move knobs to select desired beam angle between 5° to 10°. Both knobs MUST be set to the same position to properly adjust FOCUS and ZOOM. PRO FS 15R FOLLOWSPOT™ User Manual Ver 1...
-
Page 17: Cleaning And Maintenance
Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer. -
Page 18: Technical Specifications
14° to 113°F (-10° to 45°C) APPROVALS / RATINGS CE | IP20 Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. PRO FS 15R FOLLOWSPOT™ User Manual Ver 1... -
Page 19: Photometric Data
. e l a t i o n l i g h t i n g . c o m COLORS PHOTOMETRIC DATA Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. PRO FS 15R FOLLOWSPOT™ User Manual Ver 1... -
Page 20: Dimensional Drawings
. e l a t i o n l i g h t i n g . c o m DIMENSIONAL DRAWINGS Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. PRO FS 15R FOLLOWSPOT™ User Manual Ver 1... -
Page 21: Road Case Installation
. e l a t i o n l i g h t i n g . c o m R O A D C A S E I N S T A L L A T I O N PRO FS 15R FOLLOWSPOT™ User Manual Ver 1...
