Attaching Adapter Plate to Projector Mount
• Do not lift more weight than you can handle. Use additional man power or mechanical lifting equipment to safely
handle placement of the screen.

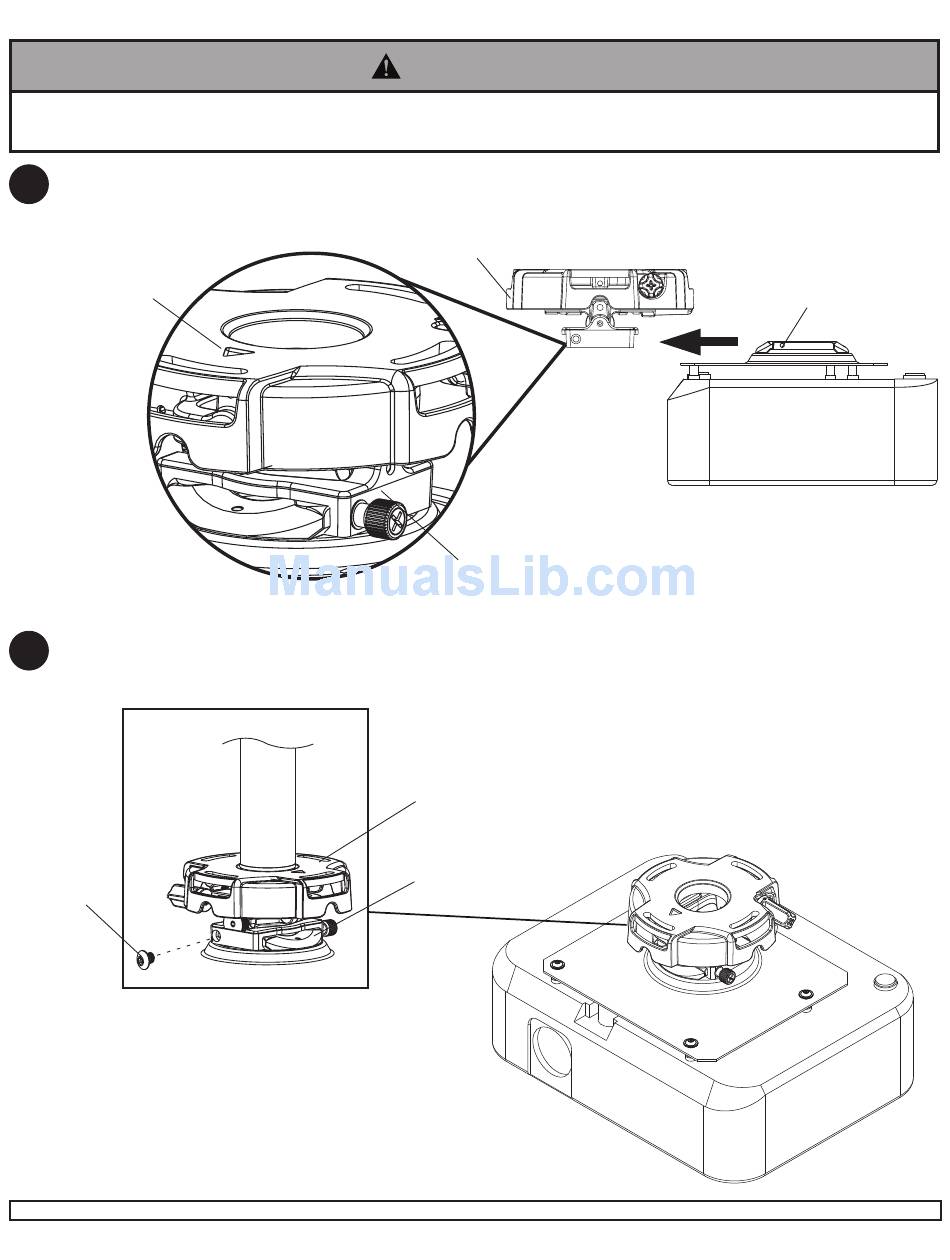

Slide connection block (EE) with projector into projector mount assembly (A) as shown. Tighten captive screw to
7
secure projector to projector mount assembly (A).
ARROW INDICATES
FRONT OF MOUNT
IMPORTANT: For security installations, insert one #10-32 x 1/4" socket pin screw (D) through projector mount
8
assembly (A) and into connection block (EE) as shown in detail 1. Tighten screw using 4mm security allen
wrench (B).
D
Visit the Peerless Web Site at www.peerlessmounts.com
DETAIL 1
WARNING
FRONT OF MOUNT
CAPTIVE SCREW
A
EE
9 of 10
A
EE
ISSUED: 10-01-10 SHEET #: 056-9034-4 07-29-11
