Attaching Adapter Plate to Projector

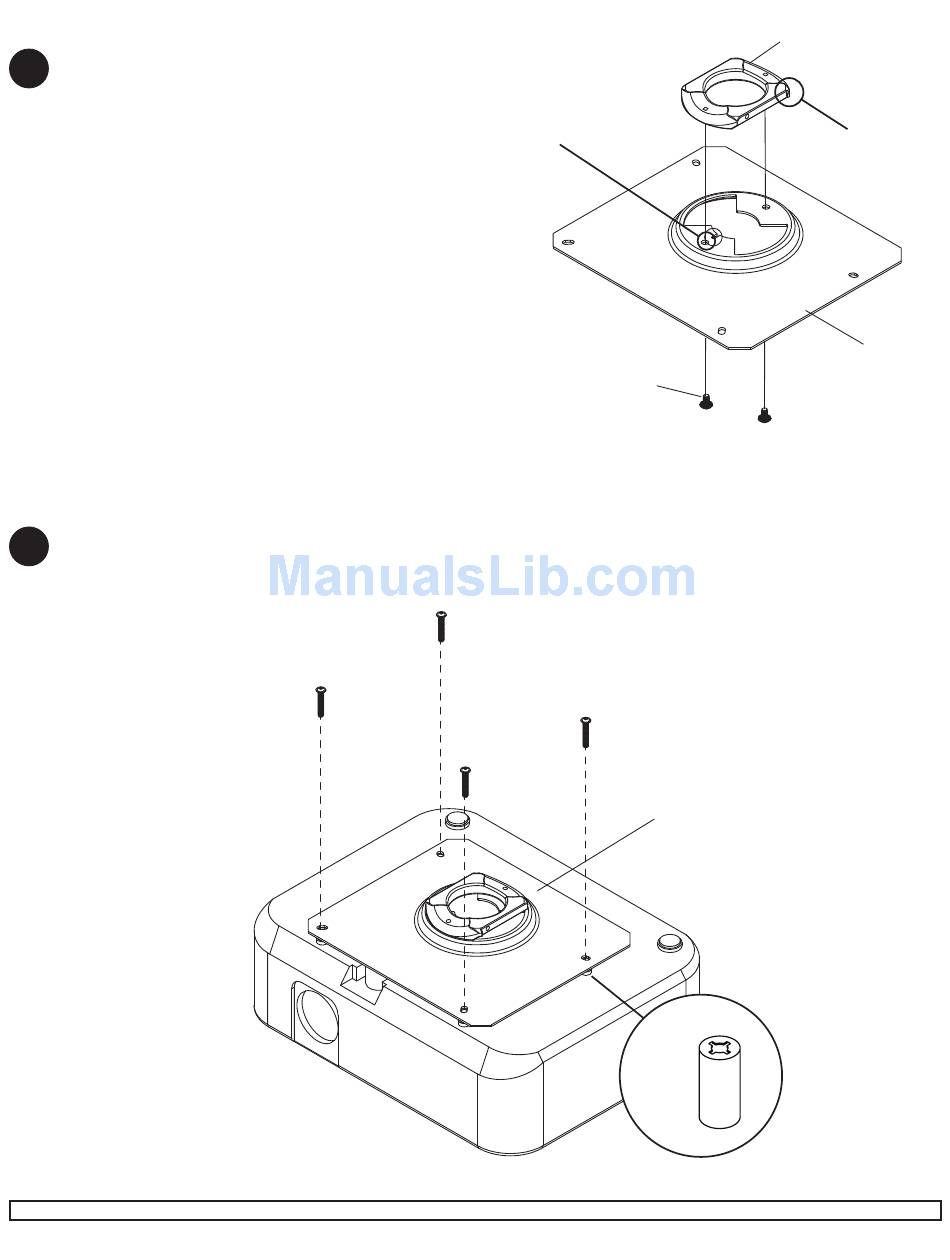

Align shoulder on connection block (EE) opposite
5
notch in adapter plate (AA). Attach adapter plate
(AA) to connection block (EE) using two #10-32 x
3/8" serrated washer head socket pin screws (C)
as shown in figure 5.1. Tighten screws using 4 mm
allen wrench (B).
Flip projector upside down and attach adapter plate (AA) using four serrated socket pin screws (BB) and retaining
6
spacers (CC) as shown below. Tighten using 4 mm allen wrench (B).
NOTE: Retaining spacers (CC) go between the projector and adapter plate (AA).
Visit the Peerless Web Site at www.peerlessmounts.com
BB
NOTCH INDICATES
FRONT OF PROJECTOR
8 of 10
EE
C
fig. 5.1
AA
CC
ISSUED: 10-01-10 SHEET #: 056-9034-4 07-29-11
For customer care call 1-800-865-2112
SHOULDER
AA
