Installation to Extension Column / Ceiling Plate
NOTE: Refer to accompanying instructions with ceiling plates (sold separately) for installing these models to
1
ceiling.

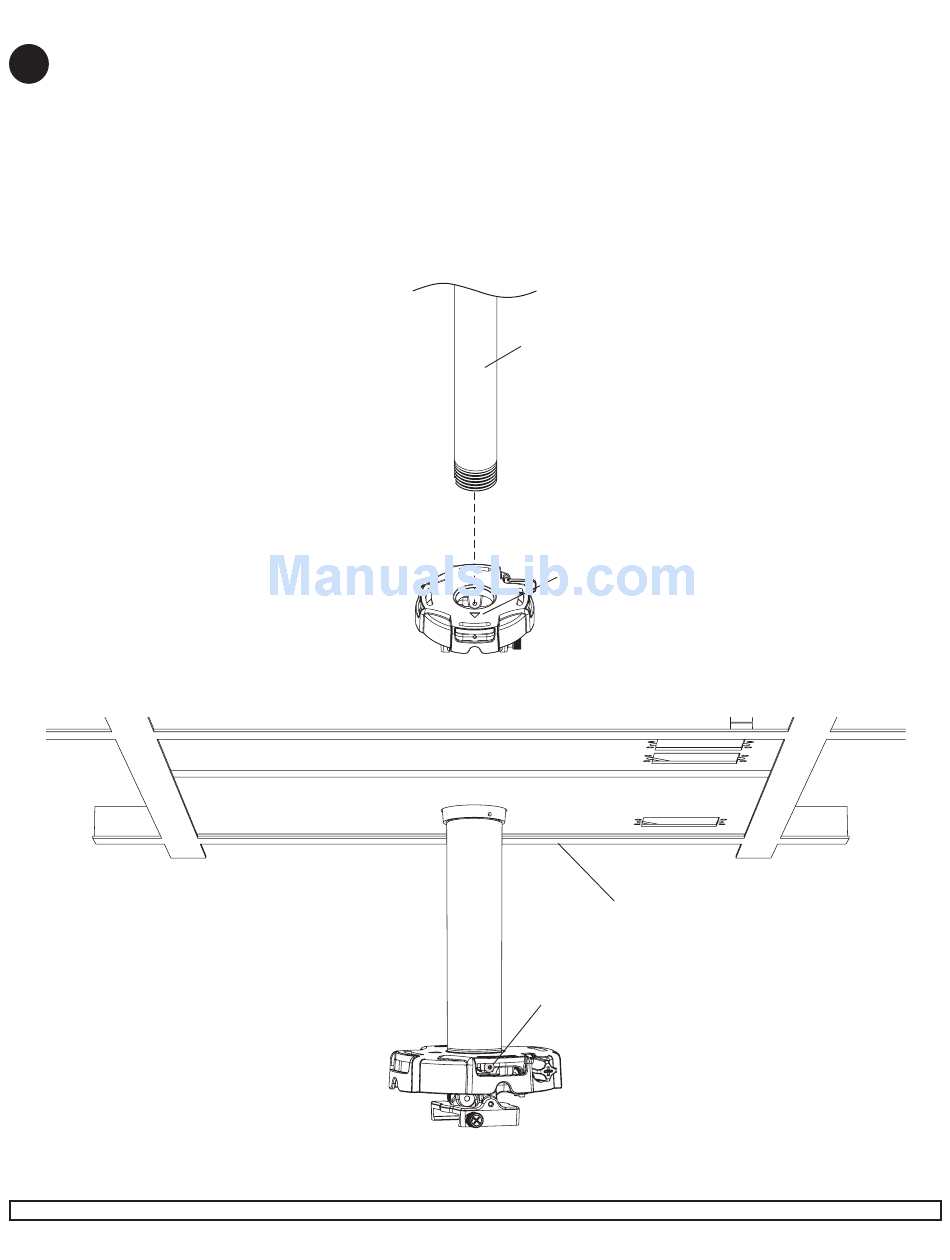

Screw projector mount assembly (A) onto extension column as shown in figure 1.1. Tighten swivel stop screw
against extension column, flush mount tube or reducer using 4 mm security allen wrench (B) as shown in figure
1.2.
NOTE: Swivel stop screw is used to jam against threads of extension column, flush mount tube or reducer to
prevent any excess movement of projector mount assembly (A). Do not overtighten screw; overtightening screw
will damage threads making it difficult to separate products.
Skip to step 5.
Visit the Peerless Web Site at www.peerlessmounts.com
1-1/2" EXTENSION COLUMN
(SOLD SEPARATELY)
(UL LISTED EXT OR AEC SERIES)
A
ARROW INDICATES
FRONT OF MOUNT
fig. 1.1
SWIVEL STOP SCREW
fig. 1.2
4 of 10
CMJ 455
(SOLD SEPARATELY)
ISSUED: 10-01-10 SHEET #: 056-9034-4 07-29-11
For customer care call 1-800-865-2112
