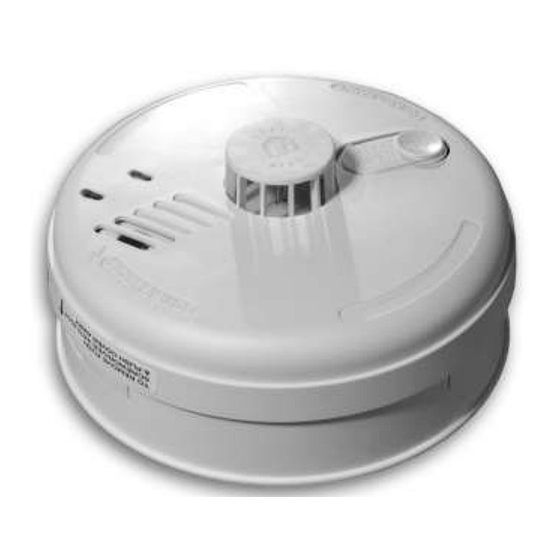

Model Ei 184 Heat Alarm
Fixed temperature fast response thermistor type
sensor, range 54°C to 62°C
Supply voltage 10.5 – 30 VDC
Test/Hush button
Interconnect up to 12 alarms
Relay contacts
Built in sounder
Automatic reset facility
Kitemarked to BS5446-2: 2003
5 year guarantee

Product Description

The Ei184 is a Heat Alarm that is designed to operate
with suitable 8-30 volt control panels and to provide a
loud local alarm.
The Ei184 has advanced features such as the ability to
interconnect up to twelve alarms to allow all alarms to
sound if just one of the interconnected alarms should be
triggered.
Relay contacts (normally open and closed supplied) are
available for triggering the panel itself and its associated
ancillary products, such as extra loud sirens, magnetic
door holders etc.
The Ei184 is ideal for use in kitchens and garages,
where the use of optical or ionisation alarms would lead
to unwanted nuisance alarms.
The Ei184 is easily installed and comes supplied with all
necessary screw fixings..
E & OE As our policy is one of continuous product development, we reserve the right to alter product details without prior
Operation
The heat alarm will activate the built in sounder
upon detecting heat that reaches 58ºC
The heat alarm will automatically reset itself and
silence the sounder when the temperature drops
below the preset level.
The built in sounder will provide a minimum sound
output of 85dB at 3m
The "Test/Hush" button will silence nuisance alarms
if any
The "Test"/Hush button will simulate the effect of
heat and tests sensor, electronics and horn-use to
check performance at least monthly
