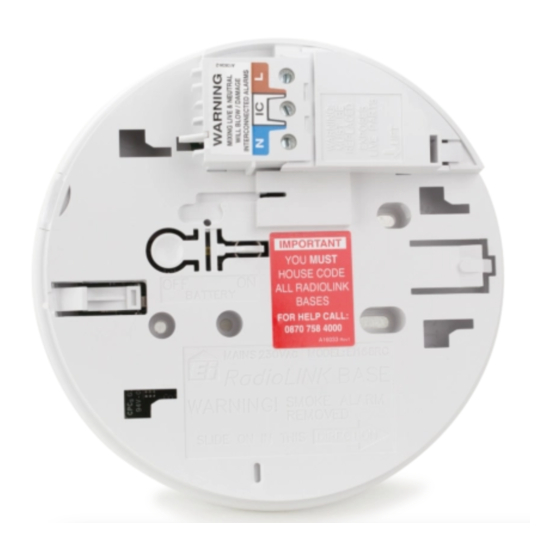

Ei Electronics Ei168RC User Manual

Base with multiple repeater
Hide thumbs Also See for Ei168RC:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual

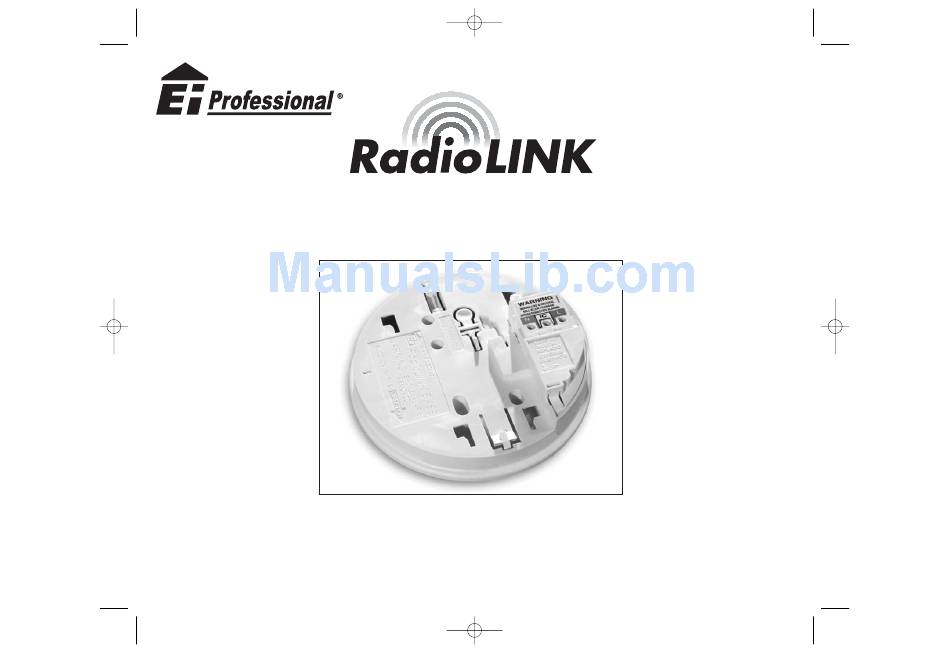

B16014-R0-Ei168RC-U&C
25/7/07
1:13 PM
Page 1
BASE
with Multiple Repeater

User Manual

Contains vital information on the products operation and installation. Read
Model: Ei168RC
and  retain  carefully.  If  you  are  just  installing  this  product  the  manual
MUST be given to the householder.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ei168RC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ei Electronics Ei168RC

Summary of Contents for Ei Electronics Ei168RC

  • Page 1: User Manual

    B16014-R0-Ei168RC-U&C 25/7/07 1:13 PM Page 1 BASE with Multiple Repeater User Manual Contains vital information on the products operation and installation. Read Model: Ei168RC and  retain  carefully.  If  you  are  just  installing  this  product  the  manual MUST be given to the householder.

  • Page 2: Table Of Contents

    B16014-R0-Ei168RC-U&C 25/7/07 1:13 PM Page 2 CONTENTS Page QUICK INSTALLATION GUIDE INTRODUCTION INSTALLATION THE “REPEATER” FUNCTION TROUBLESHOOTING THE RF LINK LIMITATIONS OF RADIO COMMUNICATIONS CHECKING & MAINTAINING YOUR SMOKE ALARM SYSTEM GETTING YOUR RadioLINK BASE SERVICED FIVE YEAR GUARANTEE TECHNICAL SPECIFICATION RadioLINK ACCESSORIES...

  • Page 3: Quick Installation Guide

    Page 3 1. QUICK INSTALLATION GUIDE For use only with Ei Electronics Easi-fit Mains Powered Smoke & Heat Alarms. The Ei168RC RadioLINK Base must be installed by a qualified electrician. 1.1) Install each RadioLINK Base in the centre of the ceiling at least 0.30m from light fittings (as per the smoke/heat alarm...

  • Page 4: Introduction

    B16014-R0-Ei168RC-U&C 25/7/07 1:13 PM Page 4 2. INTRODUCTION The Ei168RC RadioLINK Base transmits a Radio Frequency (RF) alarm signal when the unit attached to it senses fire. When it receives an RF alarm signal from another Ei168RC Base, the attached smoke or heat alarm will sound. It therefore eliminates the need to run long interconnect wires between all the smoke/heat alarms on different floors and in different rooms.

  • Page 5: Installation

    B16014-R0-Ei168RC-U&C 25/7/07 1:13 PM Page 5 user to Locate the triggering alarm both when all units are sounding and when they have previously sounded (memory function useful troubleshooting), Hush any nuisance alarms and Test the system from a remote location. 3.
  • Page 6 B16014-R0-Ei168RC-U&C 25/7/07 1:13 PM Page 6 rotated later if required. If you use only one screw, ensure the base is secure on the ceiling before proceeding further with the installation. Remember to complete the installation by securing with the second screw after the system has been checked).
  • Page 7 B16014-R0-Ei168RC-U&C 25/7/07 1:13 PM Page 7 L: Live - connect to the house wires coloured brown, or marked L. N: Neutral - connect to the house wires coloured blue, or marked N. IC: (Hardwire Interconnect- normally not used except to hardwire interconnect to mains Smoke/Heat Alarms which don't have an Ei168RC RadioLINK Base) The alarm does not need to be earthed.
  • Page 8 B16014-R0-Ei168RC-U&C 25/7/07 1:13 PM Page 8 Figure 5) and manually depress the rechargeable cell "on" switch as shown in Figure 7 and refit the alarm. If there is still a problem the cells may be depleted so leave the unit on mains power for 2 hours to charge and test again.
  • Page 9 B16014-R0-Ei168RC-U&C 25/7/07 1:13 PM Page 9 units. There is a long flash at 10 units to make counting easier and a further long flash at 20 units (e.g. for systems of 12 Ei168RC Bases and 8 other RadioLINK devices such as Ei407 Manual Call Point and/or Ei411H Remote Control Switch).

  • Page 10: The "Repeater" Function

    B16014-R0-Ei168RC-U&C 25/7/07 1:13 PM Page 10 When button testing units in sequence it is important to wait 15 seconds plus a further 6 seconds per repeater between button tests (e.g. for a system with 10 repeaters, time to wait: 15 seconds + 10 x 6 seconds = 75 seconds between button tests). Finally attach the label provided to the distribution board to identify the alarm circuits.
  • Page 11 B16014-R0-Ei168RC-U&C 25/7/07 1:13 PM Page 11 have repeater units around them and should not adversely affect the RF coverage throughout the system. See Figure 8. Any units that may provide the only link between units on the edge of the system and the remaining units should be left as “repeaters”, as illustrated in Figure 9.

  • Page 12: Troubleshooting The Rf Link

    B16014-R0-Ei168RC-U&C 25/7/07 1:13 PM Page 12 5. TROUBLESHOOTING THE RF LINK If when checking the RadioLINK interconnection some of the alarms do not respond to the button test, then: (i) Ensure you have held the test button down for up to 20 seconds and the amber light has come on continuously for 3.5 seconds.

  • Page 13: Limitations Of Radio Communications

    6. LIMITATIONS OF RADIO COMMUNICATIONS Ei Electronics radio communication systems are very reliable and are tested to high standards. However, due to their low transmitting power and limited range (required by regulatory bodies) there are some limitations to be considered: (i) Radio equipment, such as the Ei168RC RadioLINK Base, should be tested regularly - at least weekly.

  • Page 14: Checking & Maintaining Your Smoke Alarm System

    B16014-R0-Ei168RC-U&C 25/7/07 1:13 PM Page 14 (ii) Receivers may be blocked by radio signals occurring on or near their operating frequencies, regardless of the House Coding. The Ei168RC RadioLINK Base has been tested to EN 300 220-1 V1.3.1 (2000- 09) in accordance with the requirements of EN 300 220V1.1.1 (2000-09). These tests are designed to provide reasonable protection against harmful interference in residential installations.
  • Page 15 B16014-R0-Ei168RC-U&C 25/7/07 1:13 PM Page 15 then weekly as below. We particularly stress the need for this check after re- occupation following a holiday etc. (i) Check that the green mains indicator light on the cover of the alarm is on (If it is off, check circuit breakers, fuses and wiring etc.).
  • Page 16 B16014-R0-Ei168RC-U&C 25/7/07 1:13 PM Page 16 RadioLINK Base are switched on, charged, and capable of powering the system. We therefore recommend that the functioning of the mains rechargeable cell back- up is checked directly after installation and then at least yearly as follows: (i) Check that the amber light on the side of the RadioLINK Base is not flashing once every 10 seconds.

  • Page 17: Getting Your Radiolink Base Serviced

    9. FIVE YEAR GUARANTEE Ei Electronics guarantees this RadioLINK Base for five years from date of purchase against any defects that are due to faulty materials or workmanship. This...

  • Page 18: Technical Specification

    B16014-R0-Ei168RC-U&C 25/7/07 1:13 PM Page 18 Do not interfere with the RadioLINK Base or attempt to tamper with it. This will invalidate the guarantee, but more importantly may expose the user to shock or fire hazards. This guarantee is in addition to your statutory rights as a consumer. 10.
  • Page 19 B16014-R0-Ei168RC-U&C 25/7/07 1:13 PM Page 19 RF VISUAL INDICATOR (Amber) On Transmission: Amber LED lights continuously for 1.5 to 3.5 seconds while messages are being transmitted. The amber light also flashes after receipt of an alarm cancel signal Low Battery Indication: Amber light flashes every 10 seconds Size of System: The recommended maximum is 12 Ei168RC units.
  • Page 20 B16014-R0-Ei168RC-U&C 25/7/07 1:13 PM Page 20 Clearing House Codes: The House Codes memorised can be deleted (i.e. the RadioLINK Bases can be uncoded) by pressing and holding the House Code switch on for about 6 seconds. The amber light comes on solidly, then flashes rapidly and stops.

  • Page 21: Radiolink Accessories

    B16014-R0-Ei168RC-U&C 25/7/07 1:13 PM Page 21 a small screwdriver until the amber light starts to flash slowly. Release the switch. The amber light will flash slowly a total of sixteen times and then stop. This indicates that the Repeater mode has been re-activated. 11.
  • Page 22 B16014-R0-Ei168RC-U&C 25/7/07 1:13 PM Page 22 The crossed out wheelie bin symbol that is on your product indicates that this product should not be disposed of via the normal household waste stream. Proper disposal will prevent possible harm to the environment or to human health.
  • Page 23 B16014-R0-Ei168RC-U&C 25/7/07 1:13 PM Page 23...
  • Page 24 25/7/07 1:13 PM Page 24 Aico Ltd Mile End Business Park, Maesbury Road, Oswestry, Shropshire SY10 8NN, U.K. Telephone: 0870 7584000 www.aico.co.uk Ei Electronics Shannon Industrial Estate, Shannon, Co. Clare, Ireland. Telephone: +353 (0)61 471277 www.eielectronics.com P/N B16014 Rev 0...
