- Page 1 USB 2.0 Extender U S E R M A N U A L www.gefen.com...
- Page 2 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. USB 2.0 Extender is a trademark of Gefen Inc. ExtremeUSB is a trademark of Icron Inc.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Operation Notes USB Series Installation USB 2.0 Extender Panel Layout USB 2.0 Extender Function Description Wiring Diagram Link Cable Diagram Check List Troubleshooting Hints Warranty... -
Page 4: Introduction
INTRODUCTION Thank you for purchasing the ex•tend•it USB 2.0 Extender Series. The new USB 2.0 Extender incorporates ExtremeUSB™ technology, which allows users the benefi ts of USB technology beyond the desktop. Extending your USB peripherals (i.e. computer keyboard, mouse or hard drive) up to 150 feet away from the location of your Macintosh or PC computer are done easily with the USB 2.0 Extender. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE USB 2.0 EXTENDER SYSTEM. * The USB 2.0 Extender send and receive were designed to operate on USB 2.0 enabled computers. DO NOT attempt to use this equip ment with any other type of computers. -
Page 6: Usb Series Installation
USB 2.0 EXTENDER SERIES INSTALLATION 1. Place the USB 2.0 R Extender unit close to the USB devices at the re mote end. 2. Connect the USB devices to the USB 2.0 R Extender unit. 3. Connect the power adapter to a suitable AC source wall outlet. 4. -

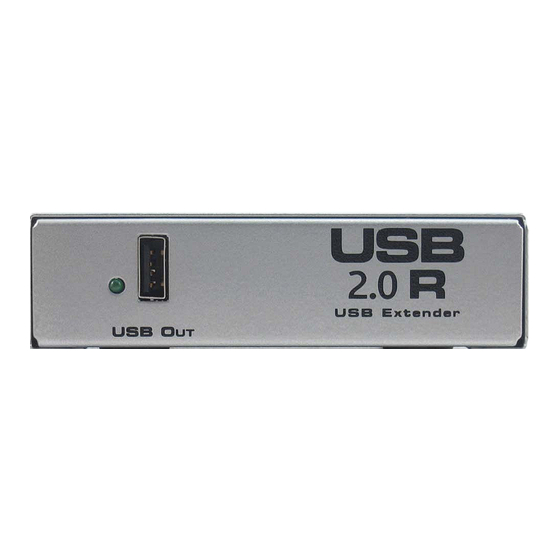

Page 7: Usb 2.0 Extender Panel Layout
USB 2.0 EXTENDER PANELS LAYOUT... -
Page 8: Usb 2.0 Extender Function Description
USB 2.0 EXTENDER FUNCTION DESCRIPTION USB Led - Indicates if a USB device is plugged in. USB Out - Connects to USB Hub, or USB Device. Link LED - Indicates if a link between the USB 2.0 S Extender send and the USB 2.0 R Extender Receive units. -
Page 9: Wiring Diagram
WIRING DIAGRAM... -
Page 10: Link Cable Diagram
LINK CABLE - WIRING DIAGRAM... -
Page 11: Check List
CHECK LIST 1. On the USB 2.0 S Extender send unit, check that the power in di ca tor is GREEN. 2. On the USB 2.0 S Extender send unit, check that the link indicator is GREEN. 3. On the USB 2.0 R Extender receiver unit, check that the power in di ca tor is GREEN. 4. -
Page 12: Troubleshooting Hints
TROUBLESHOOTING HINTS Power Indicator is not lit. -- Make certain the power supply unit is properly con nect ed to the USB 2.0 R Extender unit and to a proper local power sup ply outlet. Link Indicators are Green. -- Make certain that the host computer is operating and responding to commands. If re- quired, reset the com put er. -
Page 13: Warranty
Gefen Inc. warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen Inc. is notifi ed within two (2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
