- Page 1 USB•200 U S E R M A N U A L www.gefen.com...
- Page 2 20600 Nordhoff St. Chatsworth, CA 91311 support@gefen.com www.gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. USB•200 is a trademark of Gefen Inc.
-
Page 3: Table Of Contents
TABLE OF CONTENTS General Information Introduction ... 1 Operation Notes ... 2 USB Series Installation ... 3 USB•200 Panel Layout ... 4 USB•200 Function Description ... 5 Wiring Diagram ... 6 Link Cable Diagram ... 7 Check List ... 8 Troubleshooting Hints ... -
Page 4: Introduction
INTRODUCTION Thank you for purchasing the ex•tend•it USB•200 Series. Incorporating ExtremeUSB, the new USB•200 model allows users the benefi ts of USB technology beyond the desktop, extending your computer keyboard, mouse, trackball, and any USB device up to 330 feet away from the location of your Macintosh or PC computer. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE USB•200 SYSTEM. * The USB•200 send and receive were designed to operate on USB type computers. DO NOT attempt to use this equip ment with any other type computers. * Use the computer's USB port when using a local keyboard that is not extended with the USB•200 sender unit. -
Page 6: Usb Series Installation
USB•200 SERIES INSTALLATION 1. Place the USB•200R unit close to the USB devices at the re mote end. 2. Connect the USB devices to the USB•200R unit. 3. Connect the power adapter to a suitable AC source wall outlet. 4. Connect the power adapter to the USB•200R unit using the supplied cable. -
Page 7: Usb•200 Panel Layout

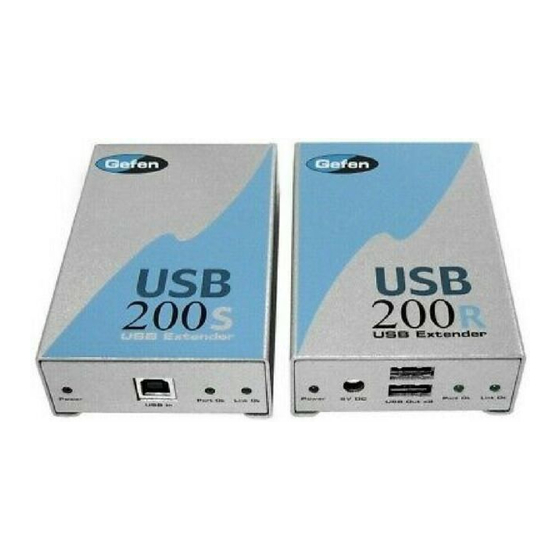

USB•200 PANELS LAYOUT USB•200S USB IN USB•200S&R CAT-5 USB•200R... -
Page 8: Usb•200 Function Description
USB•200 FUNCTION DESCRIPTION Power LED Indicates the unit is receiving power from the computer USB In USB from computer Active Indicates if a USB device is active at the receiver Active Indicates if the USB port on the computer is active Link CAT-5 Modular Jack which connects to the USB•200S send and the USB•200R Receive units... -
Page 9: Wiring Diagram
WIRING DIAGRAM... -
Page 10: Link Cable Diagram
LINK CABLE - WIRING DIAGRAM... -
Page 11: Check List
CHECK LIST 1. On the USB•200S send unit, check that the power in di ca - tor is GREEN. 2. On the USB•200S send unit, check that the link indicator is GREEN. 3. On the USB•200R receiver unit, check that the power in di - ca tor is GREEN. -
Page 12: Troubleshooting Hints
TROUBLESHOOTING HINTS Power Indicator is not lit. -- Make certain the power supply unit is properly con nect ed to the USB•200R unit and the computers USB port is active and securely connected to the USB•200S Link Indicators are Green. -- Make certain that the host computer is operating and re- sponding to commands. -
Page 13: Warranty
If equipment fails because of such defects and Gefen Inc. is notifi ed within two (2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
