- Page 1 USB 2.0 Extender U S E R M A N U A L www.gefen.com...
- Page 2 6265 Variel Avenue Woodland Hills, CA 91367-9897 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. USB 2.0 Extender is a trademark of Gefen Inc.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction Operation Notes USB Series Installation USB 2.0 Extender Panel Layout USB 2.0 Extender Function Description Wiring Diagram Link Cable Diagram Check List Troubleshooting Hints Warranty... -
Page 4: Introduction
The USB 2.0 Extender system consists of two units. The USB 2.0 S Extender sender resides next to the host computer or device, and the USB 2.0 R Extender receiver is linked to the sender via Category-5 (CAT-5) cable and resides at the desired location by the USB device. -
Page 5: Operation Notes
Refer to the wiring diagram on page 7 for wiring instructions. * The length of cable used to connect the USB 2.0 S Extender send unit to the USB 2.0 R Extender receiver unit MUST NOT EXCEED 150 feet. -
Page 6: Usb Series Installation
USB 2.0 EXTENDER SERIES INSTALLATION 1. Place the USB 2.0 R Extender unit close to the USB devices at the re mote end. 2. Connect the USB devices to the USB 2.0 R Extender unit. 3. Connect the power adapter to a suitable AC source wall outlet. -

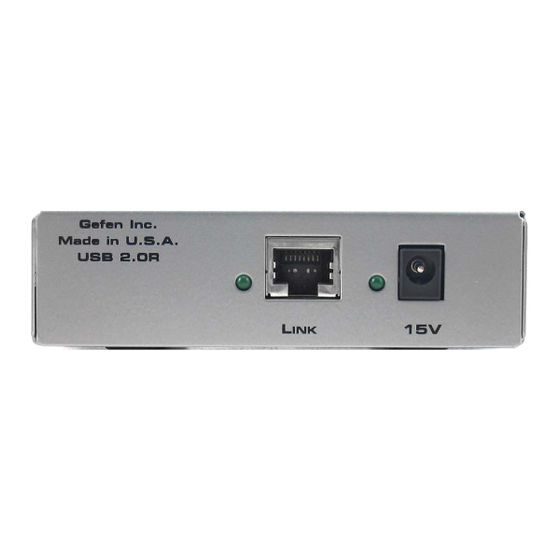

Page 7: Usb 2.0 Extender Panel Layout
USB 2.0 EXTENDER PANELS LAYOUT... -
Page 8: Usb 2.0 Extender Function Description
USB Led - Indicates if a USB device is plugged in. USB Out - Connects to USB Hub, or USB Device. Link LED - Indicates if a link between the USB 2.0 S Extender send and the USB 2.0 R Extender Receive units. -
Page 9: Wiring Diagram
WIRING DIAGRAM... -
Page 10: Link Cable Diagram
LINK CABLE - WIRING DIAGRAM... -
Page 11: Check List
CHECK LIST 1. On the USB 2.0 S Extender send unit, check that the power in di ca tor is GREEN. 2. On the USB 2.0 S Extender send unit, check that the link indicator is GREEN. 3. On the USB 2.0 R Extender receiver unit, check that the power in di ca tor is GREEN. -
Page 12: Troubleshooting Hints
TROUBLESHOOTING HINTS Power Indicator is not lit. -- Make certain the power supply unit is properly con nect ed to the USB 2.0 R Extender unit and to a proper local power sup ply outlet. Link Indicators are Green. -- Make certain that the host computer is operating and responding to commands. If re- quired, reset the com put er. -
Page 13: Warranty
Gefen, Inc. warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen, Inc. is notifi ed within one (1) year from the date of shipment, Gefen, Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
