Environmental Module Status; Chassis Status - Cabletron Systems SmartSwitch 6000 Management Manual

MMAC-Plus Management Views
Click here to display
the Power window
for the Module.
Click here to display
the Temperature
window for the
Module.
It also provides access to the Module Power and Module Temperature windows,
which let you check the power supply status and operating temperature for each
module installed in your MMAC-Plus Chassis.
The following sections detail the Environmental Status view and associated
Module Power and Module Temperature windows.

Environmental Module Status

The Environmental Module Status portion of the Environmental Status view
displays the same information as it does in the Chassis view. Refer to pages 3-4
and 3-5 for information on the Þelds in this portion of the window.

Chassis Status

The Chassis Status portion of the Environmental Status view displays information
on the fan systemÕs operation, on utilization of the power subsystem, on chassis
power redundancy, and on UPS/Battery status.
3-8

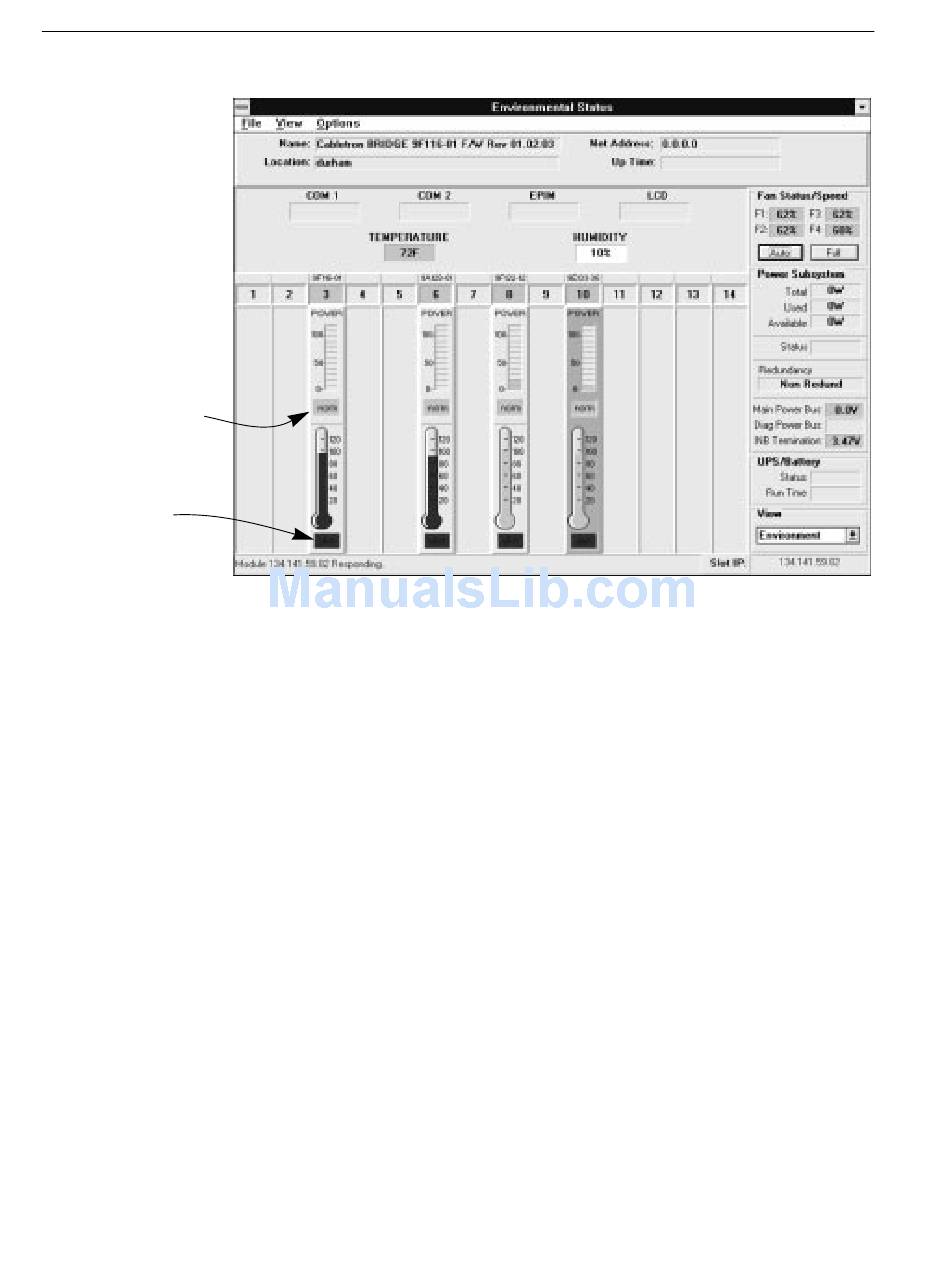

Figure 3-3. The Environmental Status View
The Environmental Status View
