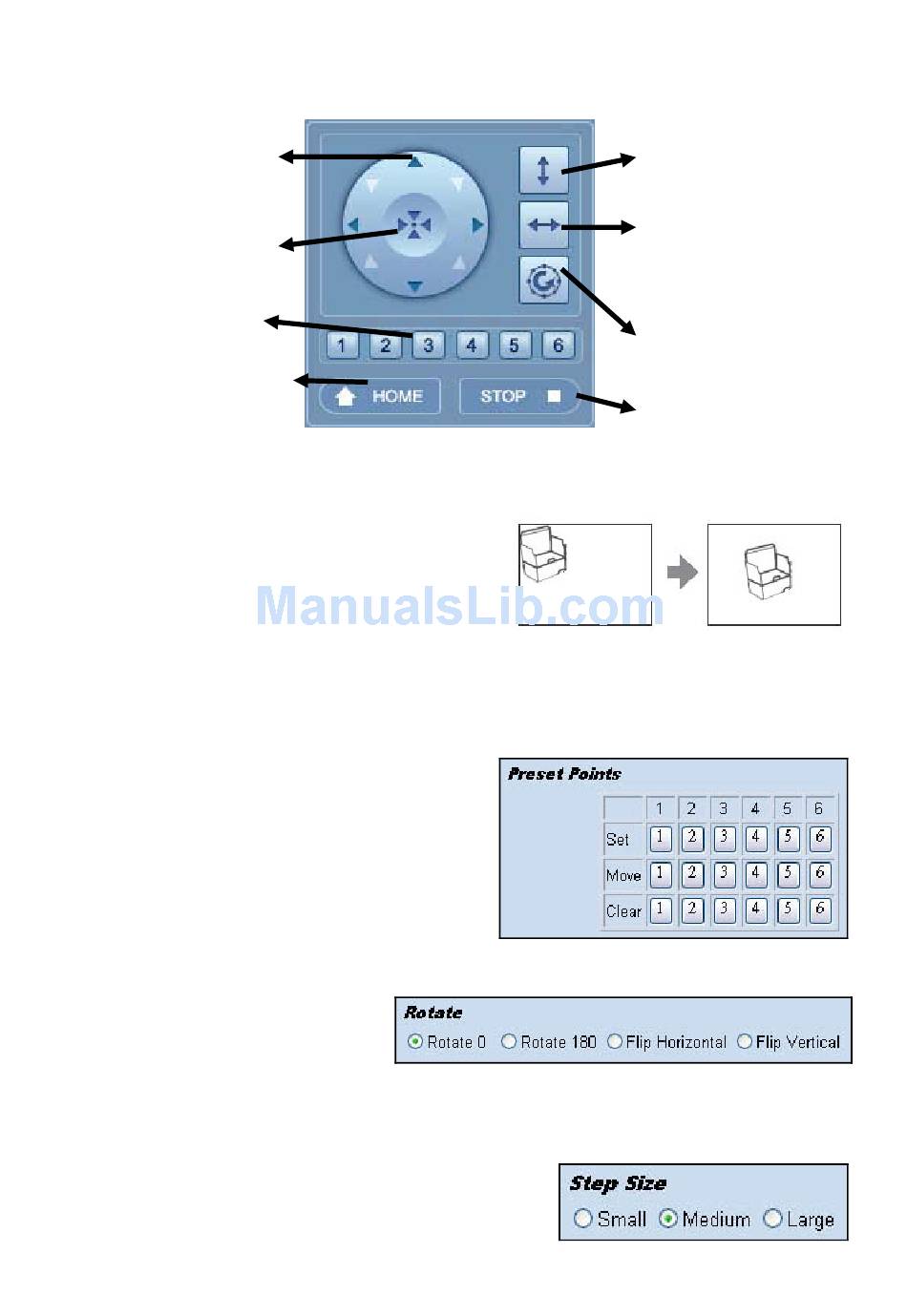

16. Pan and Tilt Control

9 way moving control,
Click the arrow of the
direction that you want to
move the camera to.
Back to camera center
Position presetting : 6
position
Back to camera center,
moving to camera pan tilt
limit than back to center

16-1. Control the camera in the monitor window

Click on the monitor image, and the camera
moves so that the clicked portion goes to
the center of the display
16-2. Position points presetting
Click the preset position number button from the preset points. than, the camera will move
to the preset position that you have stored in memory at Set section.
1. Administrator account login
2. Configuration page
3. Pan/Tilt page
Set button: Position setting
Move button: Camera moving to position
Clean button: Clean position setup
16-3. Image Rotate setting
1. Administrator account login
2. Configuration page
3. Pan/Tilt page
16-4. Camera moving step size
1. Administrator account login
2. Configuration page
3. Pan/Tilt page
Default step size is "Medium"
34
Auto Tilt scan. One
time scan than back to
camera center
Auto Pan scan. One
time scan than back to
camera center
limit than back to
Preset position scan.
One time scan than
back to camera center
Stop all moving
