3-2. On the LAN with DHCP Server

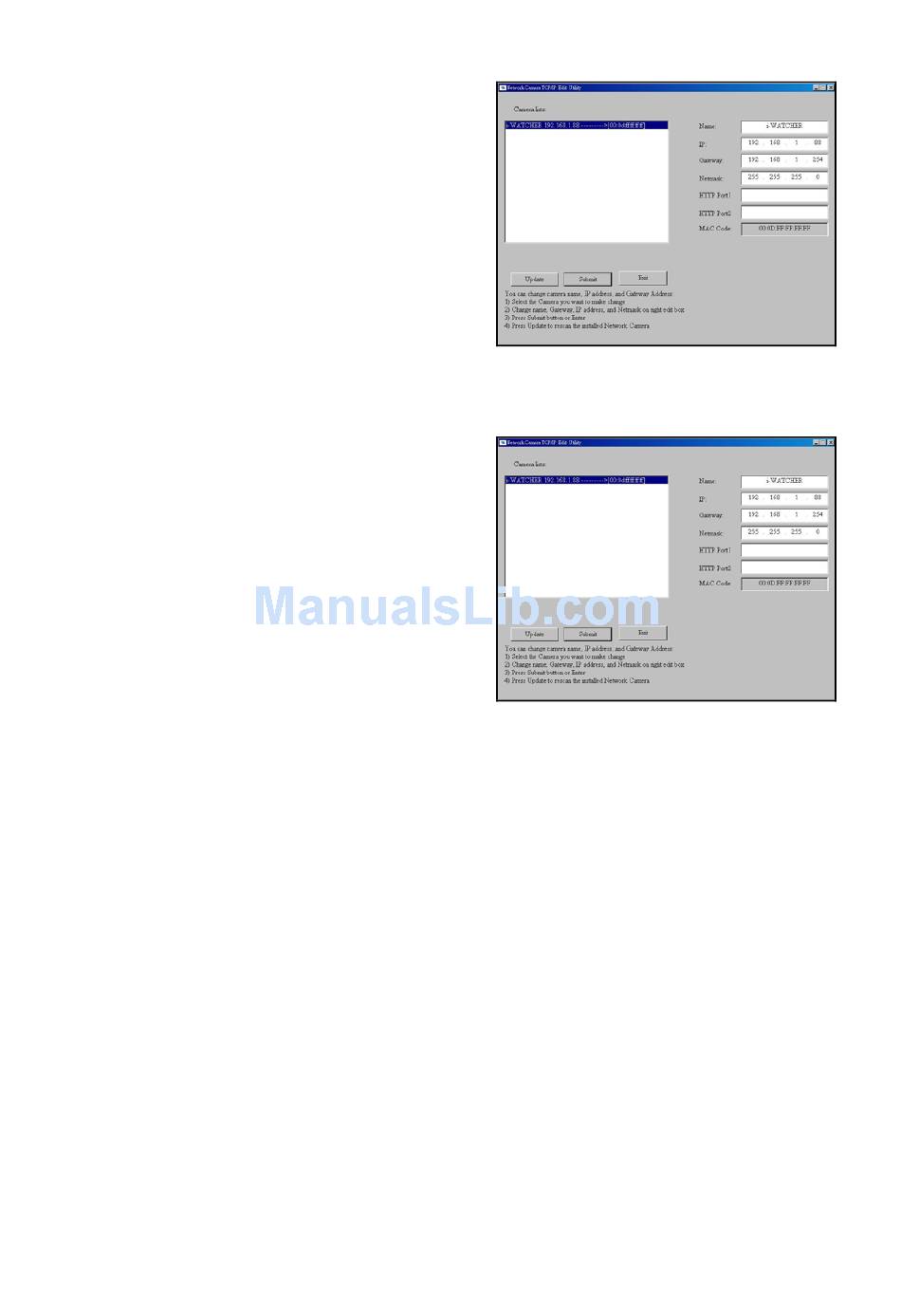

1. Use IPEDIT.EXE to find the installed
i-WATCHER.
2. Select this i-WATCHER in the Camera
Lists Window.
3. The default configurations will be shown in
the right window.
4. Update the Camera's IP status.

3-3. On the LAN without DHCP Server

1. Use IPEDIT.exe to find the installed
i-WATCHER.
2. The i-WATCHER without IP allocated
by DHCP will have a default IP Address
of 169.254.xx.xx.
3. Select this i-WATCHER in the Camera
Lists Window.
4. The default configurations will be shown in
the right window.
1. Update the Camera Name (Fixed IP)
2. Update the Gateway Address (192.168.1.254).
3. Update the IP address of this IP-Cam (192.168.1.xx).
4. Update the Network Mask (255.255.255.0).
5. Http Port1 type in 80 and press 'Submit' it.
After the button 'Submit' is clicked, the IP information of this i-WATCHER will be updated.
Access this i-WATCHER by this IP address; on the Configuration -> Network, the Fixed IP
address was assigned.

3-4. On the LAN use with the ADSL Router

If the i-WATCHER was installed on the ADSL router, the i-WATCHER will dynamically be
allocated an IP address from the DHCP server. However, if the i-WATCHER ants to be
accessed from the WAN, the i-WATCHER IP address needs to be setup as fixed IP. Same
goes for the Virtual Server function of ADSL router, which needs to be setup as well.
1. Setup the i-WATCHER as Fixed IP, such as 192.168.0.49.
2. Enter the administrator page of +ADSL router. (Use sonnet ASDL router as an
example).
3. Enter the Virtual Server Page.
14
