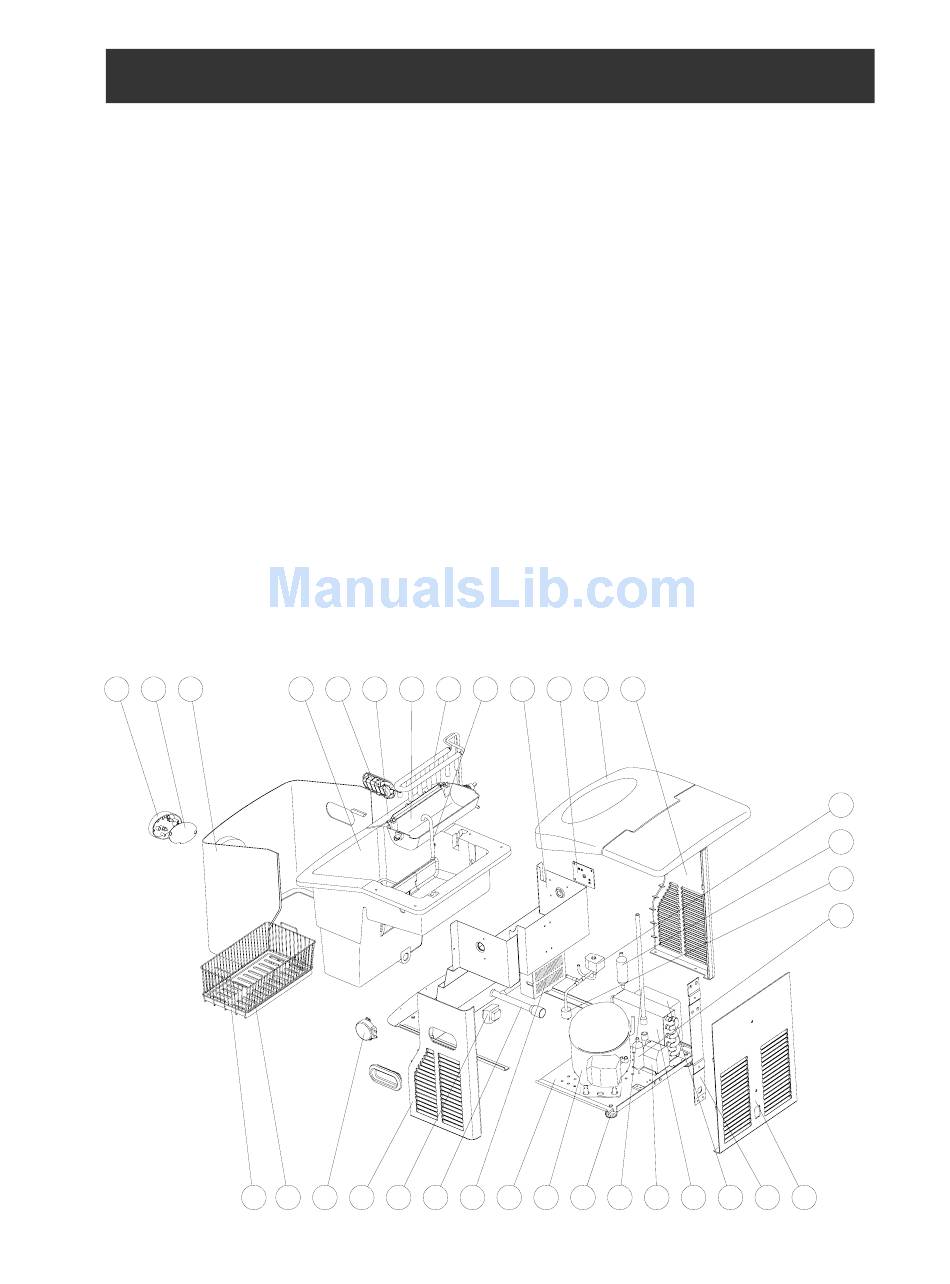

PARTS BREAKDOWN DIAGRAM

1. Control Panel
2. Display PCB
3. Panel
4. Inner Liner
5. Handle
6. Ice Shovel
7. Ice Case
8. Evaporator
9. Steel Water Supply Pipe
10. Steel Shell
11. Component Of Switch
12. Cover
1
2 3
33 32
13. Left Board
14. Filter
15. Solenoid Valve
16. Pressure Controller
17. Container
Refrigerant
18. Back Board
19. Strengthen Plate
20. Cooling Fan
21. Condenser
22. Water Pump
23. Soft Water Supply Pipe
4 5 6 7 8
31 30 29 28 27
24. Adjustable Foot
25. Compressor
26. Underpan
27. Control Box
Of 28. Soft Drain Pipe
29. Transformer
30. Right Board
31. Driving Motor
32. Ice Basket
33. Basket Bottomplate
10 11 12 13
9
26 25 24
23 22
8
14
15
16
17
21 20 19 18
