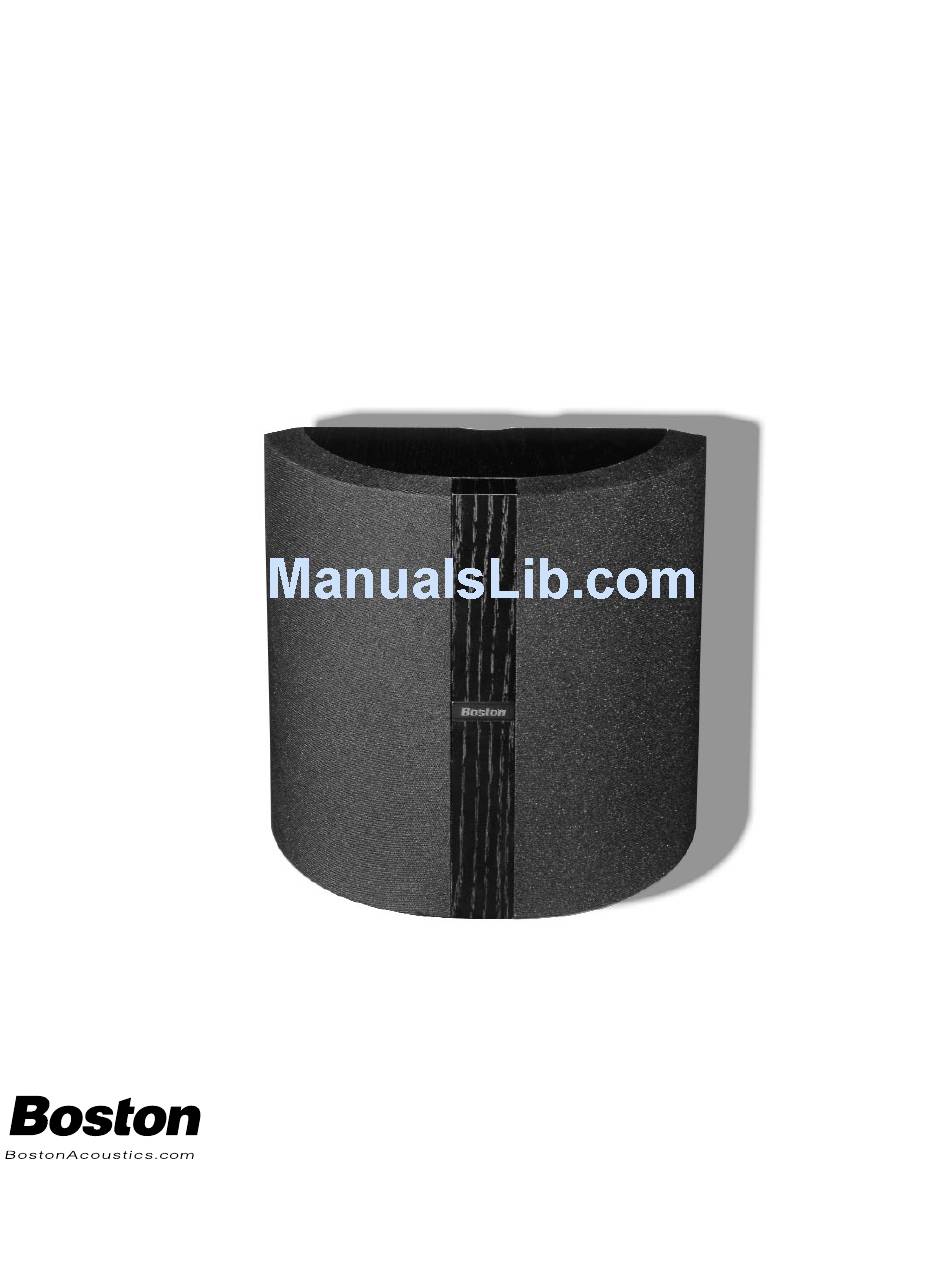

- Page 1 VR-M/EX Wide Dispersion Home Theater Back Surround Speaker...
- Page 2 Specifications Frequency Response (±3dB) 110–20,000Hz Recommended Amplifier Power 15–200 watts Nominal Impedance 8 ohms Sensitivity [1 watt (2.83v) at 1m] 90dB Bass Unit Dual 5 ⁄ " (135mm) copolymer High-Frequency Driver Dual 1" (25mm) VR aluminum dome with AMD Crossover Frequency 2500Hz Dimensions (HxWxD) 11 x 11...
-
Page 3: Room Placement
Room Placement Room placement is one of the most important factors contributing to the quality of home theater sound. Take a few minutes to place your speaker correctly to ensure it will sound their best. Place one or more VR-M/EX speakers on the back wall of the listening area. - Page 4 Wall or Ceiling Mounting Your VR-M/EX Speaker The VR-M/EX is designed to be mounted directly onto a wall or ceiling. First attach the four supplied self-adhesive felt pads, one on the back of each corner of the speaker. Then attach the bracket to the wall or ceiling and slide the speaker on to the bracket as shown below and on the two next pages.
- Page 5 MOUNTING 1. Mark off the two bracket mounting holes using the VR-M/EX Mounting 2" Template provided. If running wires (51mm) behind the wall, then also mark off a " ⁄ (12mm) hole located at 2 " (63mm) ⁄ below the lower bracket hole. This hole is also positioned on the template.
- Page 6 MOUNTING (continued) 3. Level the bracket and tighten the screws. Connect the wires to the terminals and hang the speaker on the brackets. Level bracket before hanging speaker Listening Levels and Power Handling IMPORTANT: Adjusting Listening Volume. To obtain the best home theater effect, balance the sound level of each speaker.
-
Page 7: Limited Warranty
Limited Warranty For five years from the date of purchase, Boston Acoustics will repair for the original owner any defect in materials or workmanship that occurs in normal use of the speaker system, without charge for parts and labor. Your responsibilities are to use the system according to the instructions supplied, to provide safe and secure transportation to an authorized Boston Acoustics service representative and to present proof of purchase in the form of your sales slip when requesting service. - Page 8 Boston and Boston Acoustics are registered trademarks of Boston Acoustics, Inc. Dolby and Dolby Pro Logic are registered trademarks of Dolby Laboratories Licensing Corporation. Specifications subject to change without notice. 300 Jubilee Drive Peabody, MA 01960 © 2000 Boston Acoustics, Inc.
