Boston Acoustics LYNNFIELD VR-M50 Specification Sheet

LYNNFIELD VR-M50 AND VR-M60
Reference Quality Monitor Loudspeakers

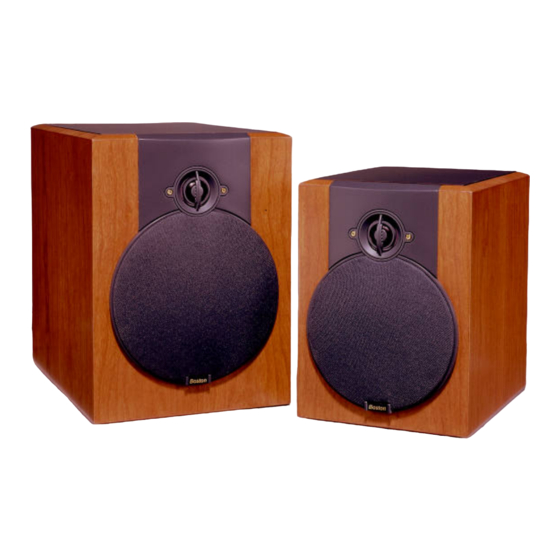

The VR-M50 and VR-M60 are compact, monitor-quality
speakers designed to deliver accurate, natural repro-
duction with an elegant appearance.
Special care has been taken to optimize the speakers'
components for maximum performance: The bass units
utilize die-cast aluminum baskets which keep the criti-
cal moving parts in precise alignment for exceptionally
accurate response. The cast baskets also conduct heat
away from the voice coil, increasing power handling and
maximizing output. The woofer cones and surround ge-
ometry were designed and optimized with Boston's
Finite Element Analysis (FEA) computer modeling tech-
nology, for strong bass and smooth midrange.
High frequencies are handled by Boston's exclusive
1-inch (25mm) aluminum tweeter with Amplitude Modi-
fication Device (AMD). This remarkable driver produces
an extremely smooth, flat response well beyond the
audible range. A die-cast aluminum heatsink attached
to the tweeter's backplate dissipates heat quickly and
efficiently, assuring cool, trouble-free operation, even at
very high power levels.
The drivers are positioned very closely to each other for
smooth, uniform radiation in both the horizontal and
vertical planes. The cabinet features heavy internal "win-
dow-pane" bracing for strength and rigidity, minimizing
cabinet resonances. The rear-mounted vent is smoothly
flared at both ends to reduce port turbulence, and both
speakers feature dual gold-plated binding posts, allow-
ing bi-wiring or bi-amping with virtually any cable.
All the drive units are designed at Boston's Peabody,
Massachusetts facility using state-of-the-art computer-
design programs and are built in Boston on proprietary
production lines to an incredible 1dB—perhaps the
industry's tightest tolerance. Both systems feature
®
MagnaGuard magnetic shielding for compatibility with
home theater systems.
