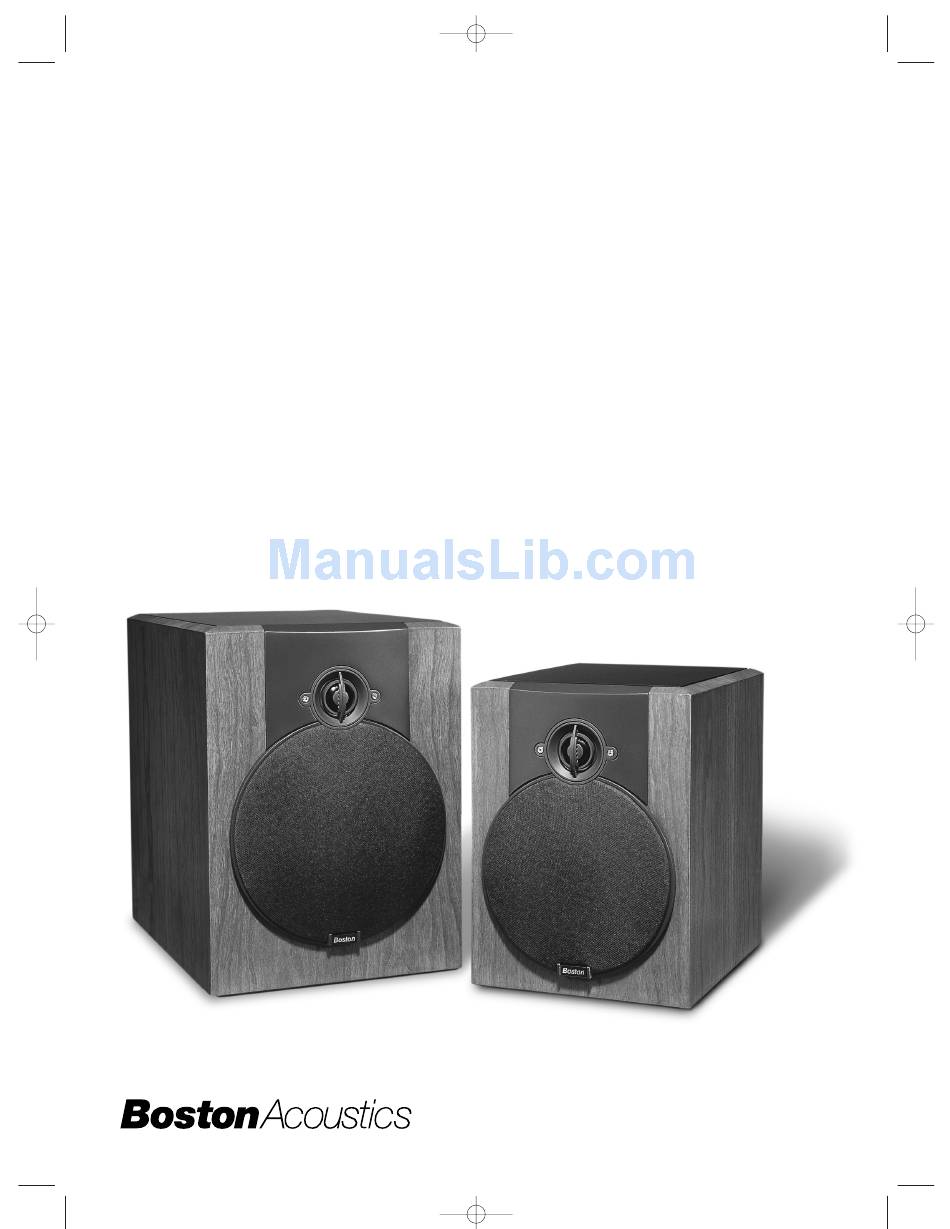

VRM50/60 mnl 6/23/99 ƒ
9/9/99
12:03 PM
Page 1
VR-M50
VR-M60
Lynnfield VR
Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lynnfield VR-M50 and is the answer not in the manual?

Questions and answers

Summary of Contents for Boston Acoustics Lynnfield VR-M50

  • Page 1 VRM50/60 mnl 6/23/99 ƒ 9/9/99 12:03 PM Page 1 VR-M50 VR-M60 Lynnfield VR ™ Series...

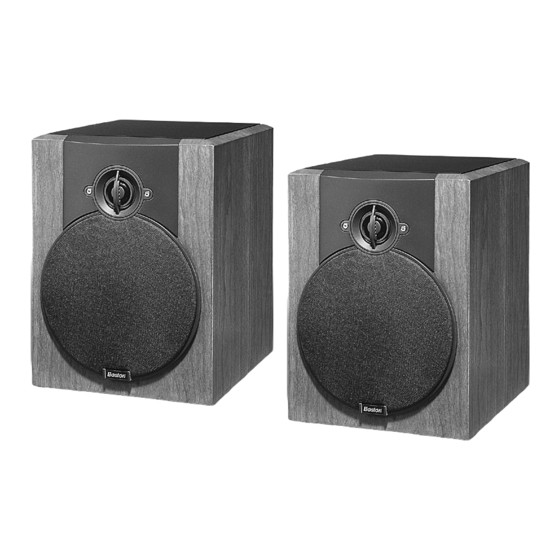

  • Page 2 Weight Finish Description The VR-M50 and VR-M60 are compact, monitor-quality speakers designed to deliver accurate, natural reproduction, with an elegant appearance. Special care has been taken to optimize the speakers’ components for maximum performance: The bass units uti- lize die-cast aluminum baskets that keep the critical moving parts in precise alignment for exceptionally accurate response.
  • Page 3: How To Connect Your Speakers

    VRM50/60 mnl 6/23/99 ƒ 9/9/99 12:03 PM How to Connect Your Speakers Correctly wiring your speakers is important for achieving the best sound quality. Wiring should take just a few minutes, but it’s important to do it carefully, since incorrect wiring (such as reversed connections) can result in a poor soundstage and poor bass.
  • Page 4 VRM50/60 mnl 6/23/99 ƒ 9/9/99 12:03 PM Page 4 Basic Hookup 1. Connect the speaker terminals to the amplifier speaker outputs. 2. Make sure the speaker terminal jumper straps are in place on the back of the speaker. 3. When making all connections, be sure to connect + to + (red) and –...
  • Page 5 VRM50/60 mnl 6/23/99 ƒ 9/9/99 12:03 PM Page 5 Bi-amplification Bi-amplification requires using separate amplifiers dedicated to high and low frequencies. Using more than one amplifier can enhance the dynamic performance of your system. “Splitting the load” between two amplifiers lets each amplifier work less hard, increasing the available current to the drive units.
  • Page 6 9/9/99 12:03 PM Page 6 Connecting the VR-M50 or VR-M60 to Your Amplifier or Receiver Checking the Speaker Connections It is important that your speakers are hooked up with similar polarity or “in phase.” A simple listening test will tell you if your speakers are connected properly.
  • Page 7 finish. Mounting the Speaker on a Stand The VR-M50 and VR-M60 have a 1/4"-20 threaded insert on the bottom panel, so they can be securely bolted to any aftermarket speaker stand that offers this feature. Bolting the speaker to the stand reduces unwanted vibration and reduces the possibility of the speaker accidentally falling off the stand.
  • Page 8: Limited Warranty

    12:03 PM Limited Warranty For five years from the date of purchase, Boston Acoustics will repair for the original owner any defect in materials or workmanship that occurs in normal use of the speakers, without charge for parts and labor.

This manual is also suitable for:

Lynnfield vr-m60
