Summary of Contents for Boston Acoustics Lynnfield VR965

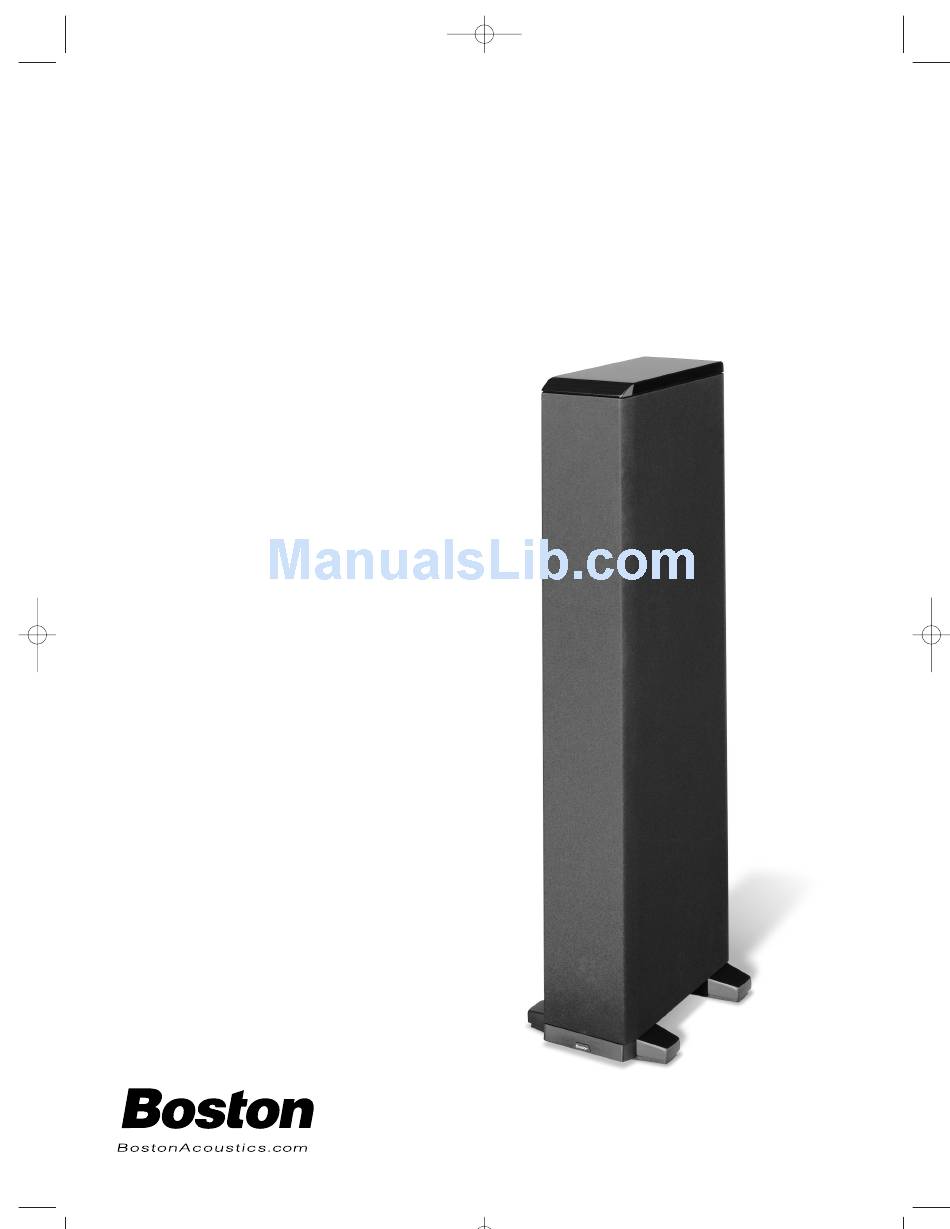

- Page 1 965/75 MANUAL 11/99rev1 1/14/00 12:04 PM Page 1 VR965 VR975 Lynnfield VR Series ™...
-
Page 2: Important Safety Instructions
18. Servicing: The user should not attempt to service the product beyond what is described in the operating instructions. For all other ser- vicing, consult your dealer or contact Boston Acoustics. 19. Overloading: Do not overload wall outlets, extension cords, or inte- gral convenience receptacles as this can result in a risk of fire or electric shock. -
Page 3: Regulatory Compliance Statements
Konformitätserklärung Déclaration de Conformité Declaración de Conformidad Verklaring de Overeenstemming Dichiarazione di Conformità We/Wir/Nous/WIJ/Noi: Boston Acoustics, Inc. 300 Jubilee Drive, Peabody, MA 01960 U.S.A. declare under sole responsibility that the product VR965/975 to which this declaration relates, is in conformity with the following standards or other normative documents: auf das sich diese Erklärung... - Page 4 965/75 MANUAL 11/99rev1 1/14/00 vo(s): waarnaar deze verklaring verwijst, aan de volende noem(en) of richtlijn(en) beantwo- ordt: a cui si riferisce questa dichiarazione è conforme alla/e sehuente/i norma/o docu- mento/i normativo/i: European Users: This equipment has been tested and found to comply with the following European directive: (i) EMC Directive 89/336/EEC amending directive 92/31/EEC 93/68 EEC as per...
-
Page 5: Specifications
Weight Finish Description The Lynnfield VR965 and VR975 deliver accurate, wide-range performance that conveys all the power and impact of the most demanding program material. These floorstanding speakers combine integrated powered subwoofers with Boston-built midranges and tweeters into sleek cabinets that blend gracefully in any listening room. -
Page 6: How To Connect Your Speakers
We recommend 18-gauge wire or thicker for runs up to 25 feet (8 meters) and 16-gauge wire or thicker for longer runs. Separate the first few inches of the wire conductors. Strip off 1/2-inch (12mm) of insulation from the ends of each speaker wire to expose the two conductors and tightly twist the wire strands. -
Page 7: Pro Logic
Connecting the VR965 or VR975 to Stereo or Dolby For stereo or Dolby Pro Logic systems, the easiest method is to use speaker wire connections as shown. You may also use the “sub out” connection from your receiver to the input on the speak- er marked “sub in,”... - Page 8 If you do not wish to run RCA cables to your speakers, you may configure your electronics to send the LFE signal along with the left and right channel signal using the speaker wire connec- tion (see illustration on page 7). Select “subwoofer-no” from your receiver’s set-up menu. This sends the LFE signal to the main left and right speakers.
- Page 9 While listening to music with your amplifier set to MONO, reverse the speaker wire connections at one speaker only. You’ll hear a dramatic change in sound. The connection that yields the fuller bass and louder sound is correct.
- Page 10 If a speaker must be placed near a corner, move it away from the wall directly behind it to preserve its natural tonal balance. Use the bass/sub control to obtain the best bal- ance in your room.
-
Page 11: Listening Levels And Power Handling
(woofer, midrange, tweeter) of the VR965 or VR975, without charge for parts and labor. For one year from the date of purchase, Boston Acoustics will repair for the original owner any defect in materials or workmanship that occurs in the amplifier of the VR965 or VR975, without charge for parts and labor. - Page 12 VR, BassTrac, and DCD are trademarks and MagnaGuard, Boston, and Boston Acoustics are registered trademarks of Boston Acoustics, Inc. Dolby and Pro Logic are registered trademarks of Dolby Laboratories Licensing Corporation. © 2000 Boston Acoustics, Inc. All rights reserved. Specifications subject to change without notice. 42-001013-1...
